General Description
›
Component
›
Reduction Gear
Reduction Gear

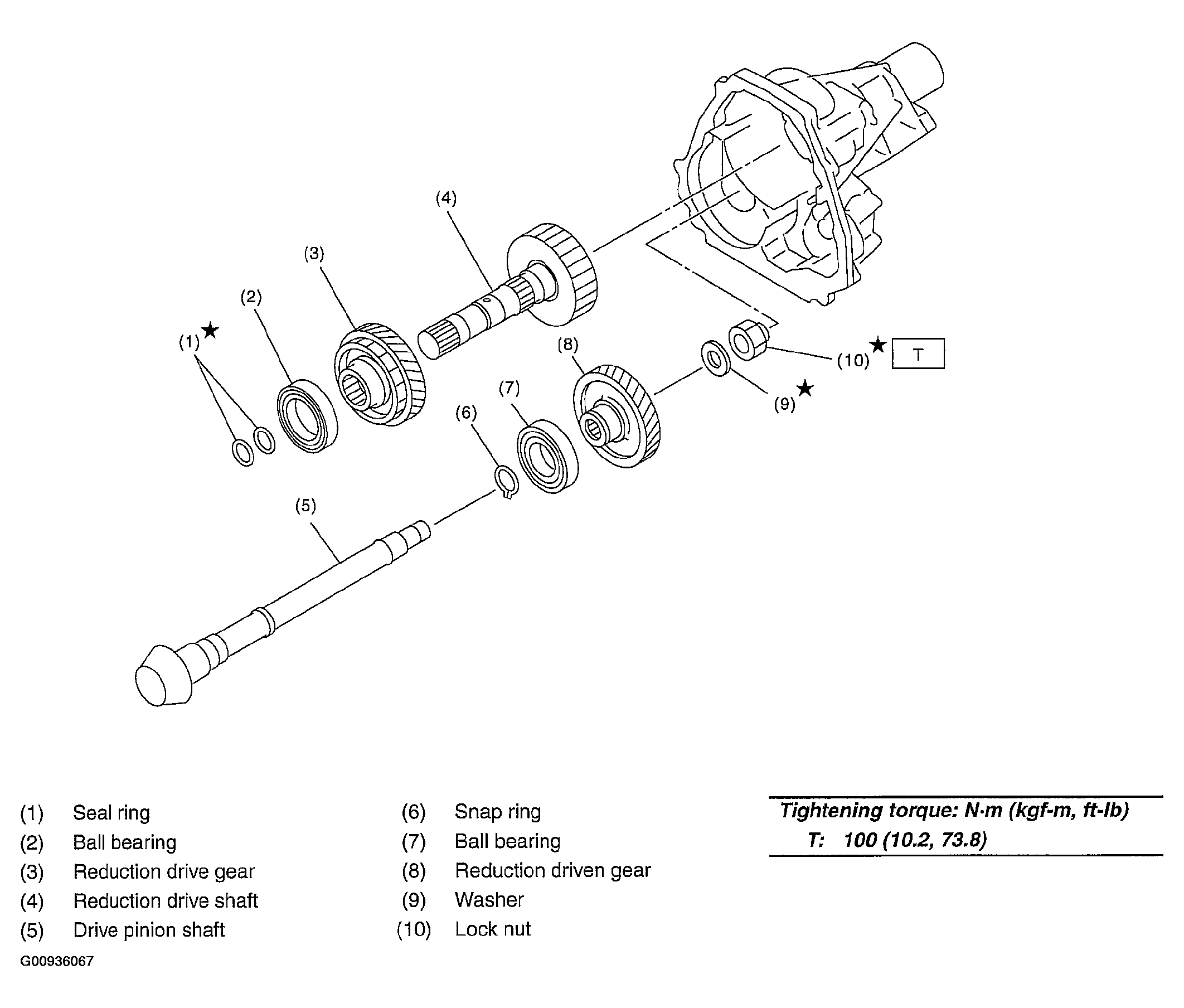

Fig 1: Education Gear Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
