Transfer Clutch: Disassembly

Remove the seal ring.

Fig 1: Identifying Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
Using a press and ST, remove the ball bearing.
1. ST 498077600 REMOVER
Fig 2: Identifying Ball Bearing
Courtesy of SUBARU OF AMERICA, INC.
Using a flat tip screwdriver, remove the snap ring, and take out the pressure plate, retaining plate, drive plates and driven plates.

Fig 3: Identifying Snap Ring, And Take Out Pressure Plate, Retaining Plate, Drive Plates And Driven Plates
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring with ST1, ST2 and ST3, and take out the return spring and transfer clutch piston seal.
ST1 399893600 PLIERS

ST2 398673600 COMPRESSOR

ST3 398623600 SEAT

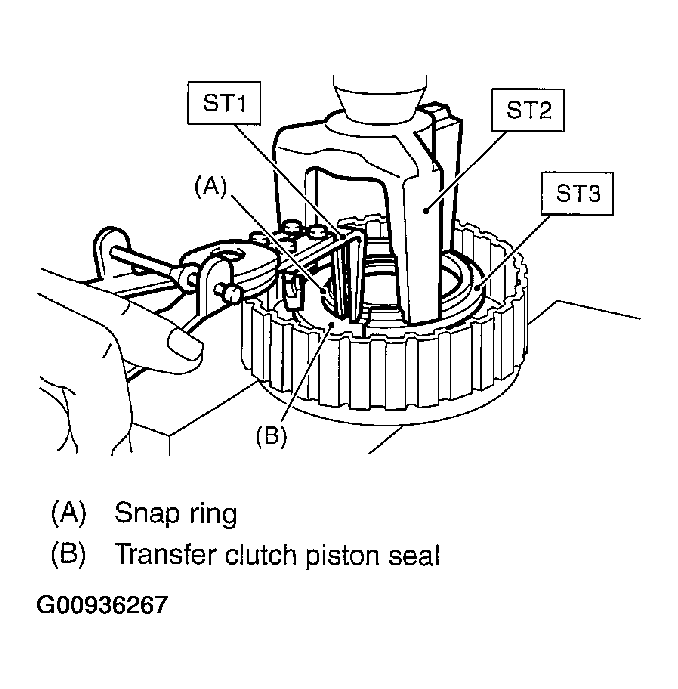

Fig 4: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply compressed air to the rear drive shaft to remove the transfer clutch piston from rear drive shaft.

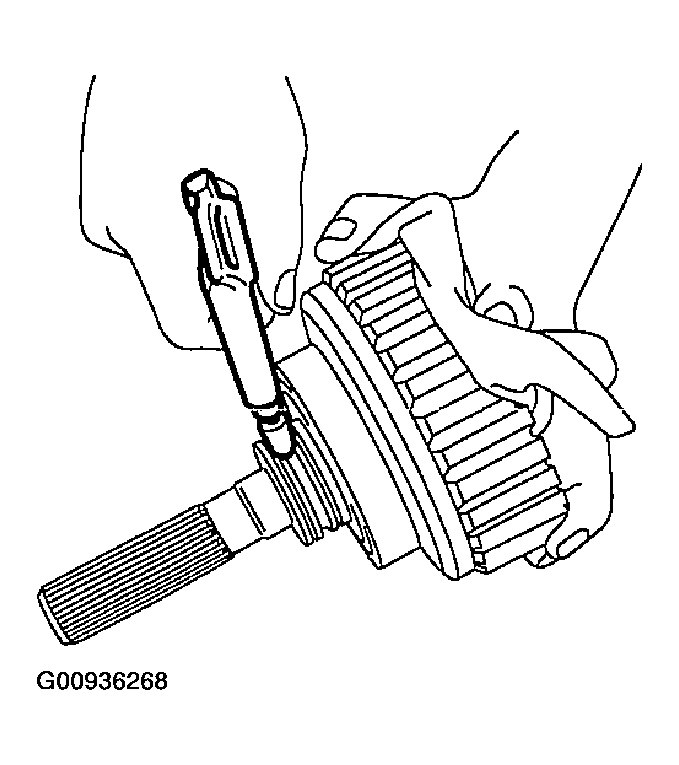

Fig 5: Applying Compressed Air To Rear Drive Shaft To Identifying Transfer Clutch Piston From Rear Drive Shaft
Courtesy of SUBARU OF AMERICA, INC.
