Pitching Stopper

Install the pitching stopper.
Tightening torque:
1. T1: 50 N.m (5.1 kgf-m, 37 ft-lb)
2. T2: 58 N.m (5.9 kgf-m, 43 ft-lb)

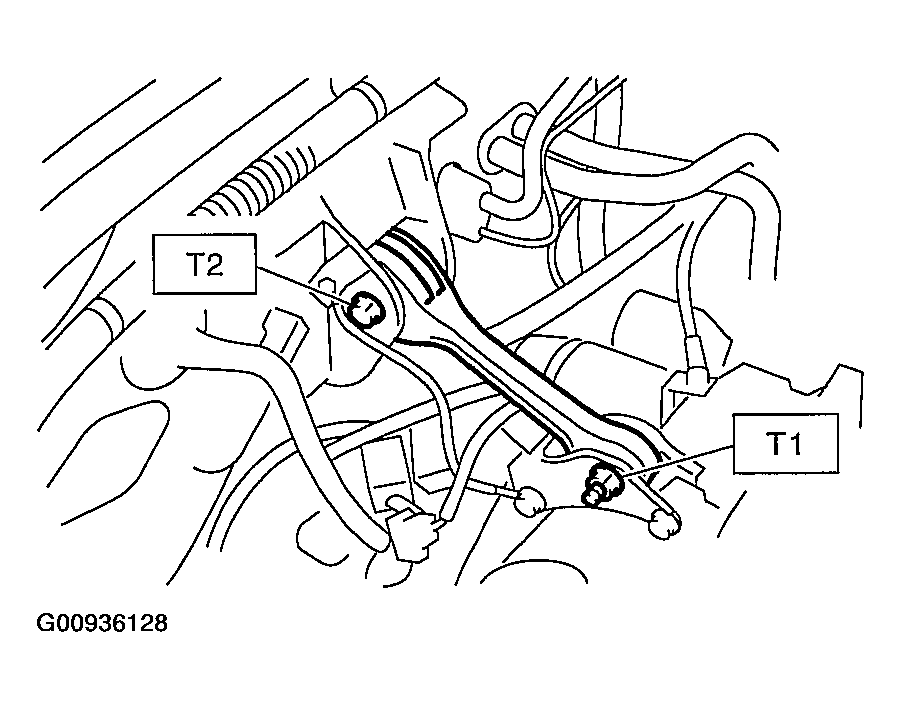

Fig 1: Install Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case. (Non-turbo model)
< Ref. to INSTALLATION , Air Cleaner Case . >
Install the intercooler. (Turbo model)
< Ref. to INSTALLATION , Intercooler . >
