Power Door Lock
›
Schematic Drawings
Schematic Drawings

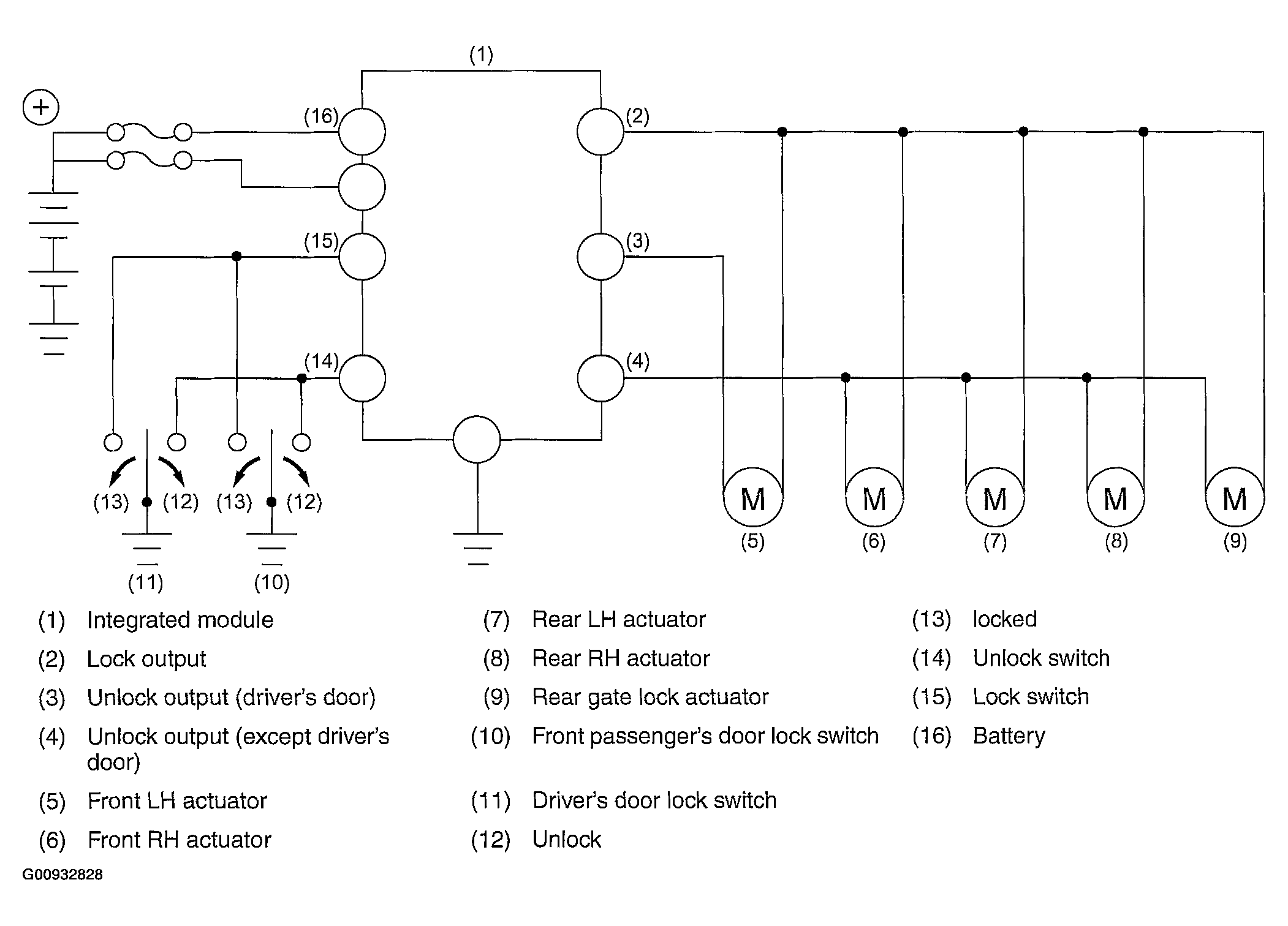

Fig 1: Identifying Power Door Lock Schematic Drawings
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
