Diagnostics for Engine Starting Failure
›
Control Module Power Supply And Ground Line
›
Diagnostic Procedures:
Diagnostic Procedures:

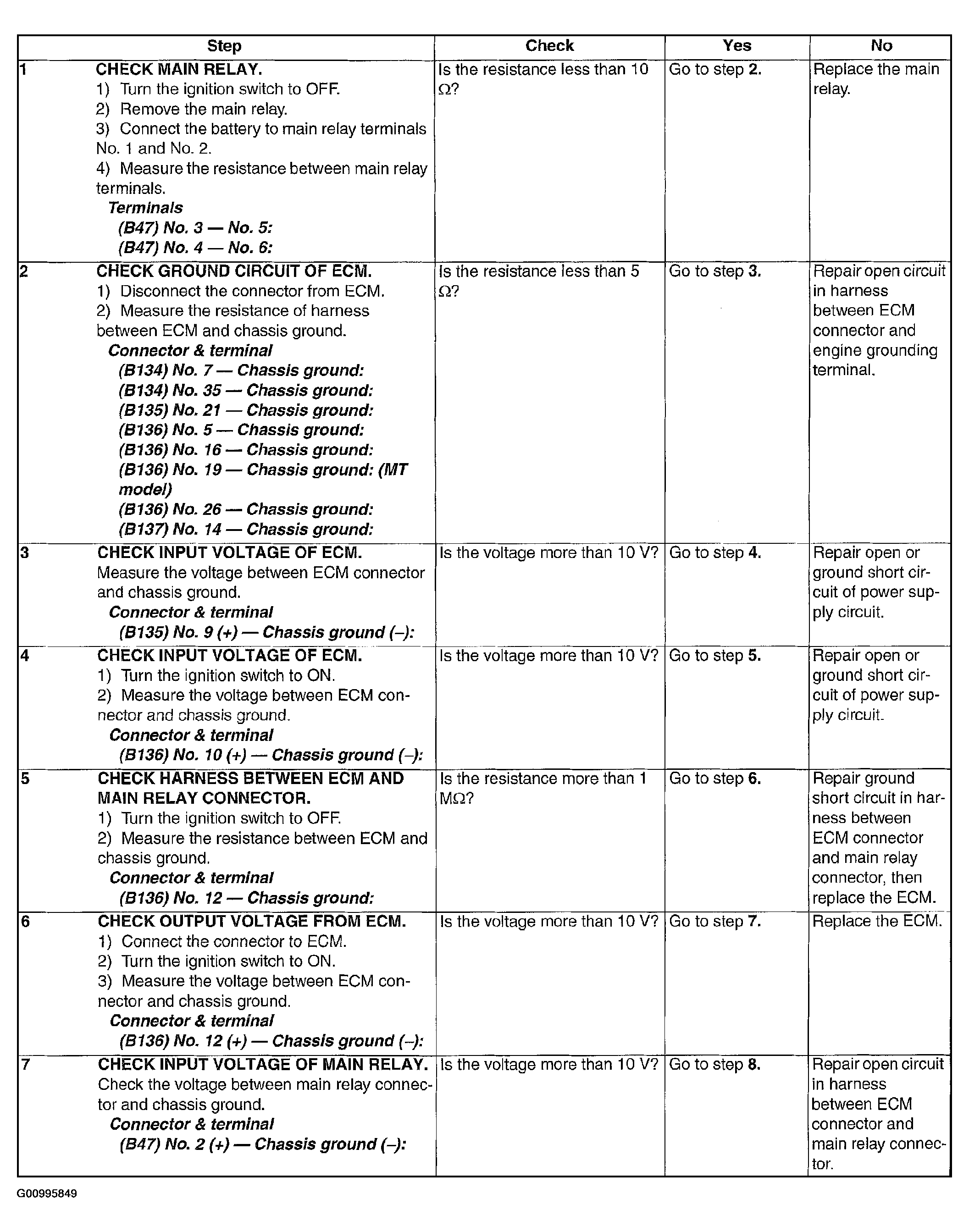

Fig 1: Control Module Power Supply & Ground Line Diagnostic Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

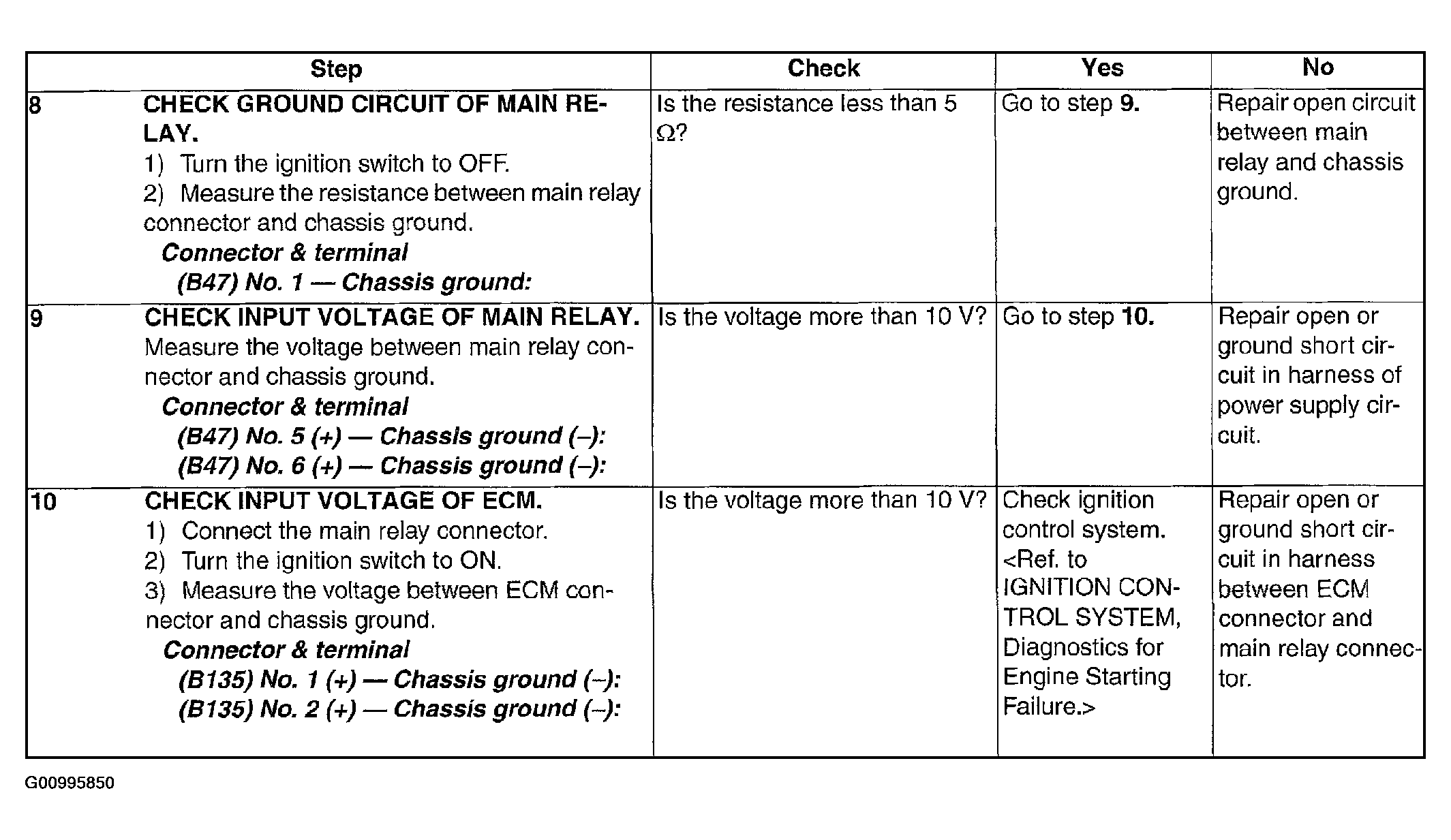

Fig 2: Control Module Power Supply & Ground Line Diagnostic Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
