Basic Inspection

Perform the following inspection procedures and repair or replace defective parts.

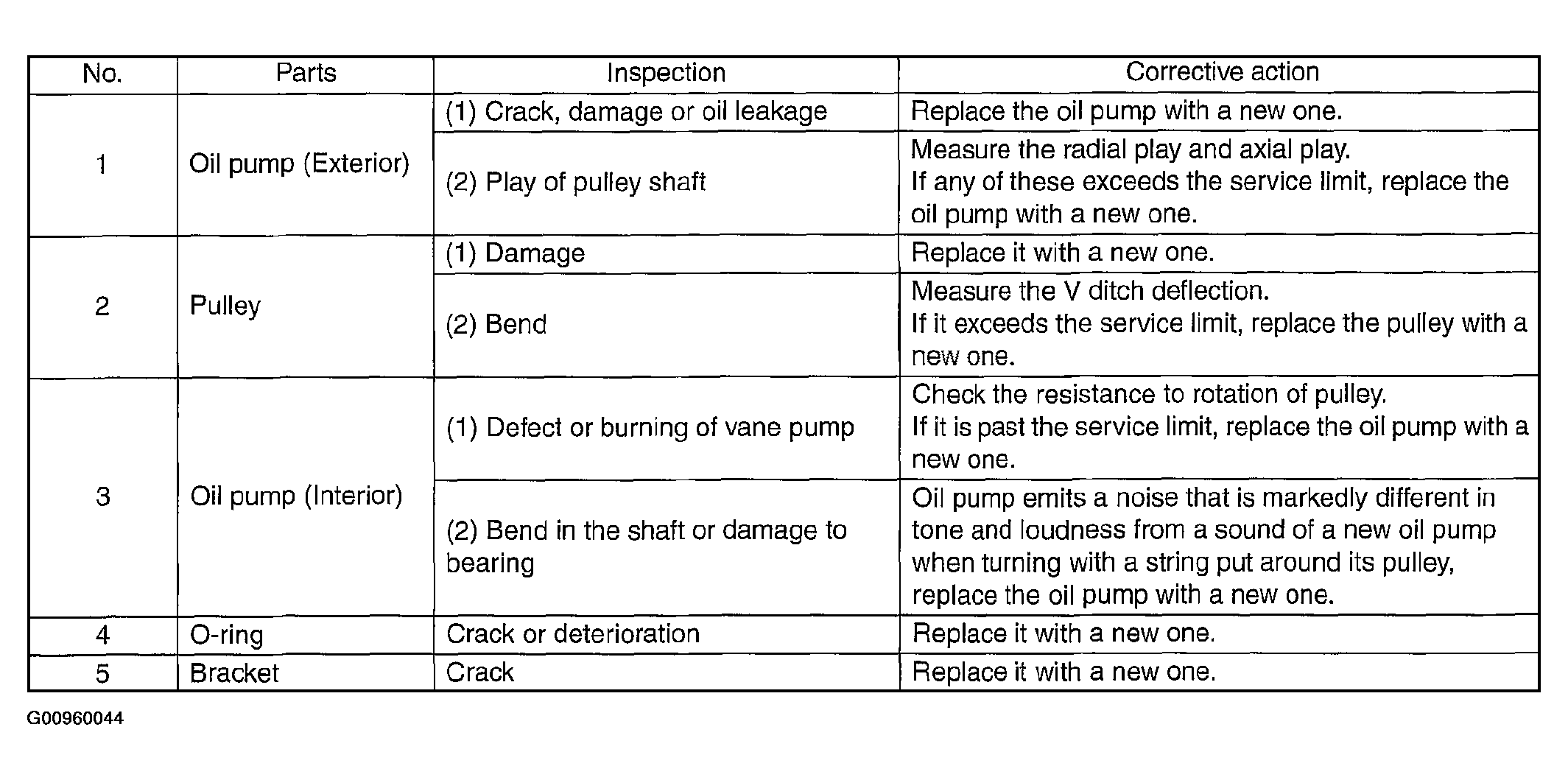

Fig 1: Inspection Procedures Chart
G00960044Courtesy of SUBARU OF AMERICA, INC.
