Torque Converter Clutch Assembly: Removal

Remove the transmission assembly from the vehicle. < Ref. to REMOVAL . >
Extract the torque converter clutch assembly and oil pump shaft horizontally.
CAUTION: Be careful not to scratch the bushing inside the oil pump shaft.

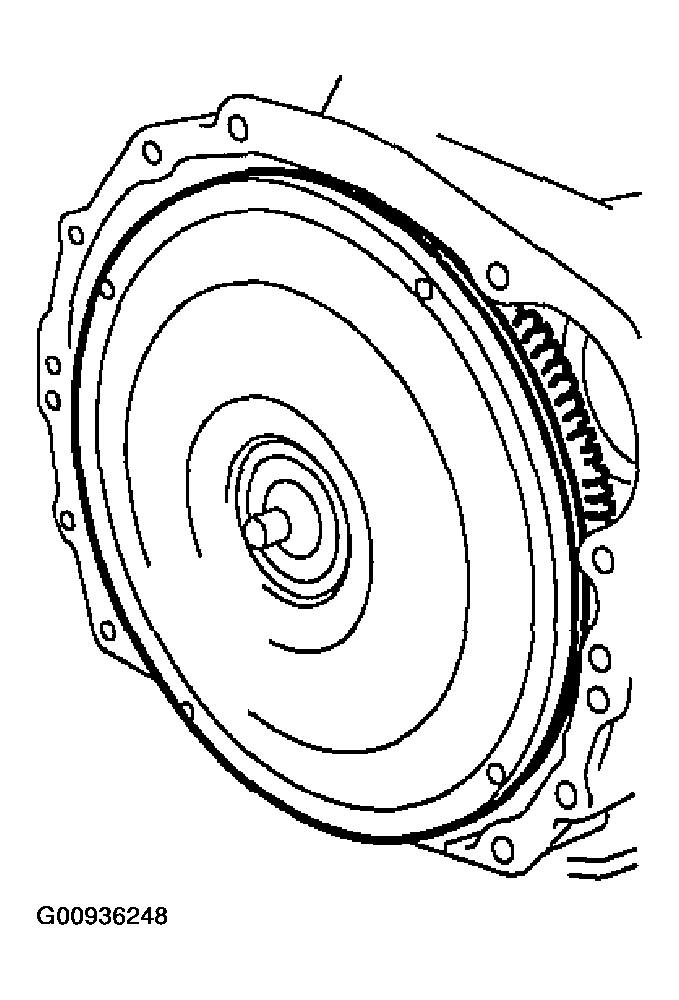

Fig 1: Identifying Torque Converter Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the input shaft.
NOTE: When the torque converter clutch assembly is removed, the input shaft will come out.

Fig 2: Identifying Clip & Torque Converter Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip from torque converter clutch assembly.
