Electrical Specification
›
Body Integrated Module
Body Integrated Module

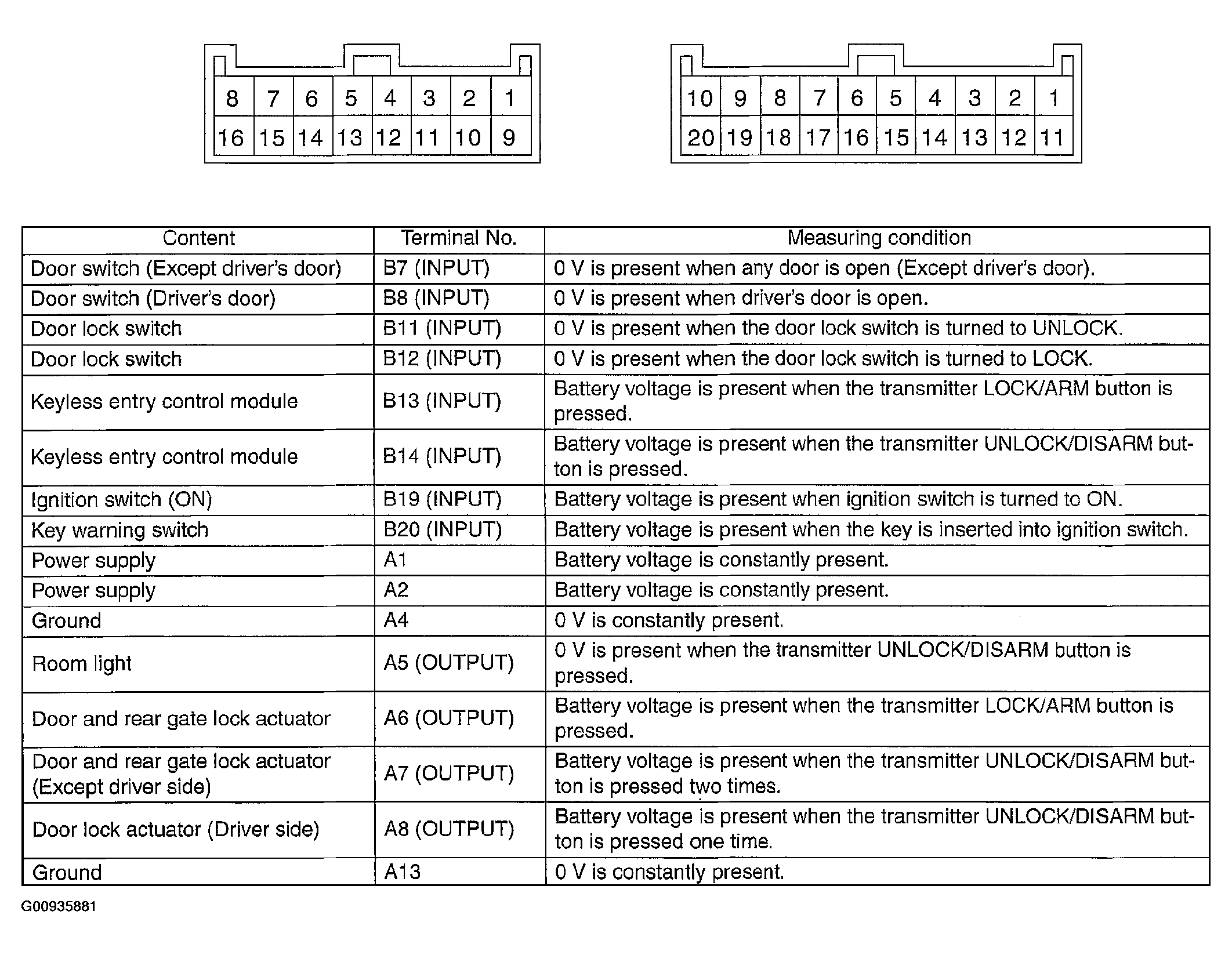

Fig 1: Body Integrated Module Connector
Courtesy of SUBARU OF AMERICA, INC.
