Engine Control Module (ECM) I/O Signal
›
Electrical Specification
Electrical Specification

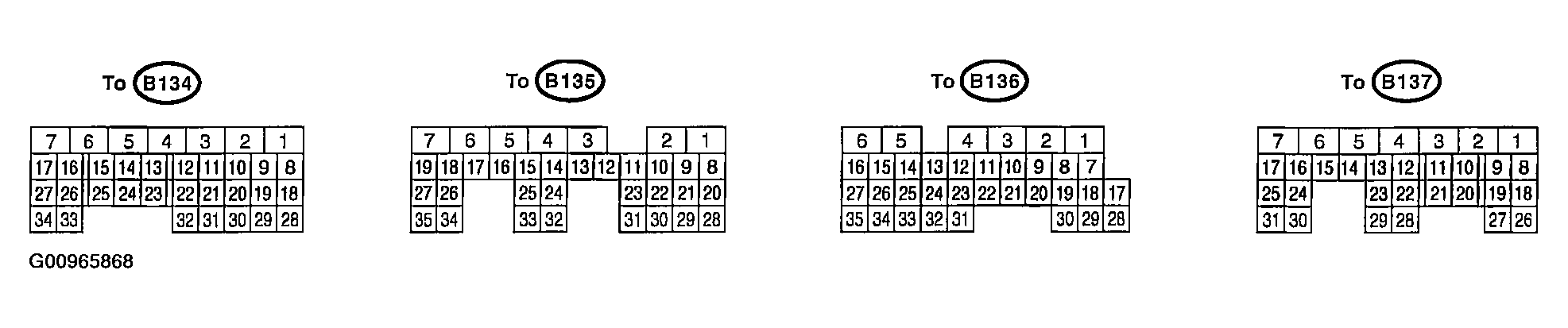

Fig 1: Identifying Engine Control Module Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.

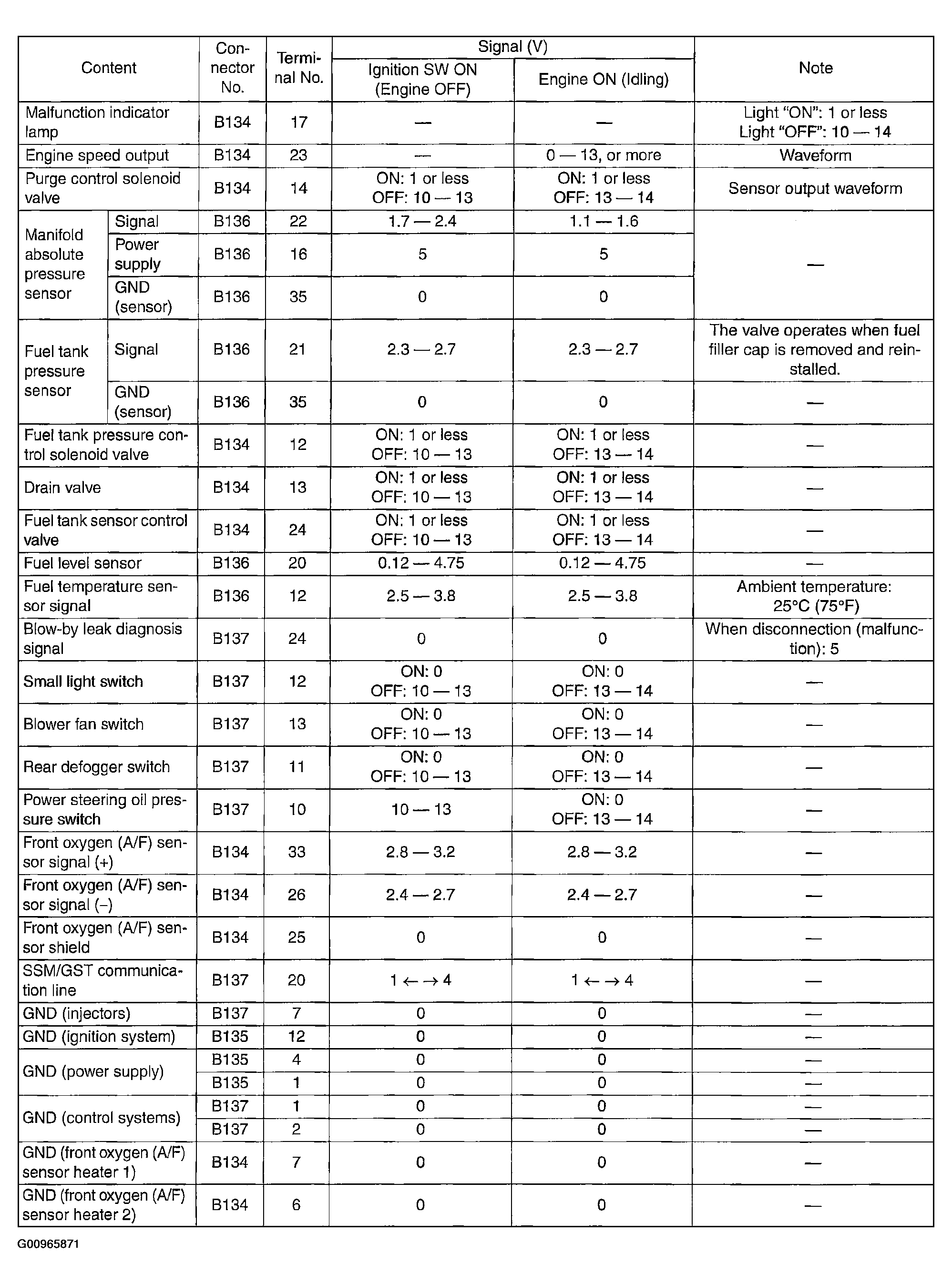

Fig 2: Terminal Specifications (1 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

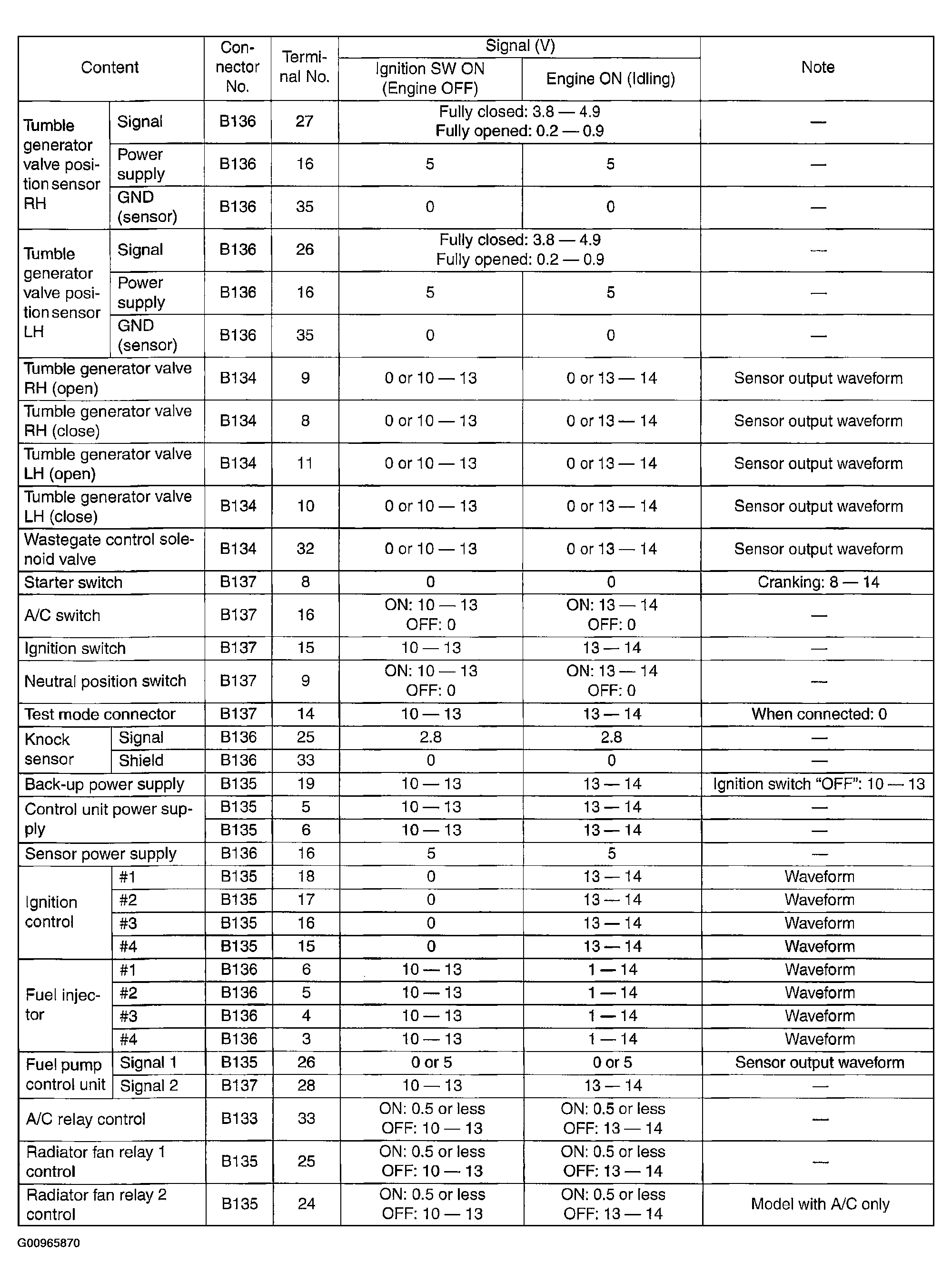

Fig 3: Terminal Specifications (2 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

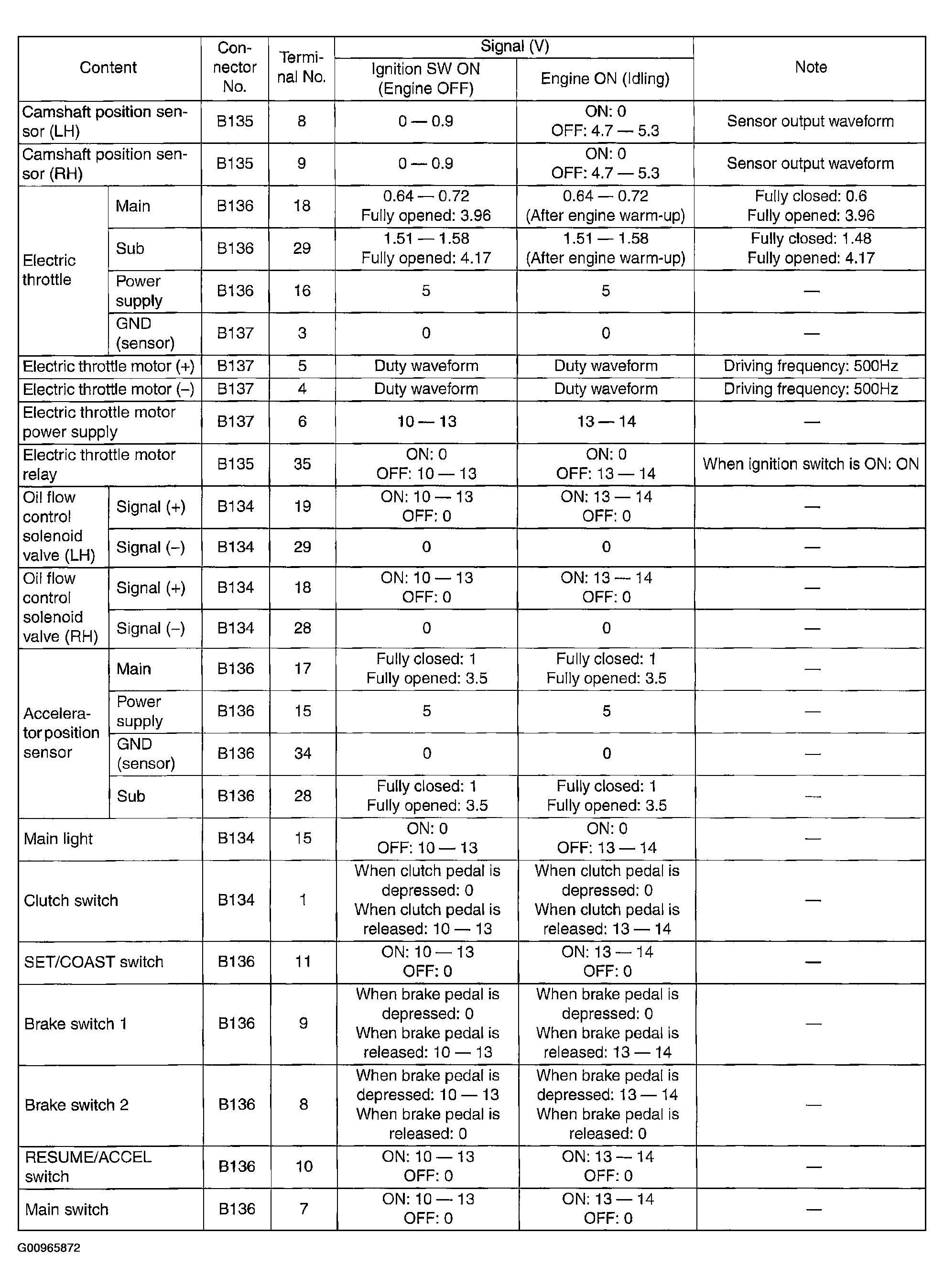

Fig 4: Terminal Specifications (3 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

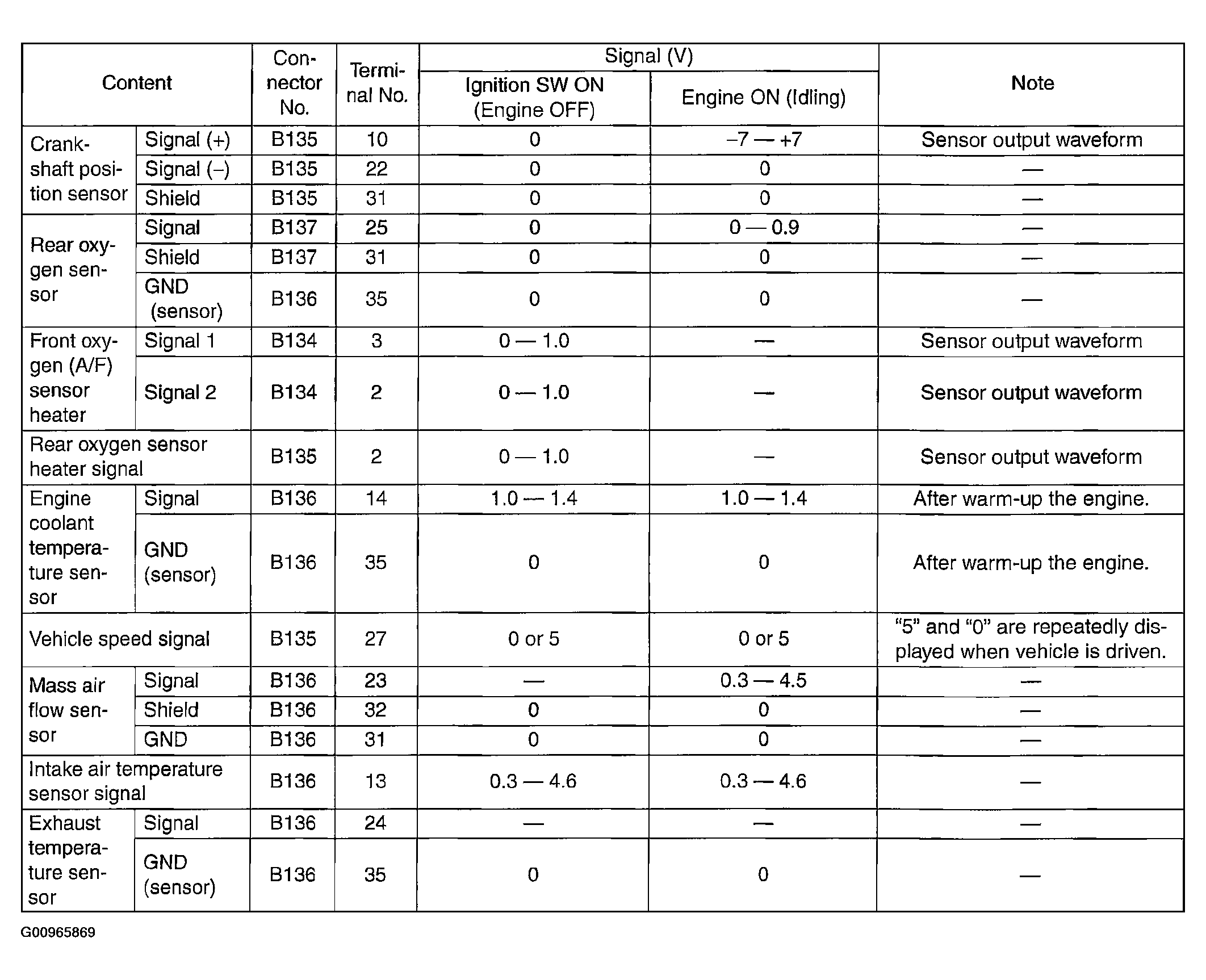

Fig 5: Terminal Specifications (4 Of 5)
Courtesy of SUBARU OF AMERICA, INC.

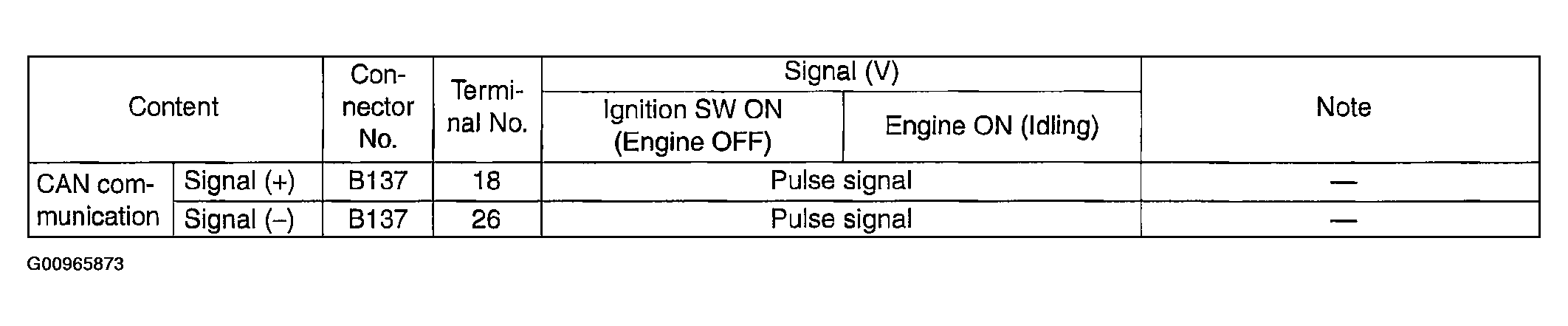

Fig 6: Terminal Specifications (5 Of 5)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
