General Description
›
Components
›
Security System
Security System

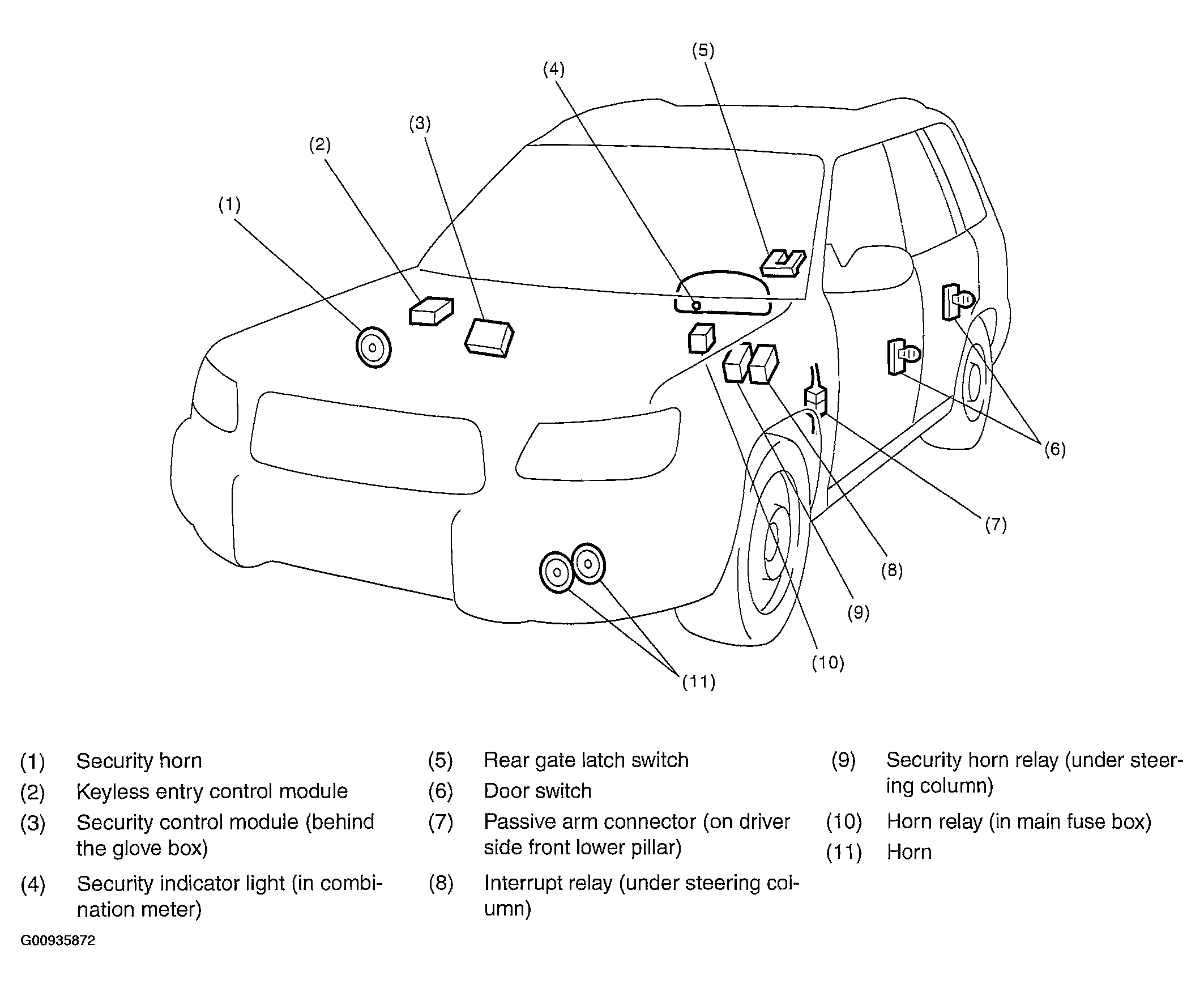

Fig 1: Exploded View Of Security System
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
