Interrupt Relay: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the mounting nuts and detach the interrupt relay (near the fuse box).

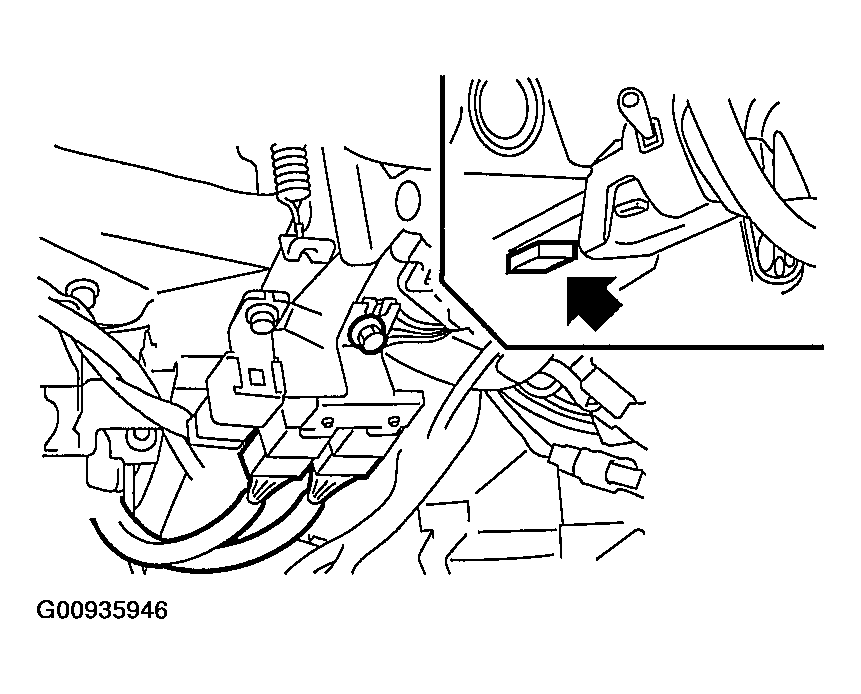

    Fig 1: Identifying Mounting Nuts
    G00935946Courtesy of SUBARU OF AMERICA, INC.
