Inspection
›
Basic Diagnostic Procedure
Basic Diagnostic Procedure

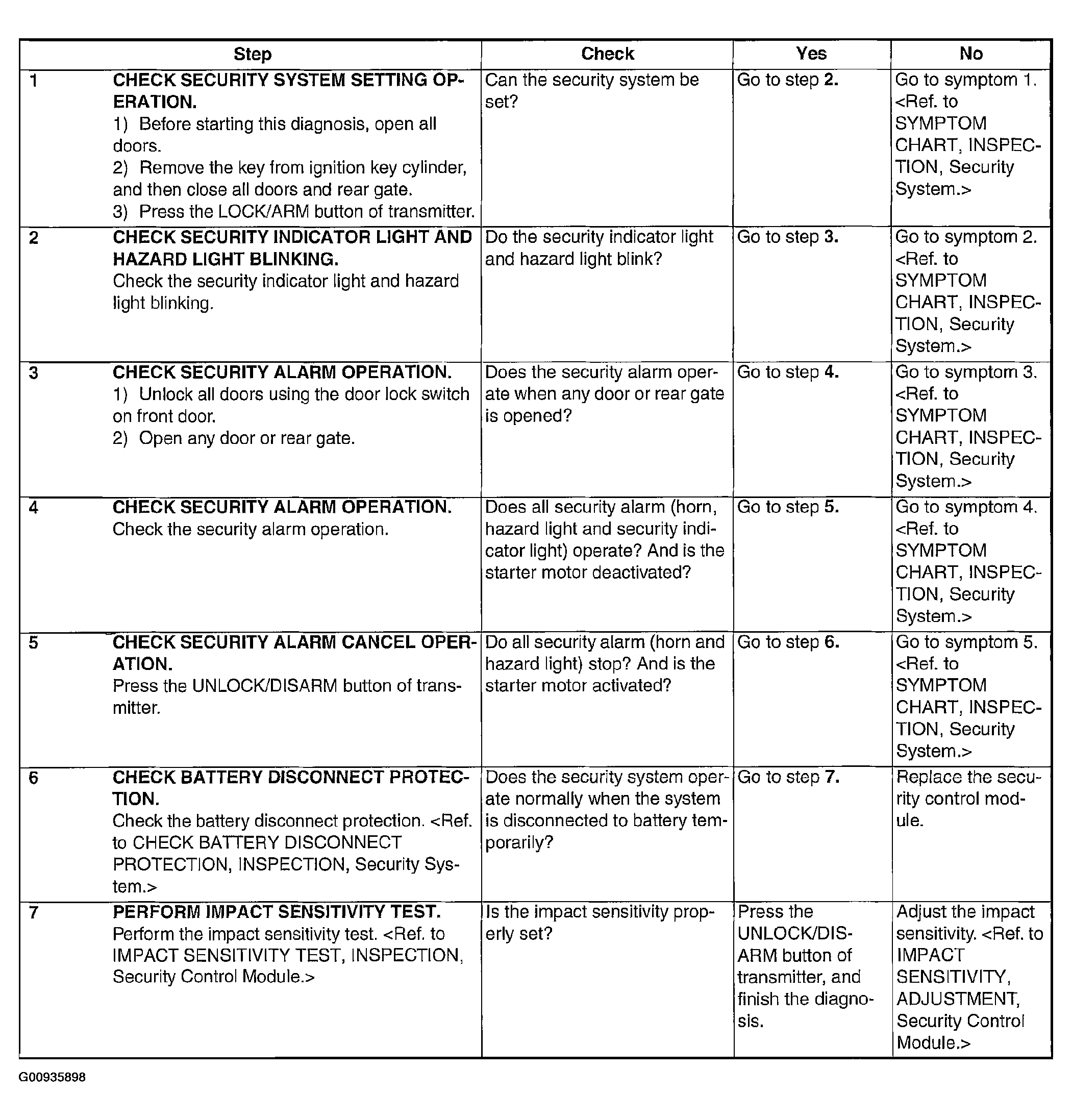

Fig 1: Basic Diagnostic Procedure Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
