Check Interrupt Relay Circuit
Check Interrupt Relay Circuit

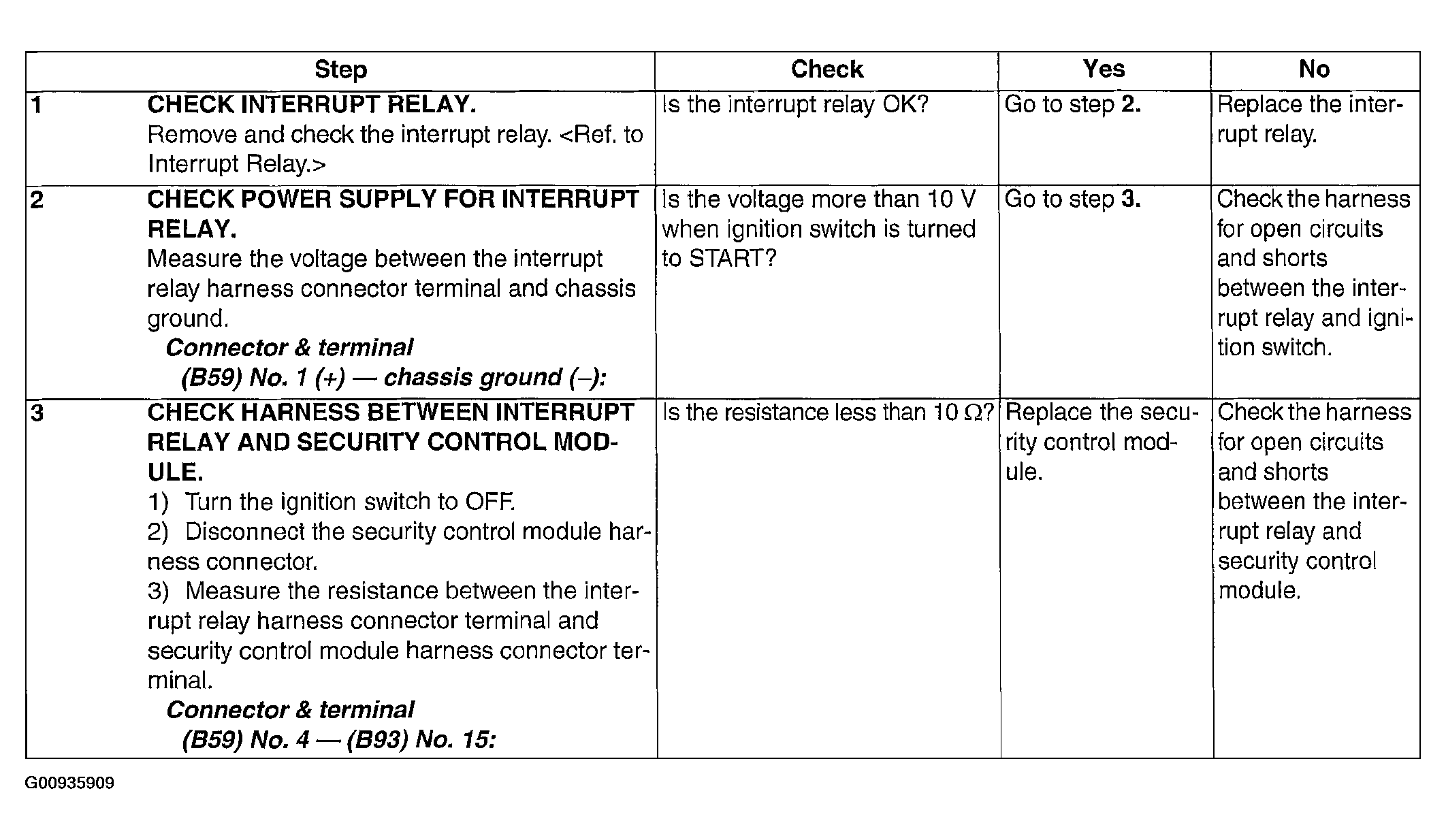

Fig 1: Check Interrupt Relay Circuit Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
