Check Security Indicator Light Circuit

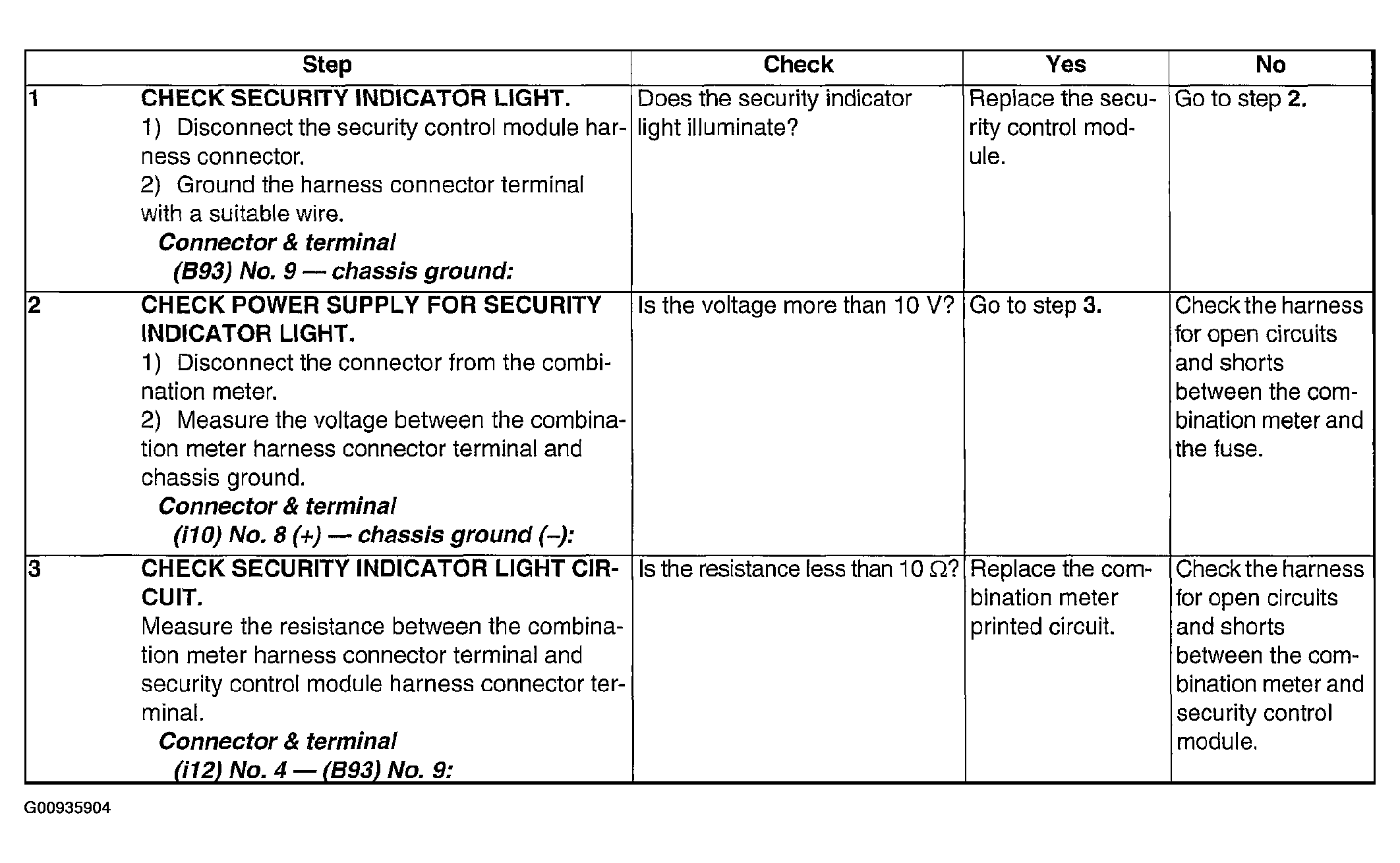

Fig 1: Check Security Indicator Light Circuit Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
