Security System Connector End View
Security System Connector End View

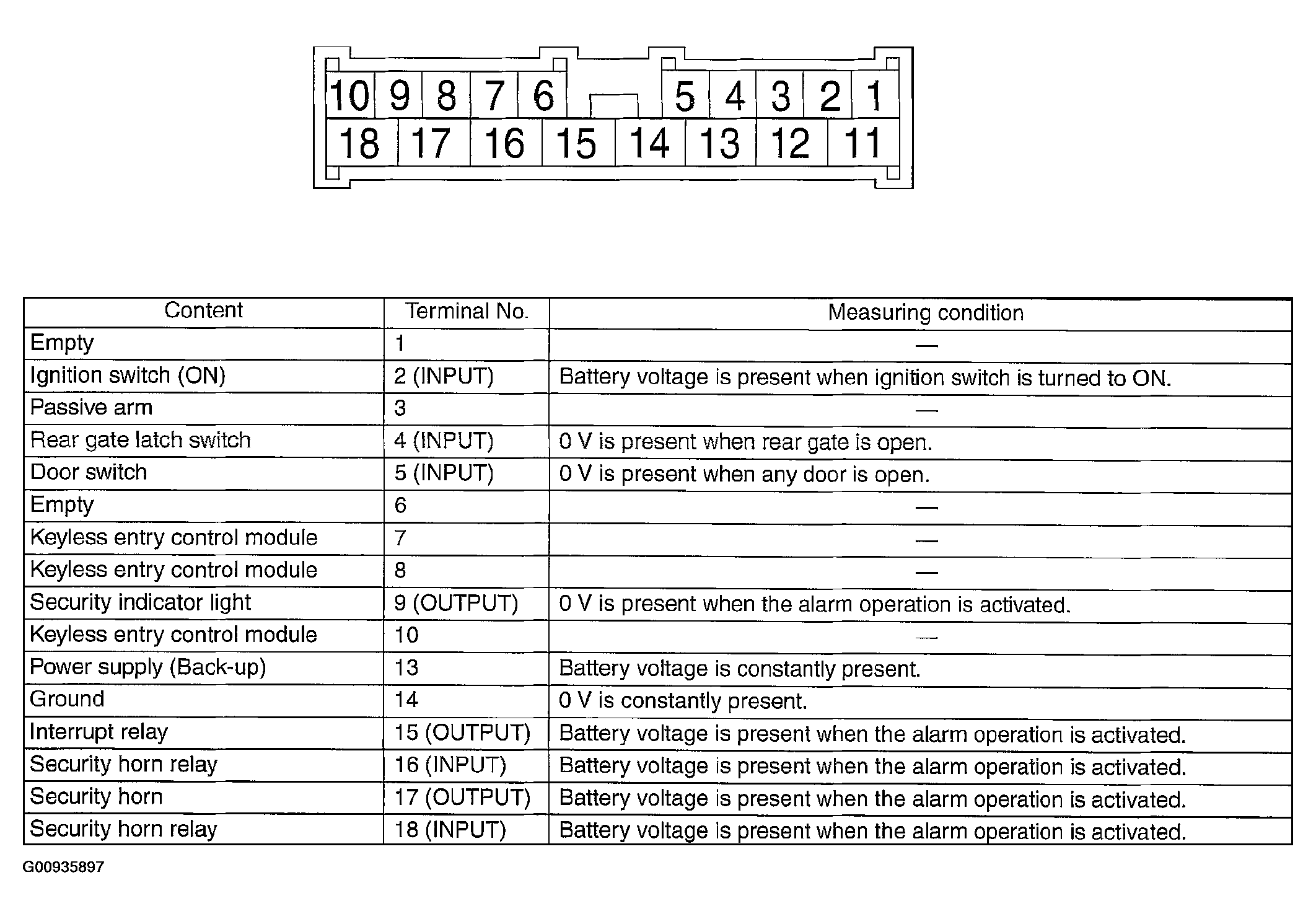

Fig 1: Security System Connector End View
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
