Engine Control Module (ECM): Removal

Disconnect the ground cable from battery.

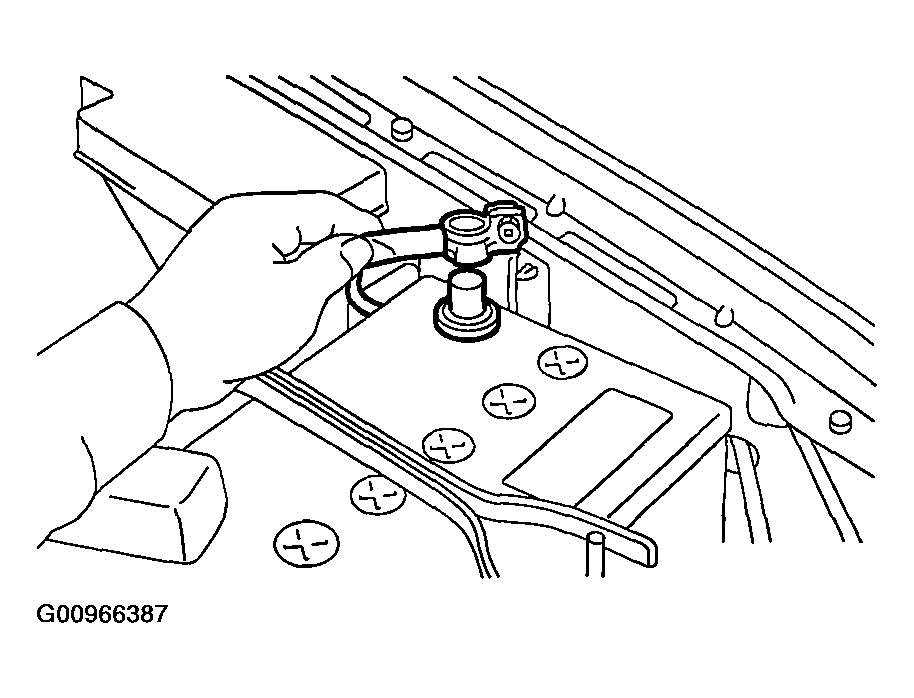

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower inner trim of the passenger side. < Ref. to REMOVAL , Lower Inner Trim . >
Detach the floor mat of the front passenger seat.
Remove the protect cover.

Fig 2: Identifying Protect Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts (A) which hold ECM to the bracket.
Remove the clip (B) from the bracket.

Fig 3: Identifying Nuts & ECM
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the ECM connectors and take out the ECM.
