Fuel Sub Level Sensor: Installation

Install in the reverse order of removal.

1. Tightening torque: 4.4 N.m (0.45 kgf-m, 3.3 ft-lb)

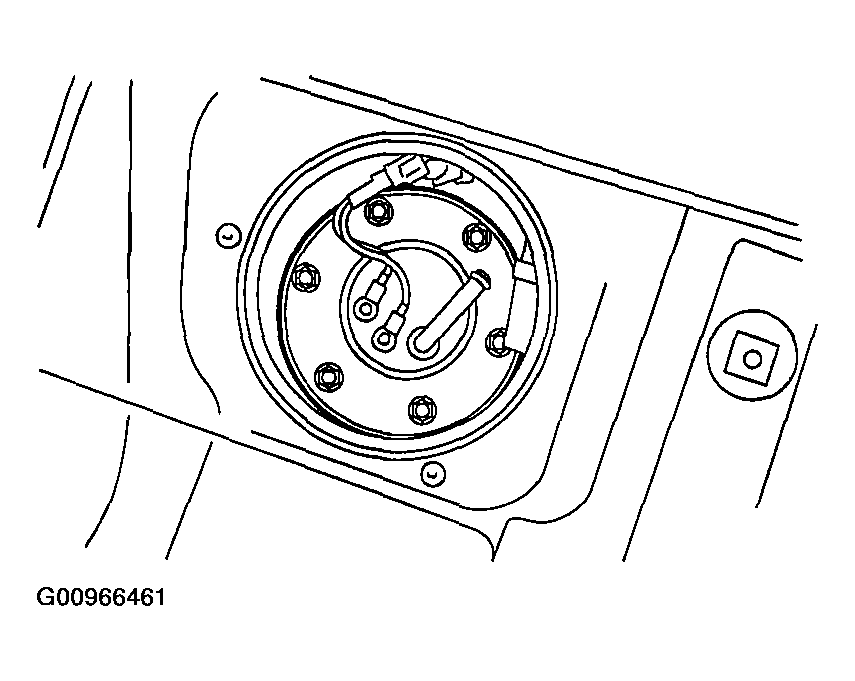

Fig 1: Identifying Fuel Sub Meter Unit

Courtesy of SUBARU OF AMERICA, INC.
