Main Relay: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00966390Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the glove box. < Ref. to REMOVAL , Glove Box . >
  3. Remove the bolt which holds the main relay bracket on the body.
  4. Disconnect the connectors from the main relay.

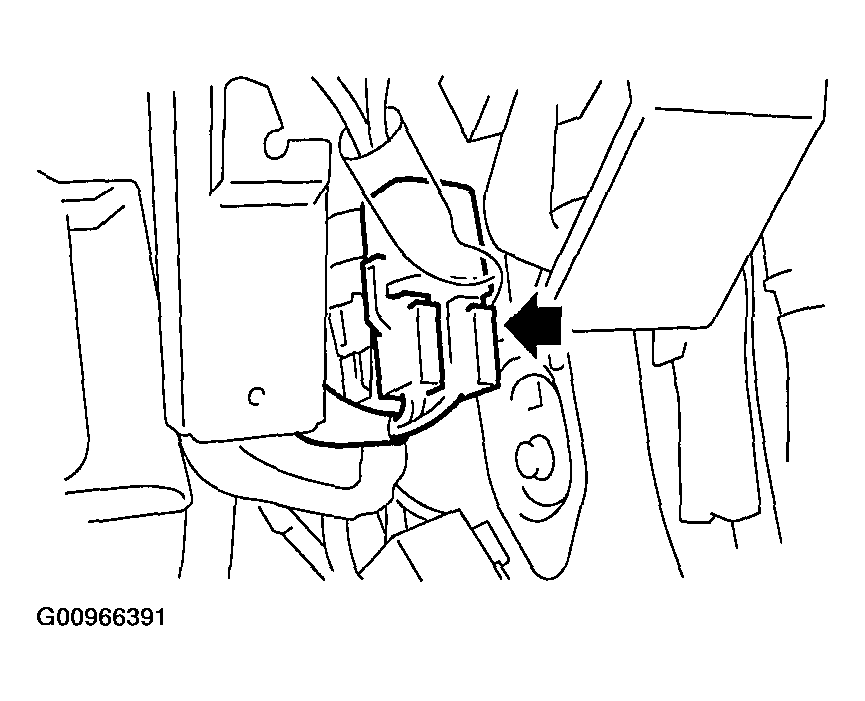

    Fig 2: Identifying Main Relay
    G00966391Courtesy of SUBARU OF AMERICA, INC.
