Throttle Body: Removal

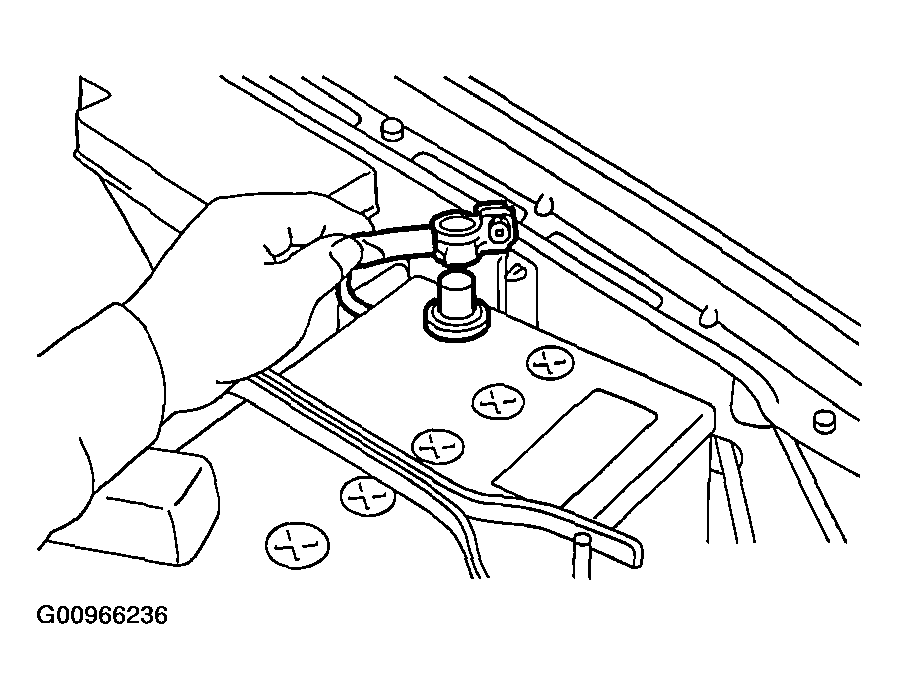

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler. < Ref. to REMOVAL , Intercooler . >

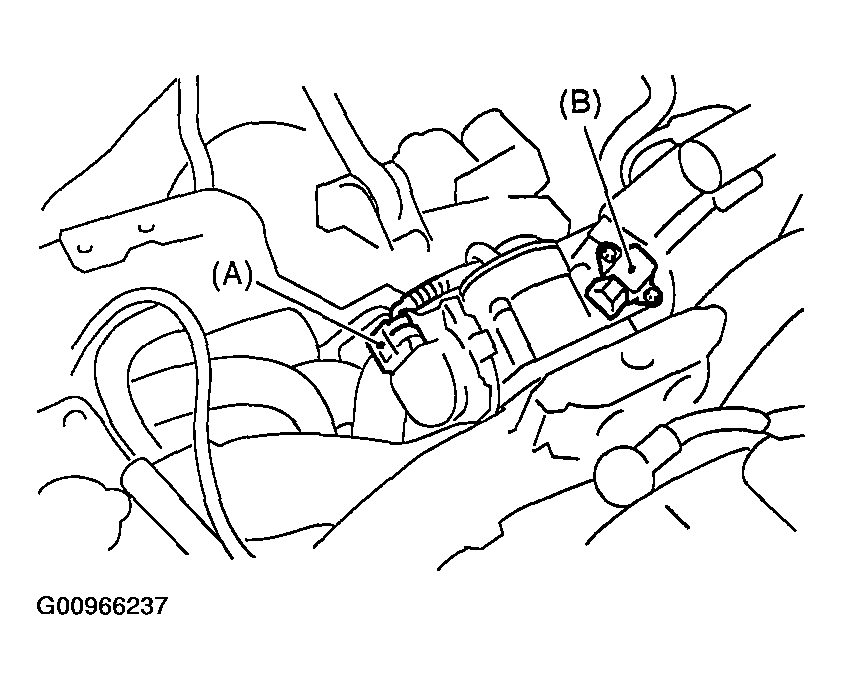

Disconnect the connector from the throttle position sensor (A) and manifold absolute pressure sensor (B).

Fig 2: Identifying Connectors From Sensors
Courtesy of SUBARU OF AMERICA, INC.

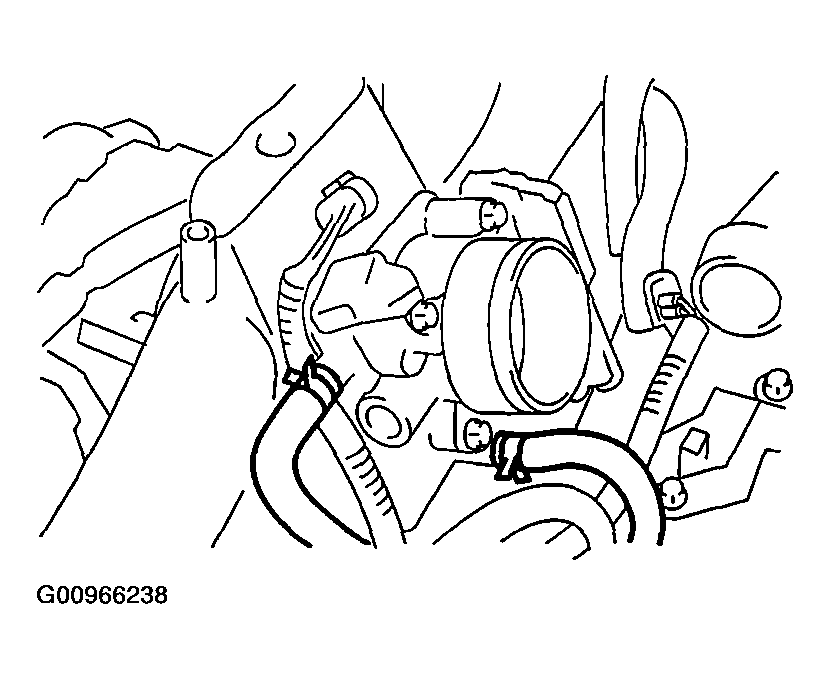

Disconnect the engine coolant hoses from the throttle body.

Fig 3: Identifying Engine Coolant Hoses
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the throttle body to intake manifold.
