Engine (Diagnostics) (H4DOTC)
›
Diagnostics for Engine Starting Failure
›
Control Module Power Supply And Ground Line
›
Diagnostic Procedure
Diagnostic Procedure

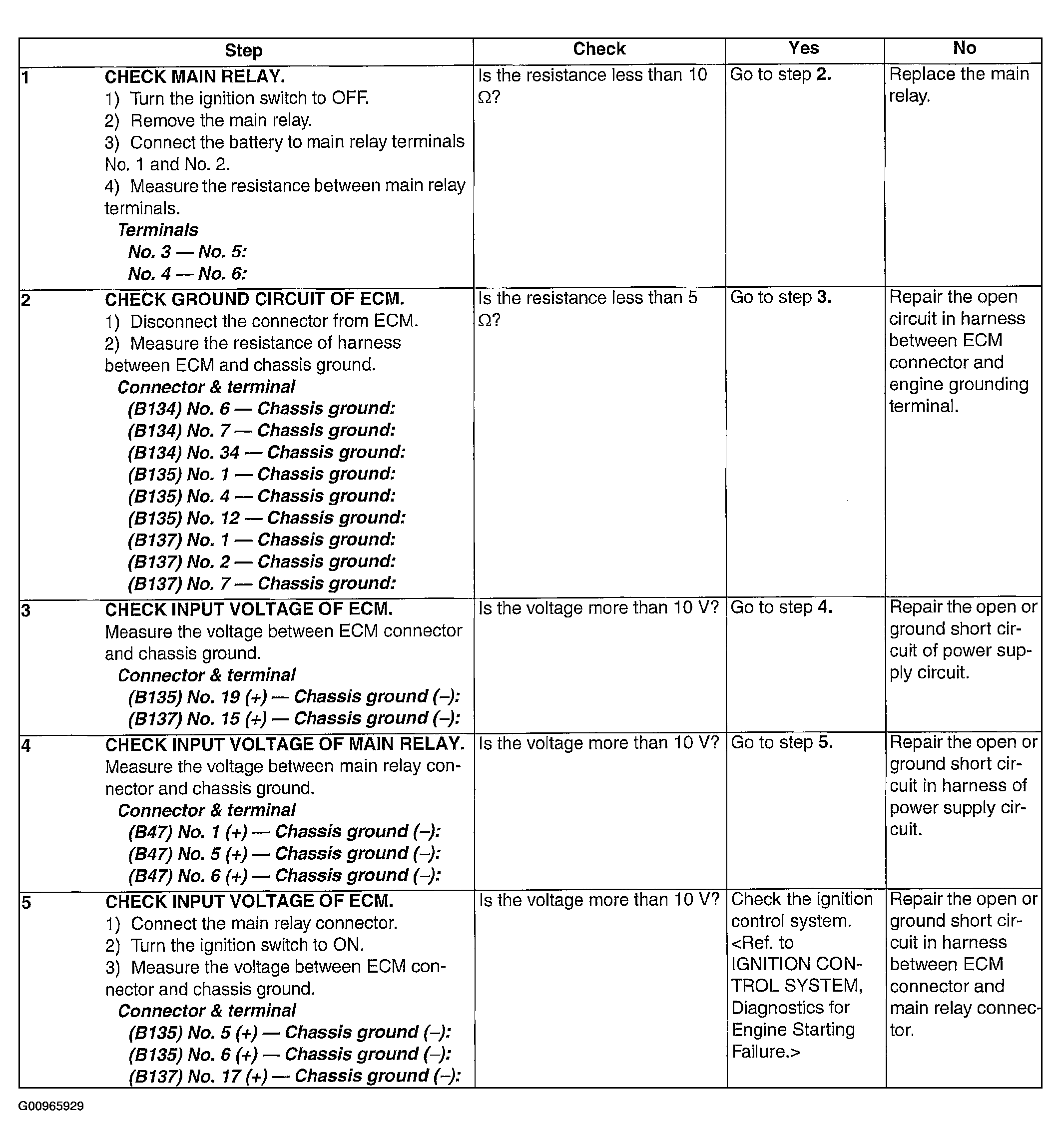

Fig 1: Diagnostic Chart
Courtesy of SUBARU OF AMERICA, INC.
