General Diagnostic Table: Inspection

ENGINE
NOTE: Malfunction of parts other than those listed is also possible. < Ref. to ENGINE TROUBLE IN GENERAL . >

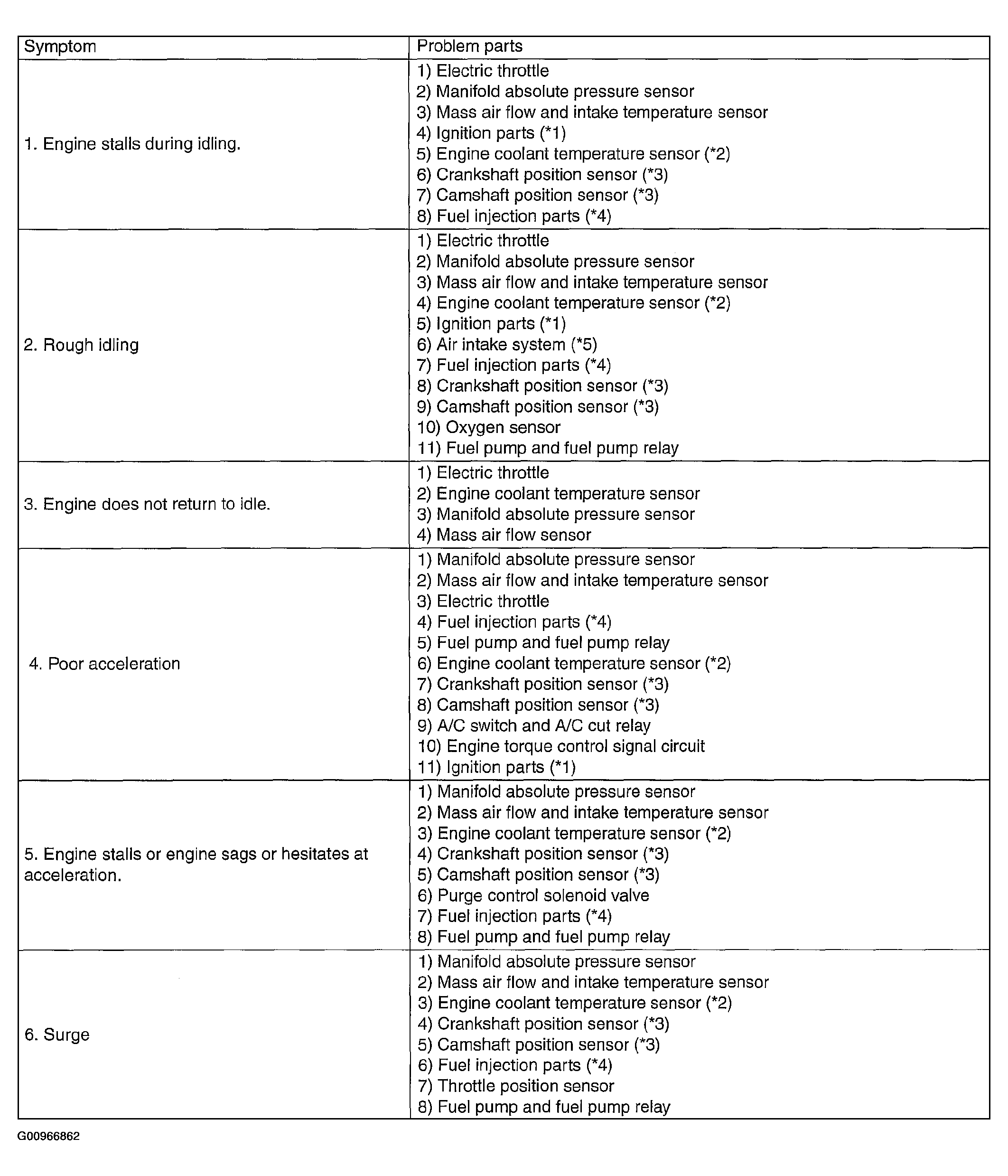

Fig 1: General Diagnostic Table (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

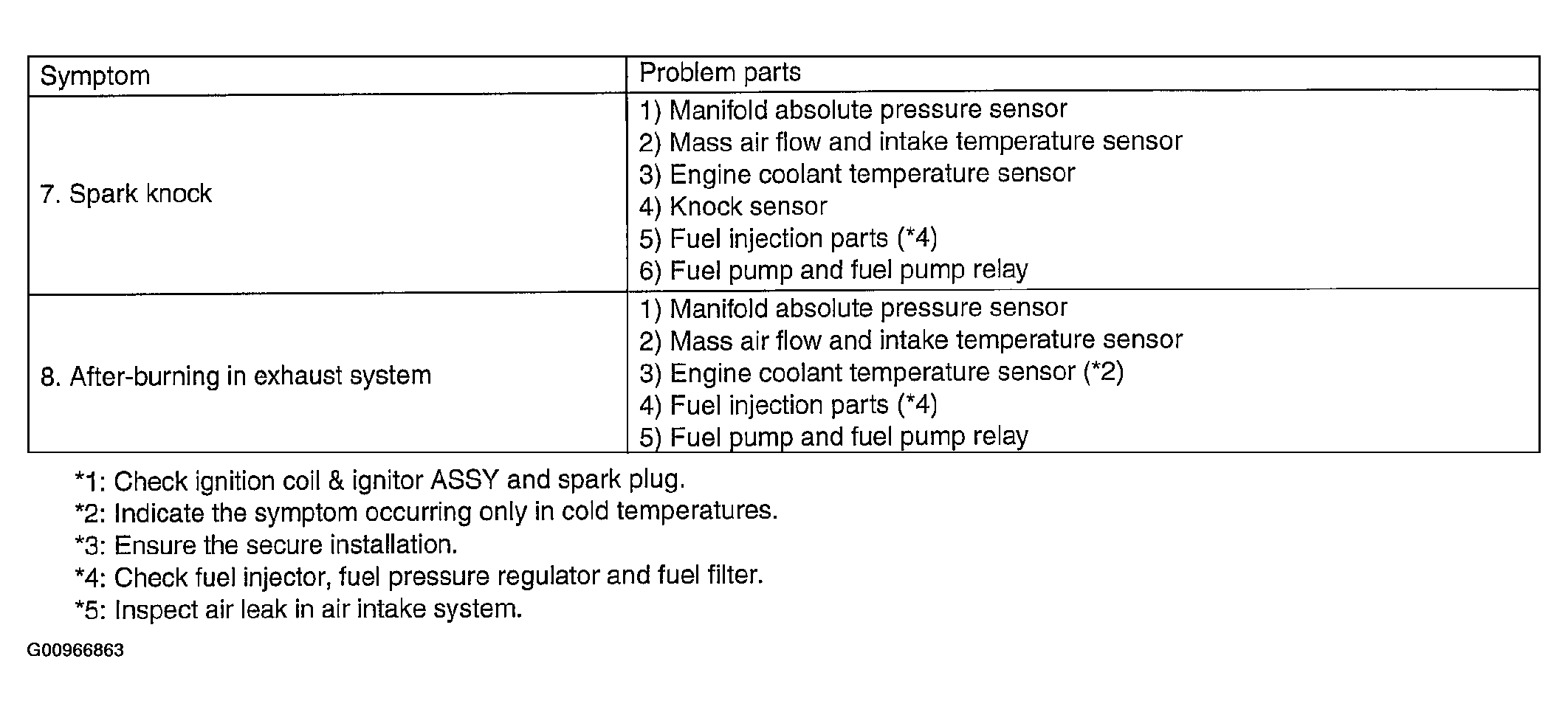

Fig 2: General Diagnostic Table (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
