Operating Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the air cleaner case and air intake duct (Non-turbo model). < Ref. to REMOVAL , Air Cleaner Case .> and < Ref. to REMOVAL , Air Intake Duct .>
Remove the intercooler (Turbo model). < Ref. to REMOVAL , Intercooler .>
Remove the clutch hose from operating cylinder.
NOTE: Cover the hose joint to prevent clutch fluid from flowing out.
- NON-TURBO MODEL

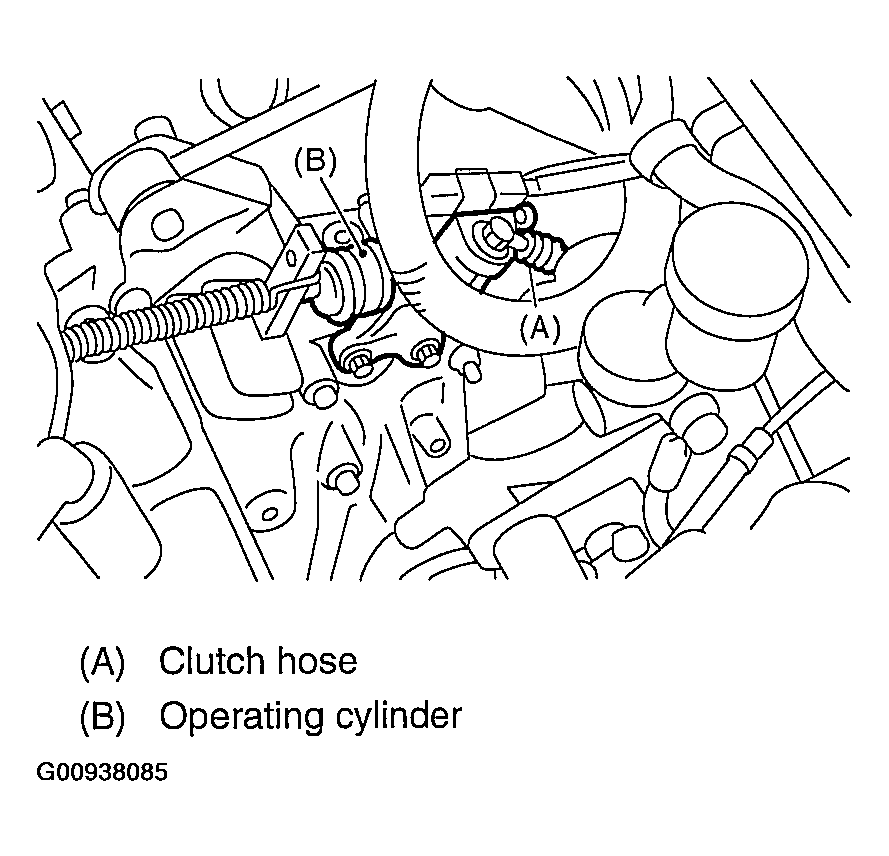

  Fig 1: Identifying Clutch Hose Non-Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL

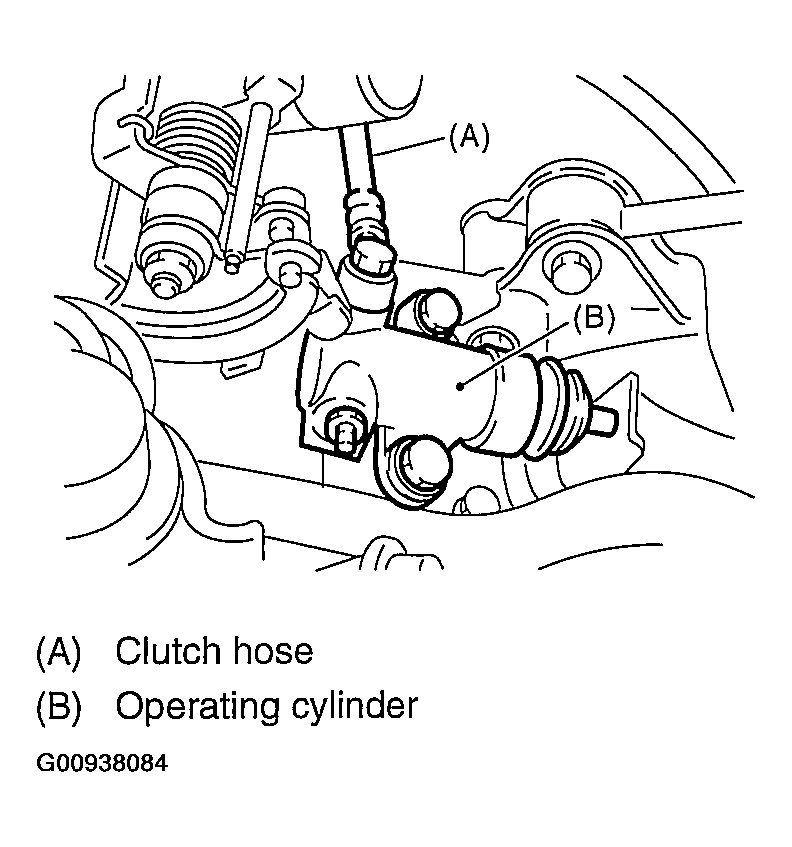

  Fig 2: Identifying Clutch Hose Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
Remove the operating cylinder from transmission.
- NON-TURBO MODEL

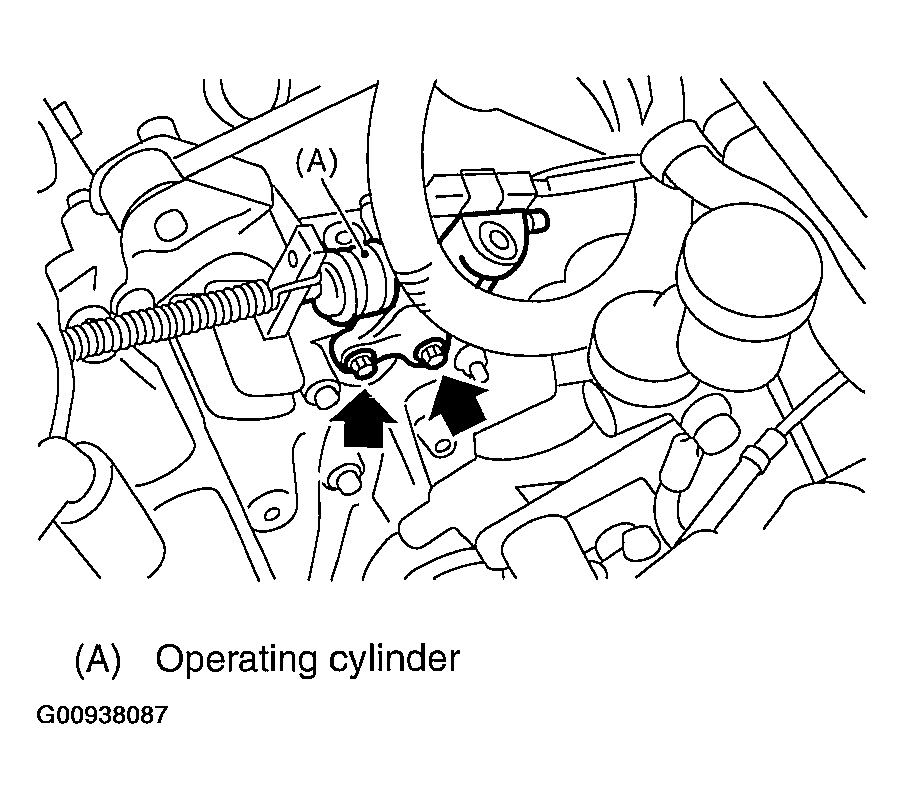

  Fig 3: Remove Operating Cylinder Non-Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL

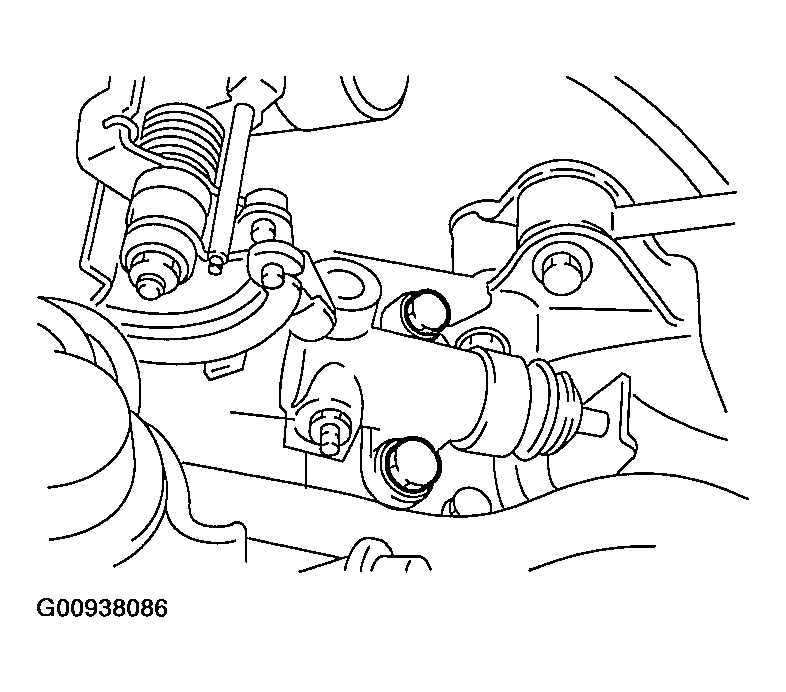

  Fig 4: Remove Operating Cylinder Turbo Model
  Courtesy of SUBARU OF AMERICA, INC.
