Removal & Installation: Sub-Frame: Installation

NOTE: Replace the M12 bolt with a new one. See Fig 1.

Install in the reverse order of removal.

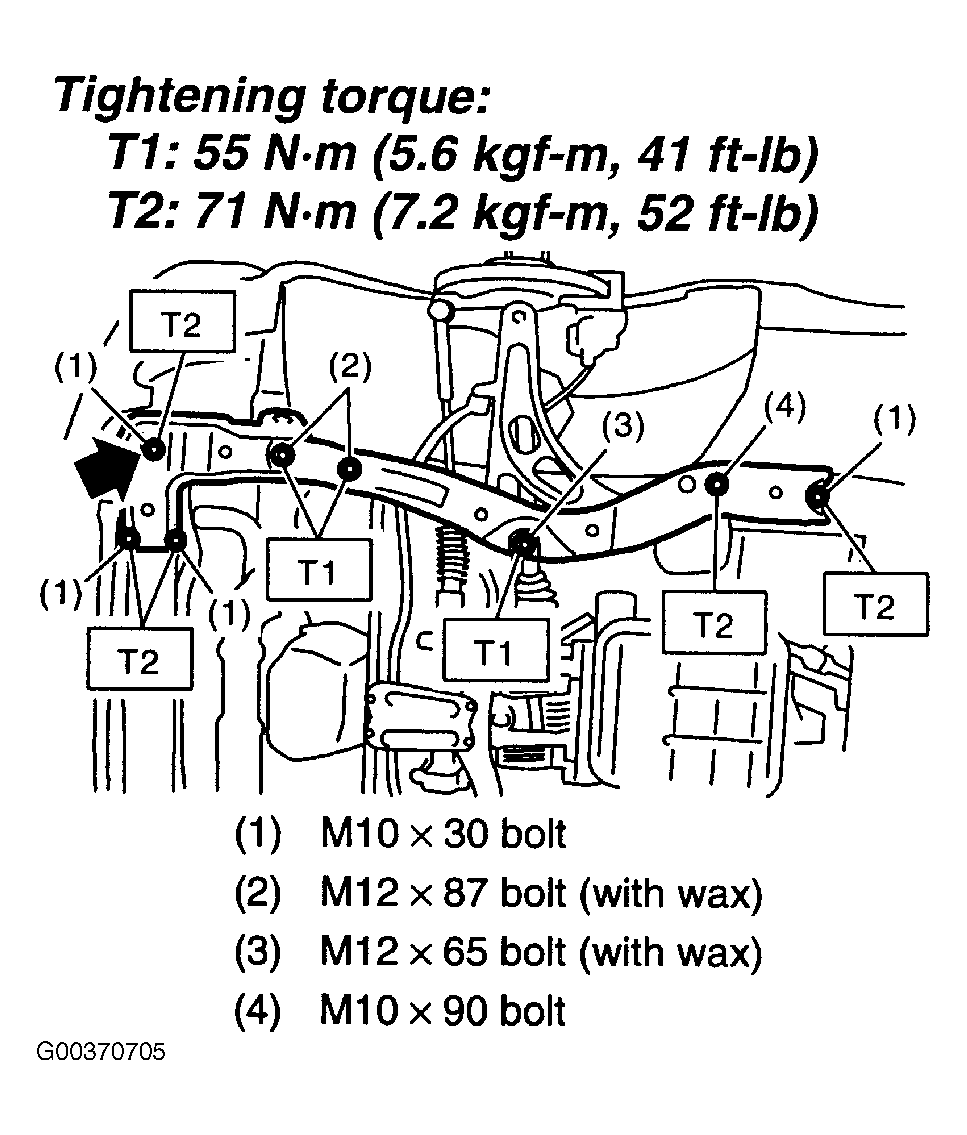

Fig 1: Replacing M12 Bolt

Courtesy of SUBARU OF AMERICA, INC.
