Select Lever Cannot Be Shift Locked

WIRING DIAGRAM:

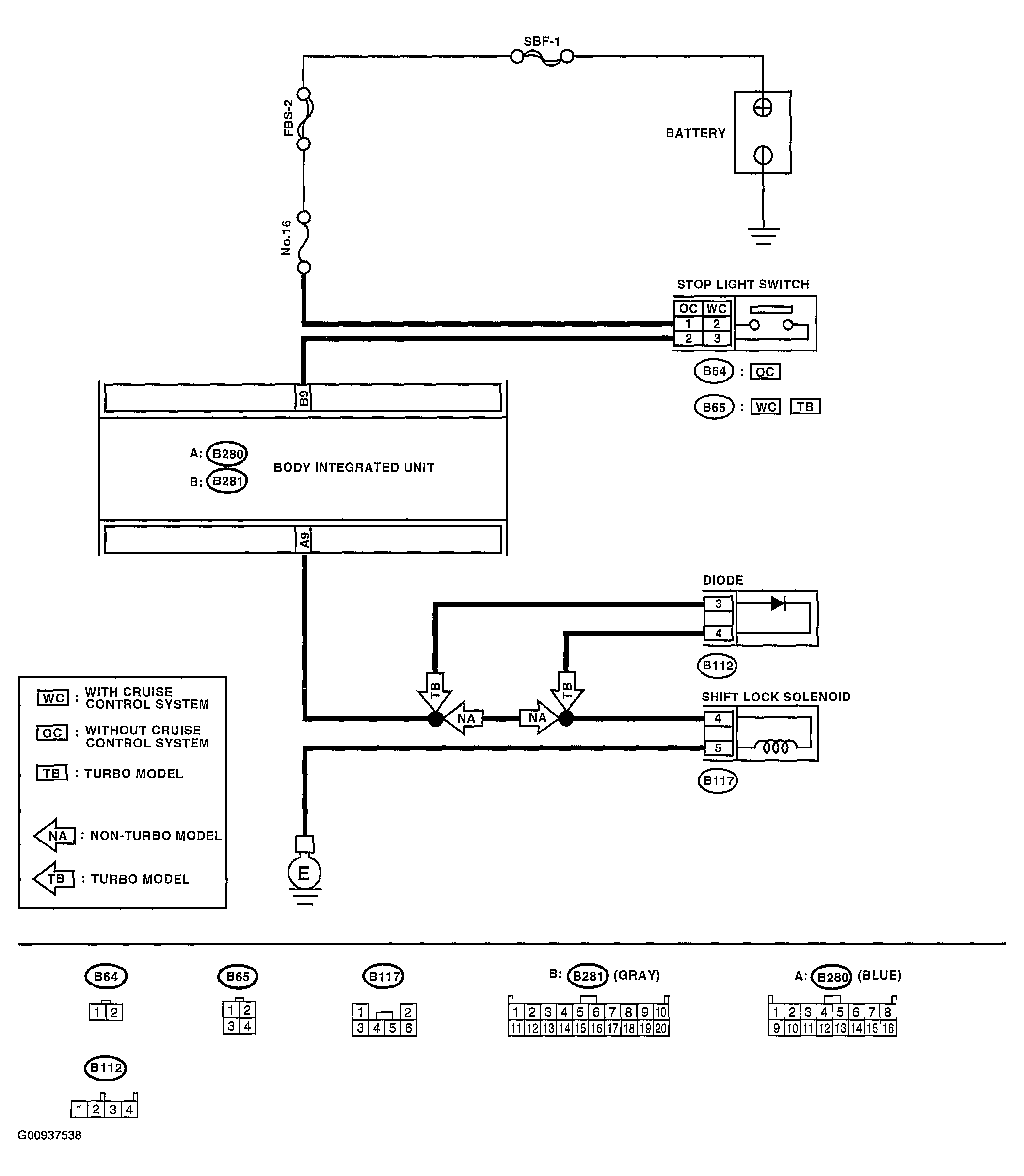

Fig 1: Select Lever Cannot Be Shift Locked Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

SHIFT LOCK OPERATION CHART:

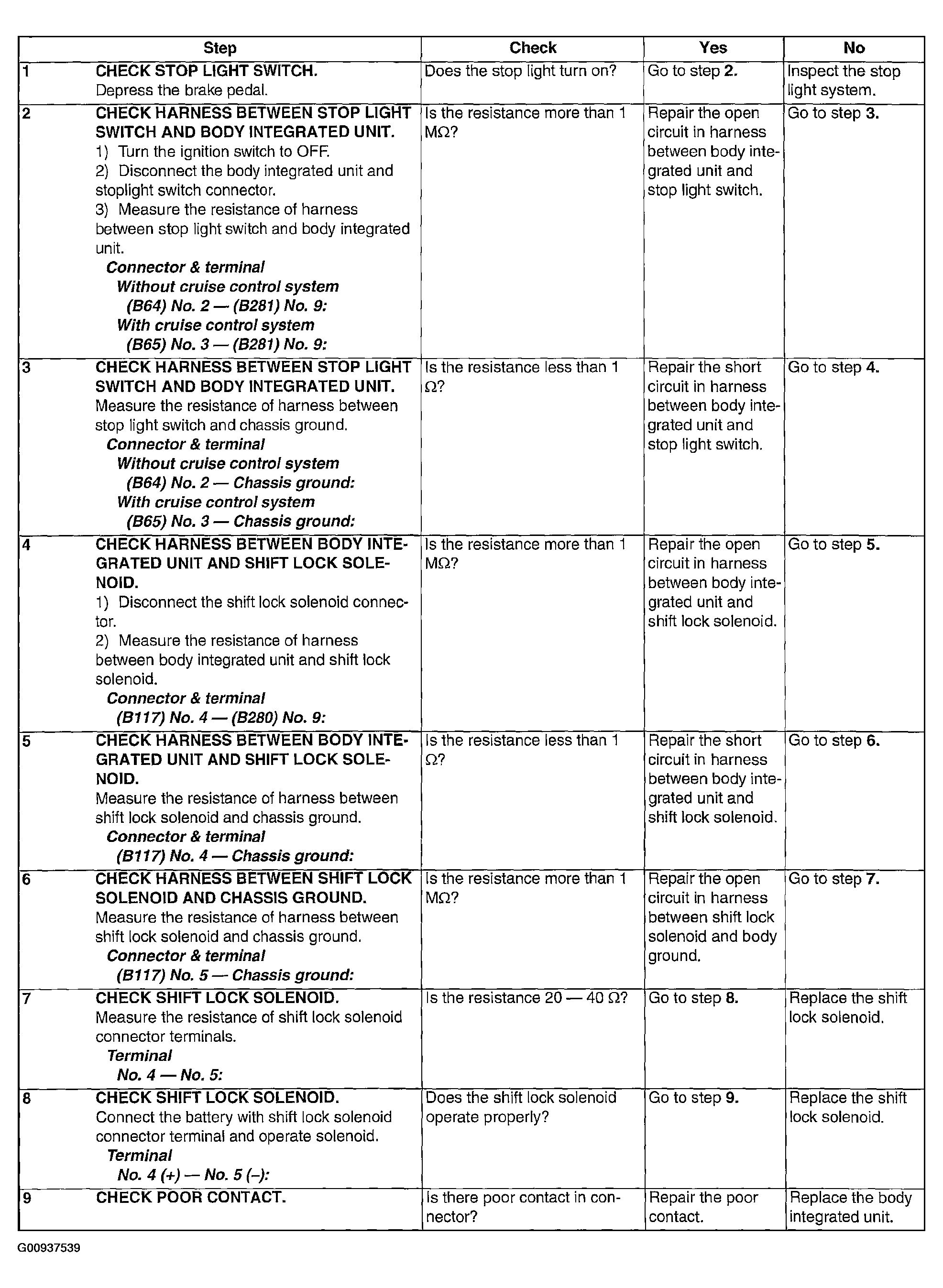

Fig 2: Shift Lock Operation Chart

Courtesy of SUBARU OF AMERICA, INC.
