Automatic Transmission - Mechanism & Function
›
Electro-hydraulic Control System
›
Control Items
Control Items

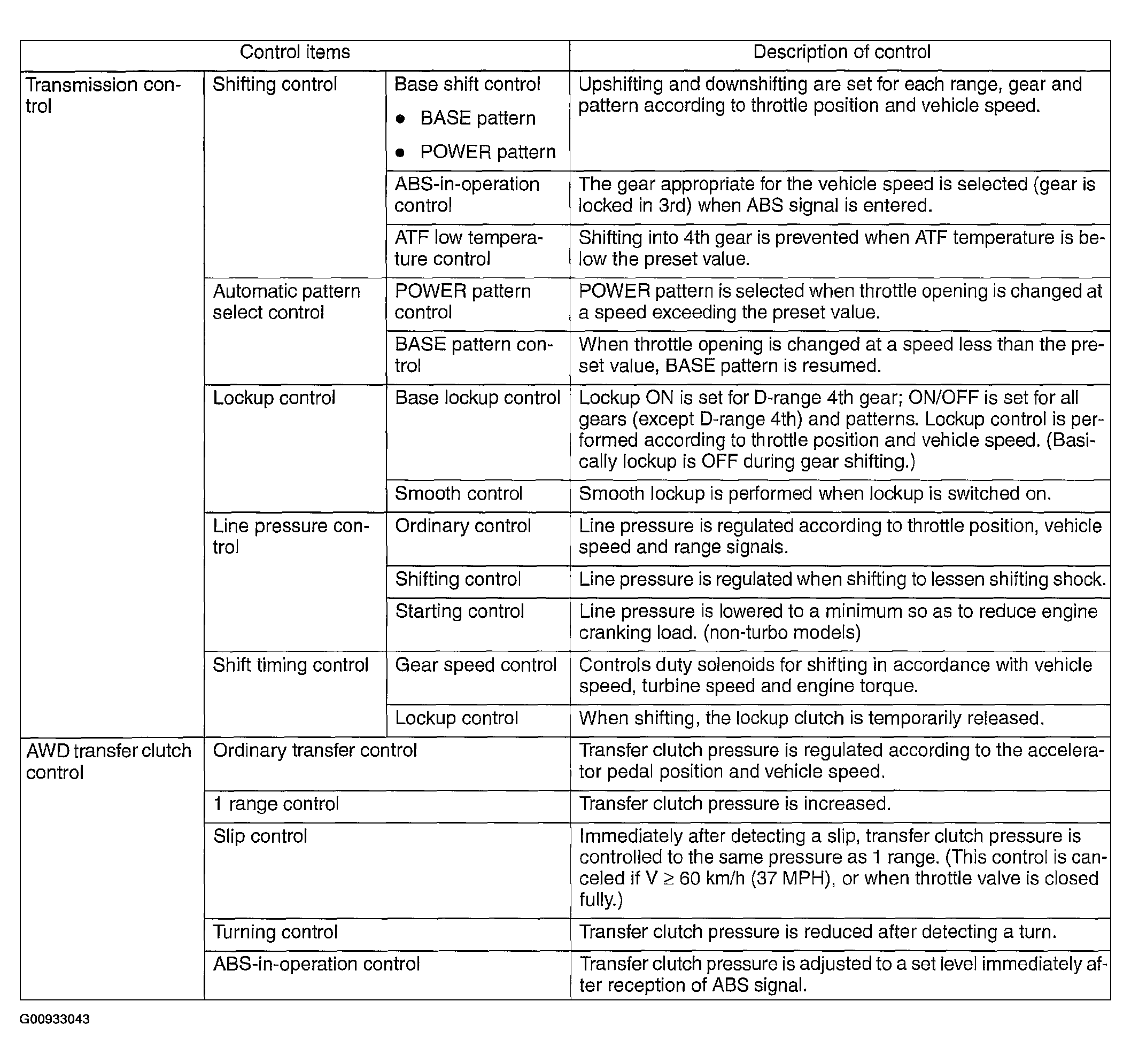

Fig 1: Control Items Description Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
