Automatic Transmission - Mechanism & Function
›
Electro-hydraulic Control System
›
Output Signals
›
Turbo Models
Turbo Models

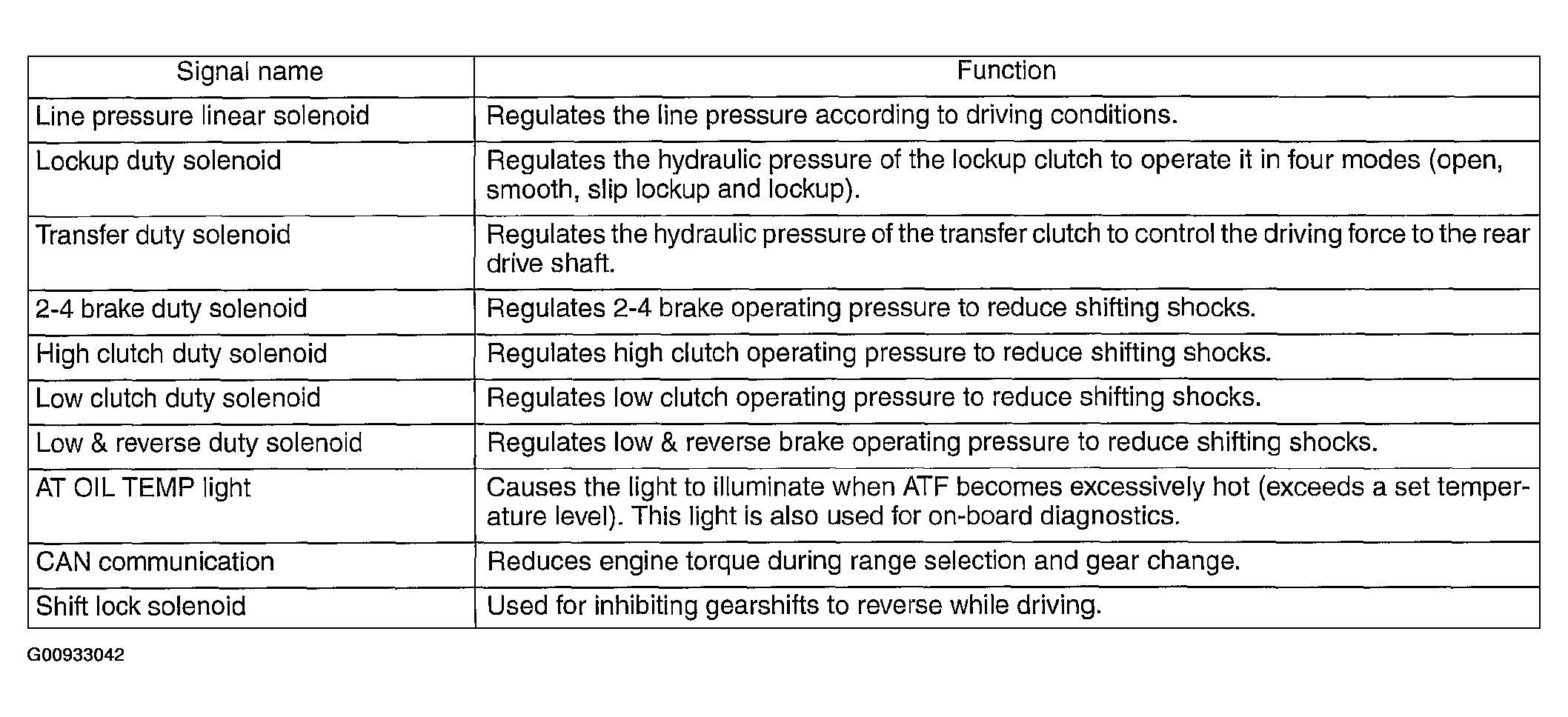

Fig 1: Output Signal Name & Function Chart -Turbo Models
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
