Automatic Transmission - Mechanism & Function
›
Transmission Control Module (TCM)
›
Schematic Diagrams
›
Non-Turbo Models
Non-Turbo Models

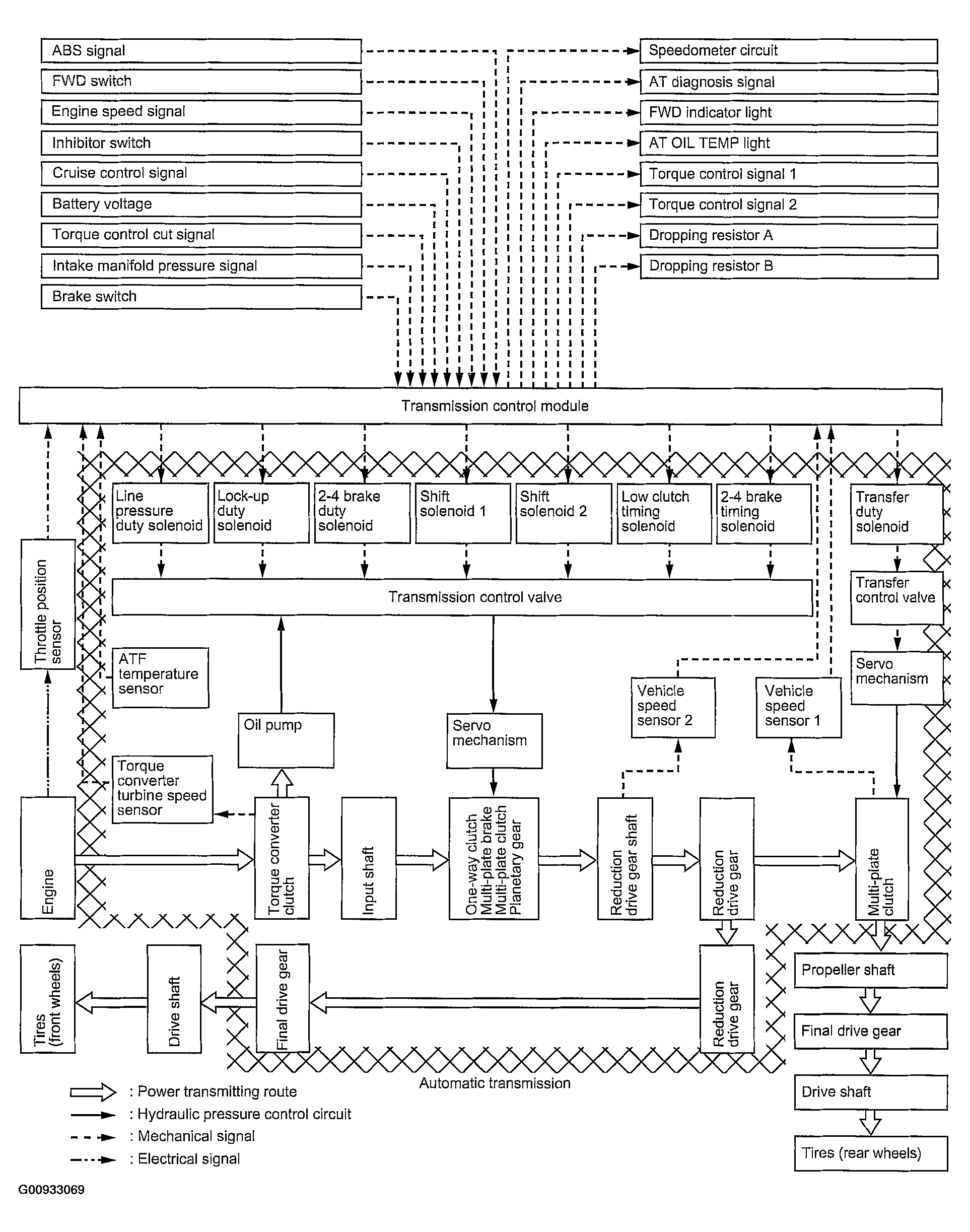

Fig 1: Schematic Diagrams (TCM) - Non-Turbo Models
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
