AT Transmission Main Case: Removal

Remove the transmission assembly from the vehicle. < Ref. to REMOVAL . >
Extract the torque converter clutch assembly. < Ref. to REMOVAL . >
Remove the input shaft.

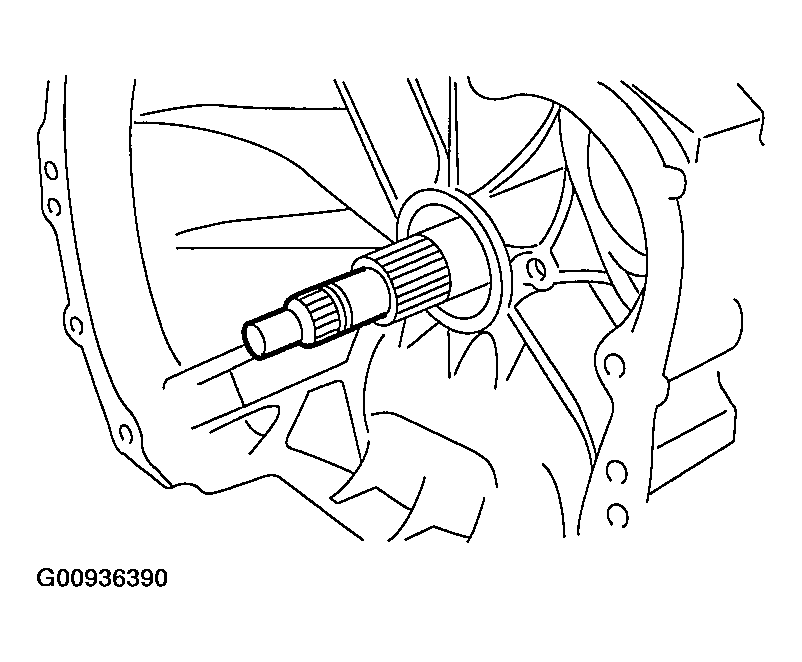

Fig 1: Identifying Input Shaft
Courtesy of SUBARU OF AMERICA, INC.
Lift-up lever behind the transmission harness connector and disconnect it from stay.
Disconnect inhibitor switch connector from stay.
Disconnect the air breather hose.
Remove the ATF charger pipe. < Ref. to REMOVAL . >
Remove the ATF cooler inlet and outlet pipes. < Ref. to REMOVAL . >
Separation of torque converter clutch case and transmission case. < Ref. to REMOVAL . >
Remove the oil pump housing. < Ref. to REMOVAL . >

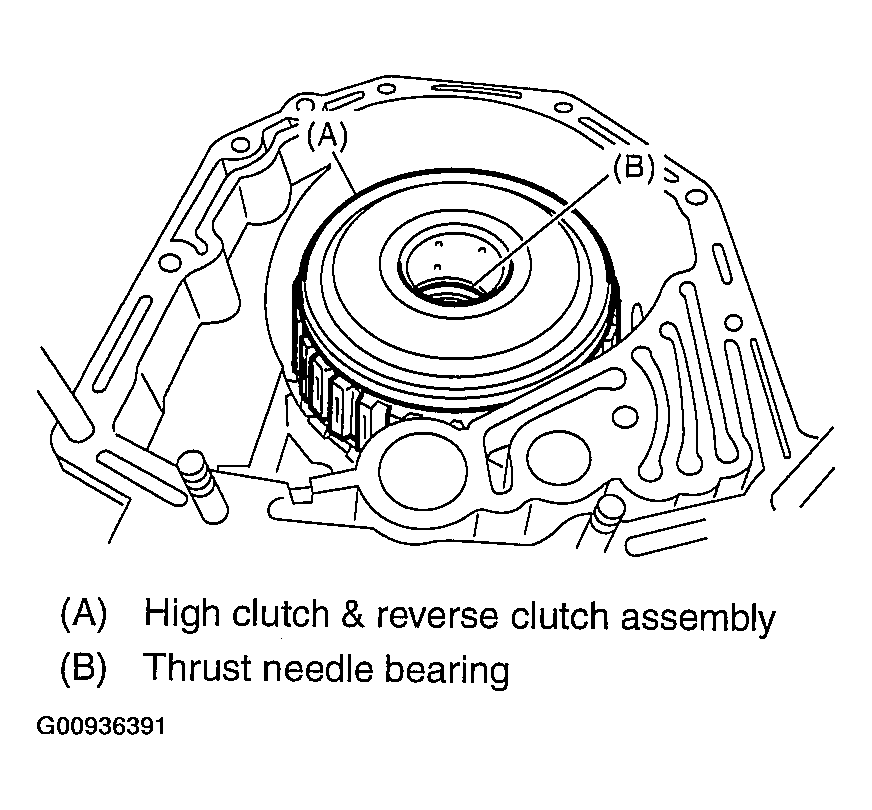

Take out the high clutch & reverse clutch assembly and thrust needle bearing.

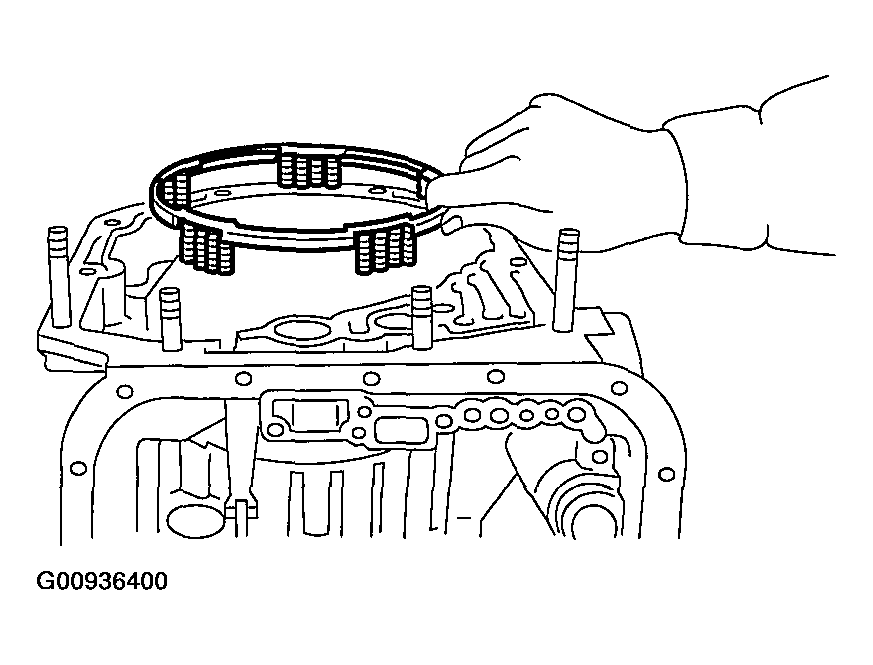

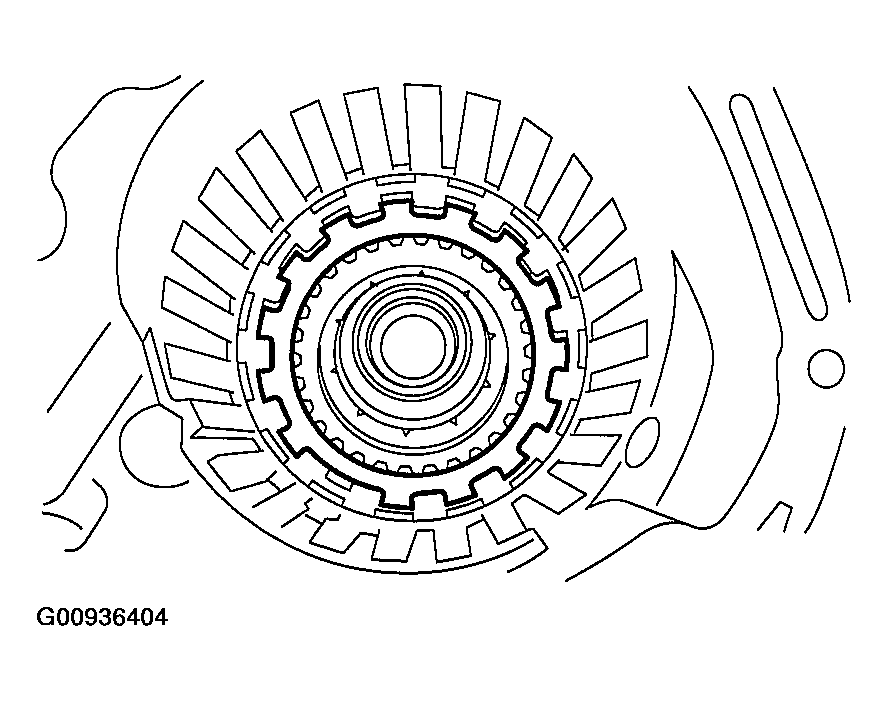

Fig 2: Identifying High Clutch And Reverse Clutch Assembly And Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Take out the high clutch hub and the thrust needle bearing.

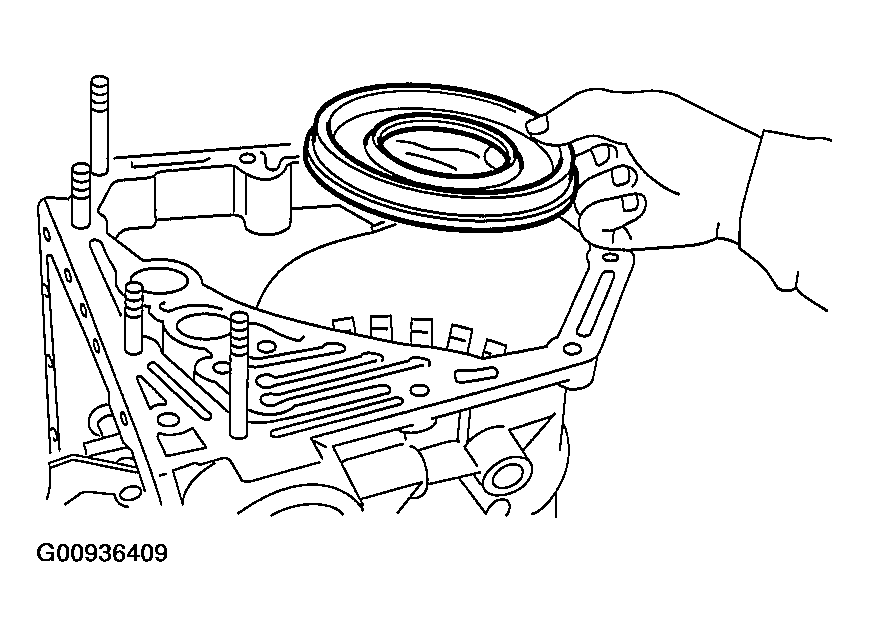

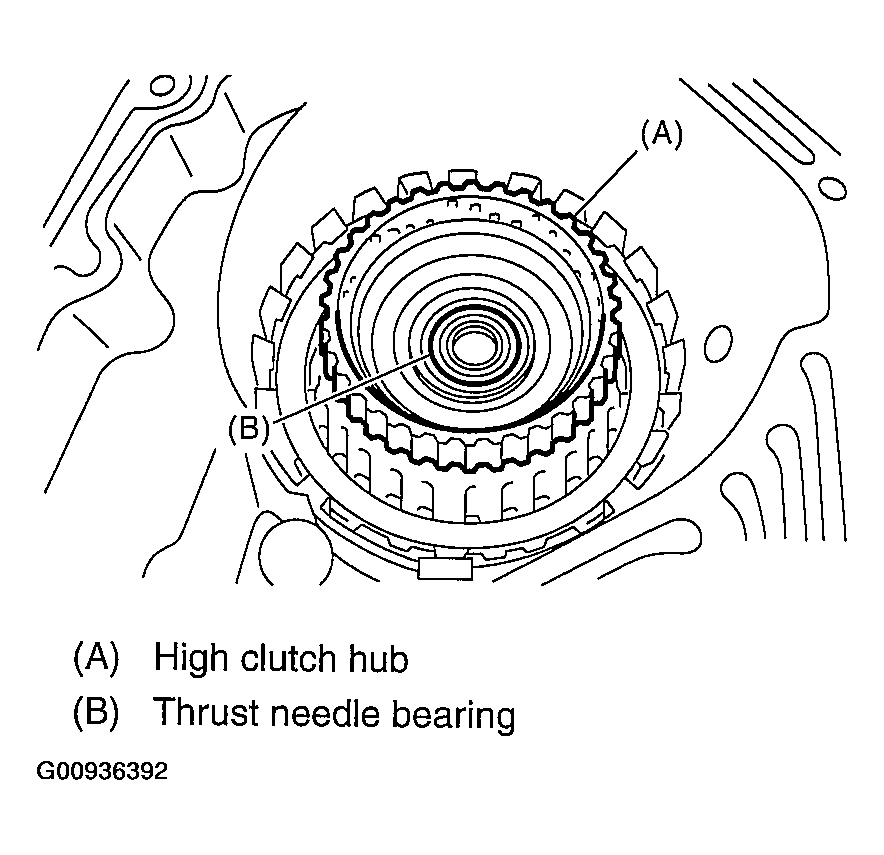

Fig 3: Taking Out High Clutch Hub And Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.

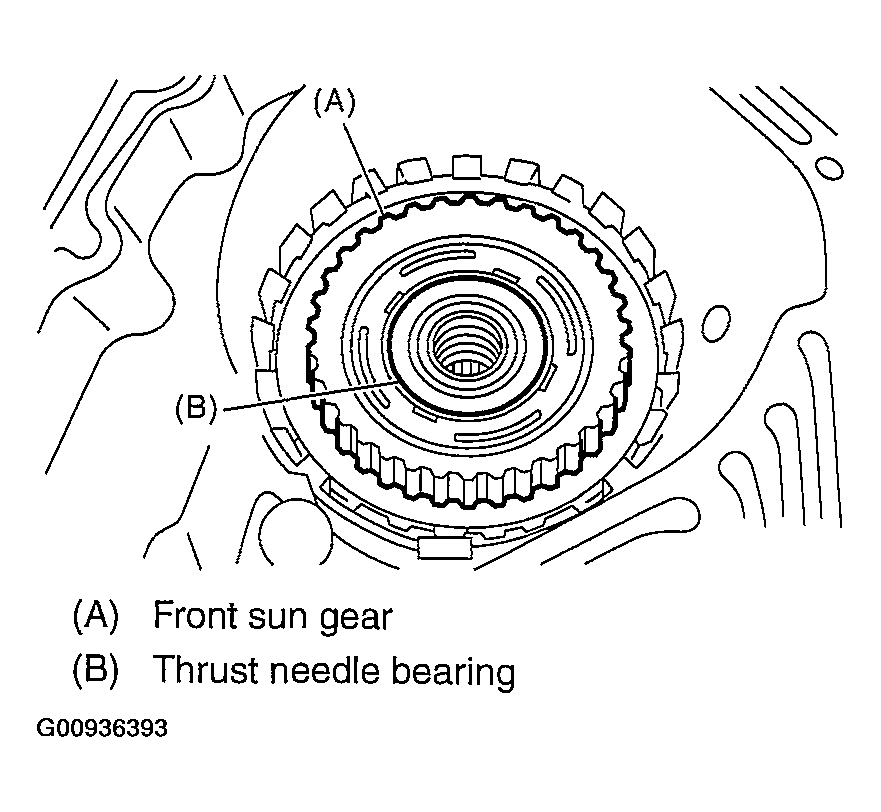

Take out the front sun gear and the thrust needle bearing.

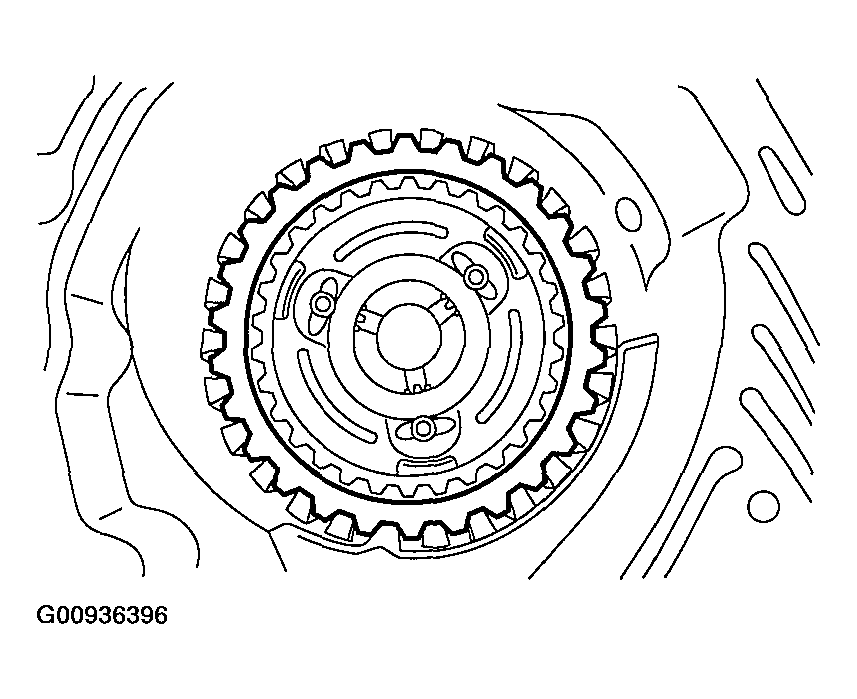

Fig 4: Taking Out Front Sun Gear And Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Pull out leaf spring of 2-4 brake without folding.
NOTE: Remove it while pressing down on lower leaf spring.

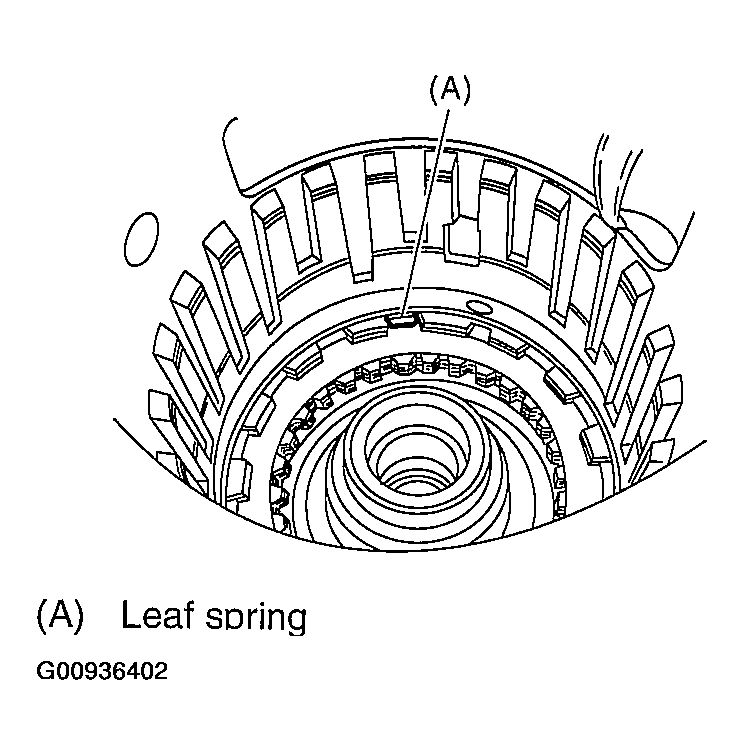

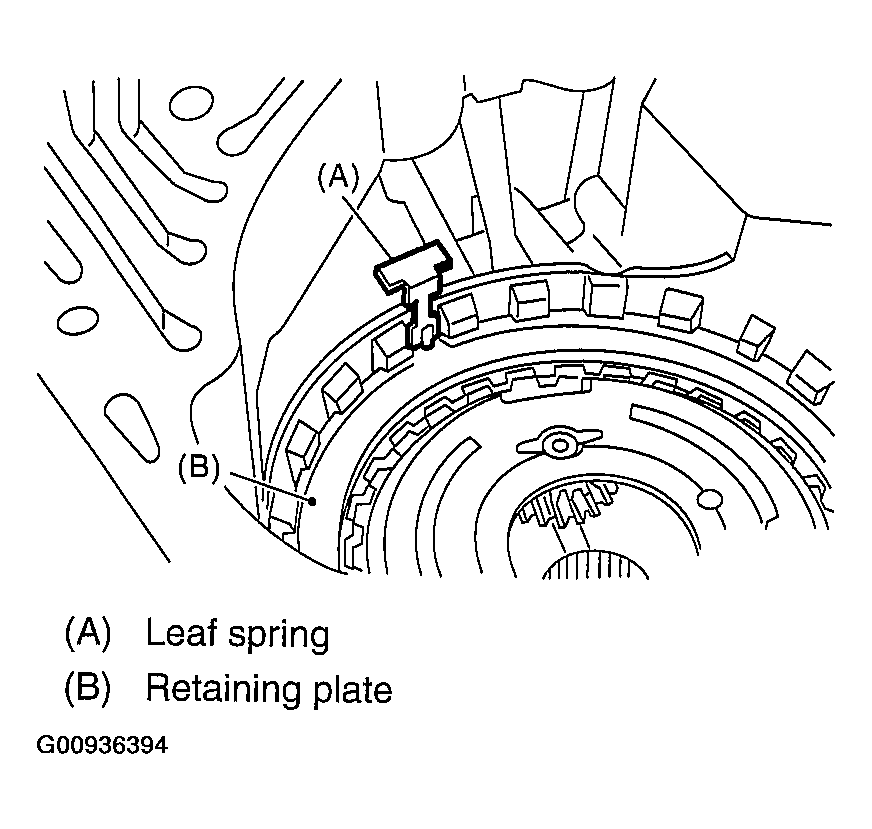

Fig 5: Identifying Lower Leaf Spring
Courtesy of SUBARU OF AMERICA, INC.

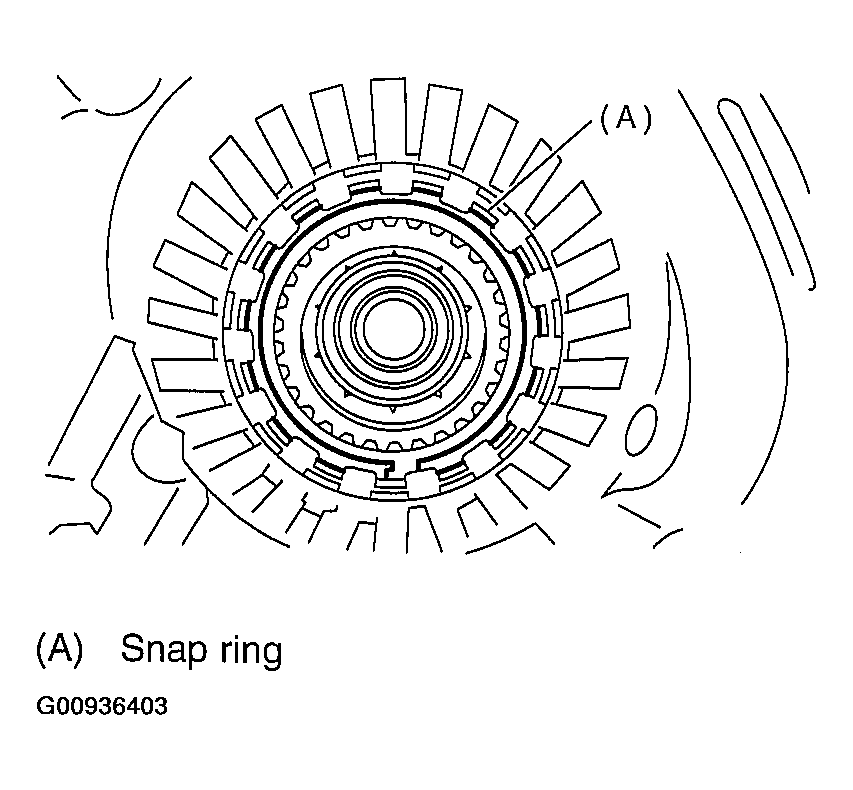

Remove snap ring and thrust needle bearing.

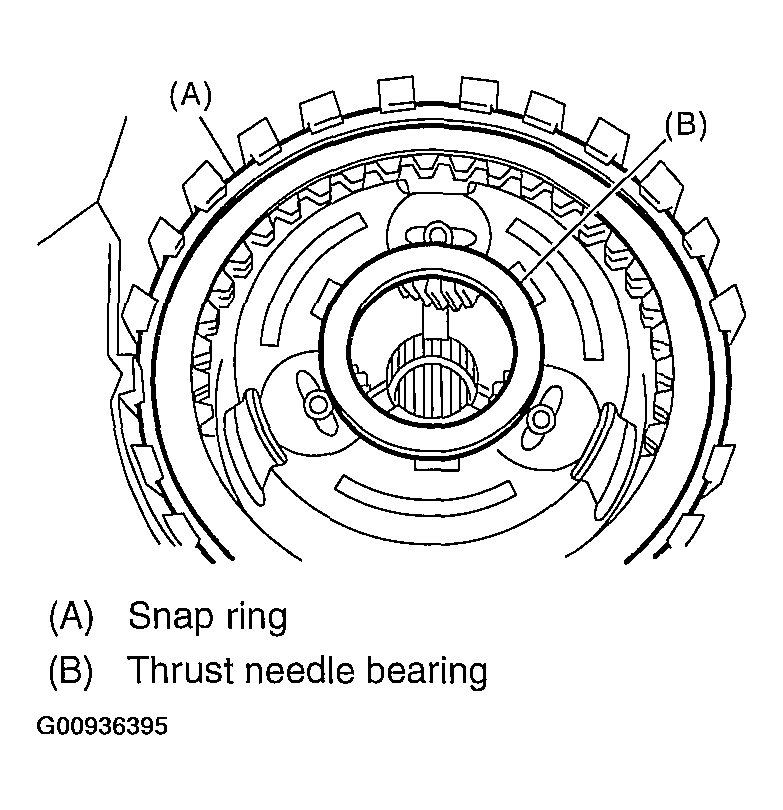

Fig 6: Identifying Snap Ring And Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Take out retaining plate, drive plate and driven plate of 2-4 brake.

Fig 7: Taking Out Retaining Plate, Drive Plate And Driven Plate Of 2-4 Brake
Courtesy of SUBARU OF AMERICA, INC.

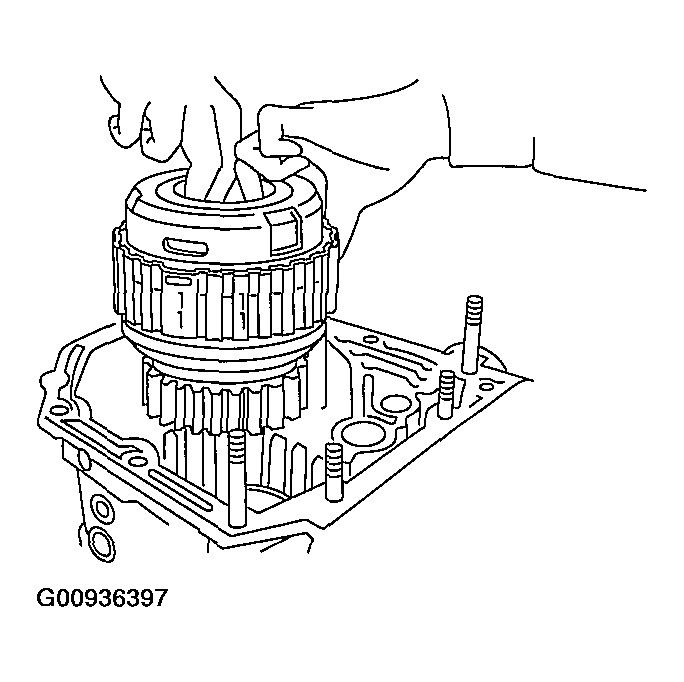

Take out the thrust needle bearing, planetary gear assembly and the low clutch assembly.

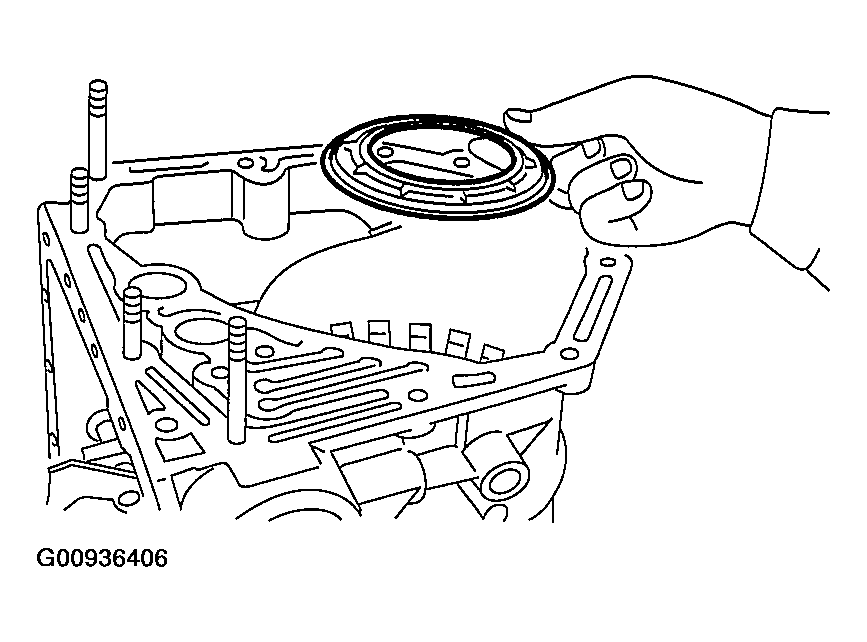

Fig 8: Taking Out Thrust Needle Bearing, Planetary Gear Assembly And Low Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.

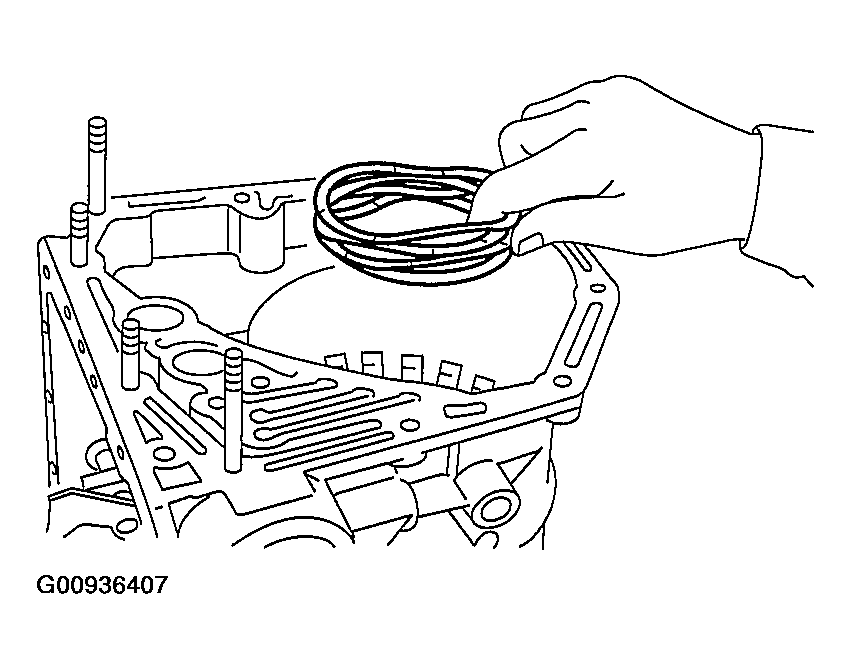

Remove 2-4 brake seal.

Fig 9: Identifying 2-4 Brake Seal
Courtesy of SUBARU OF AMERICA, INC.
Remove snap ring.

Fig 10: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Take out 2-4 brake spring retainer.

Fig 11: Taking Out 2-4 Brake Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.

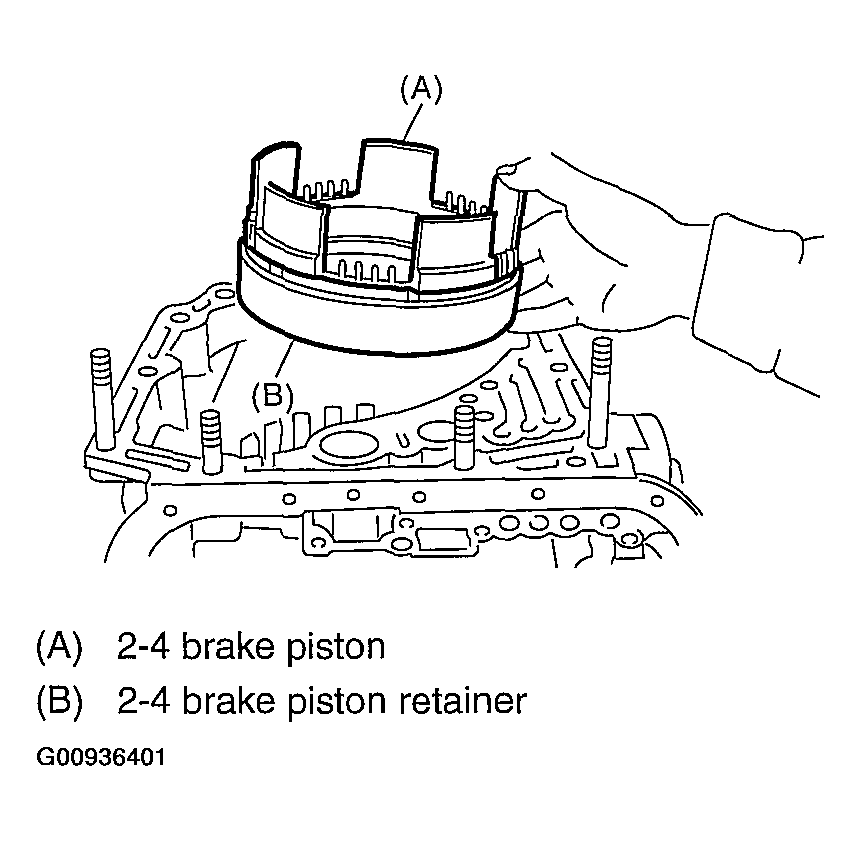

Remove the 2-4 brake piston and piston retainer without damaging.

Fig 12: Identifying 2-4 Brake Piston And Piston Retainer
Courtesy of SUBARU OF AMERICA, INC.
Pull out the leaf spring of low & reverse without folding.

Fig 13: Pulling Out Leaf Spring Of Low & Reverse Without Folding
Courtesy of SUBARU OF AMERICA, INC.
Remove snap ring.

Fig 14: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Take out retaining plate, drive plate, driven plate and dish plate of low & reverse.

Fig 15: Taking Out Retaining Plate, Drive Plate, Driven Plate And Dish Plate Of Low & Reverse
Courtesy of SUBARU OF AMERICA, INC.

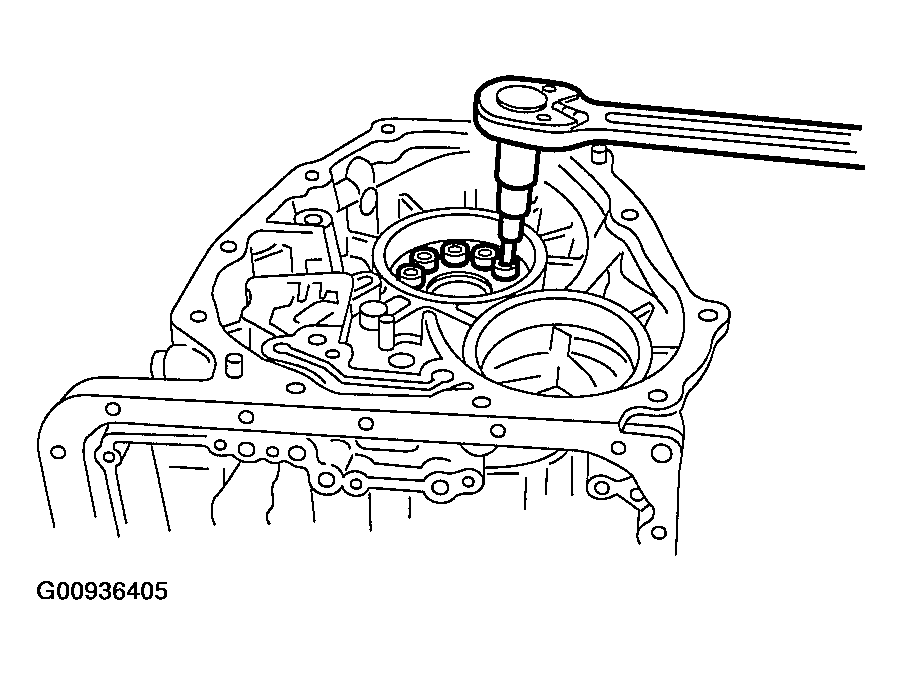

Turn the transmission case upside down, and then take out the socket bolts while holding the one-way clutch inner race with hand.

Fig 16: Turning Transmission Case Upside Down, And Then Taking Out Socket Bolts One-Way Clutch Inner Race With Hand
Courtesy of SUBARU OF AMERICA, INC.
Take out the spring retainer.

Fig 17: Taking Out Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
Take out the return spring.

Fig 18: Taking Out Return Spring
Courtesy of SUBARU OF AMERICA, INC.

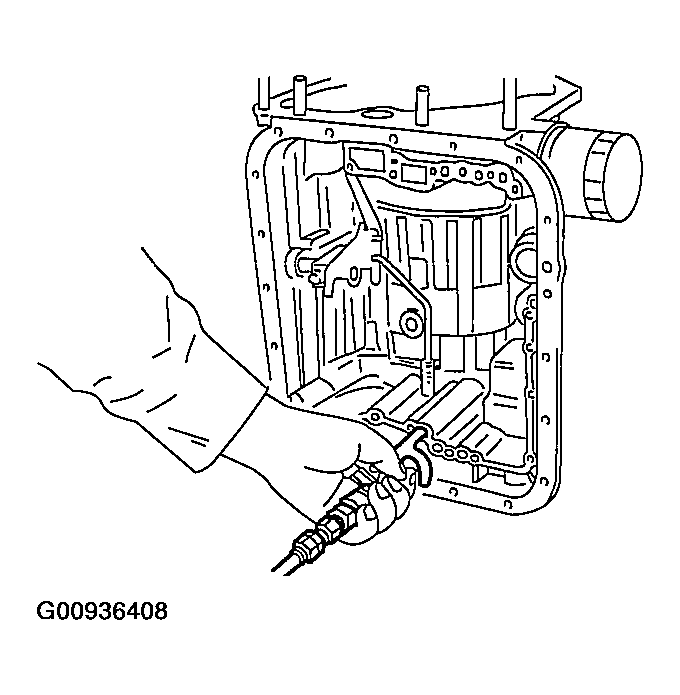

Apply compressed air.

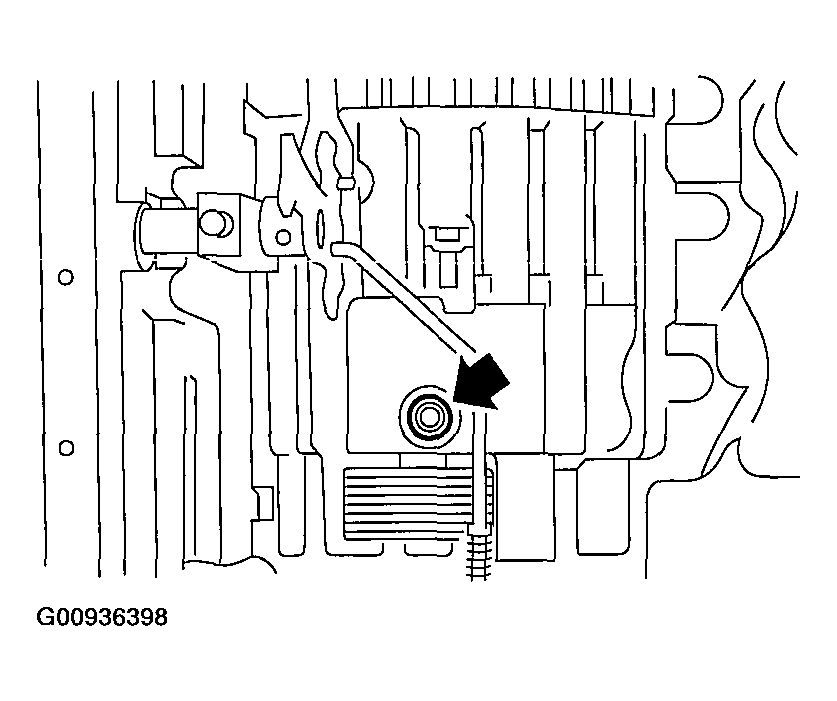

Fig 19: Applying Compressed Air
Courtesy of SUBARU OF AMERICA, INC.
Take out the low & reverse piston.

Fig 20: Taking Out Low & Reverse Piston
Courtesy of SUBARU OF AMERICA, INC.
