Dropping Resistor: Inspection

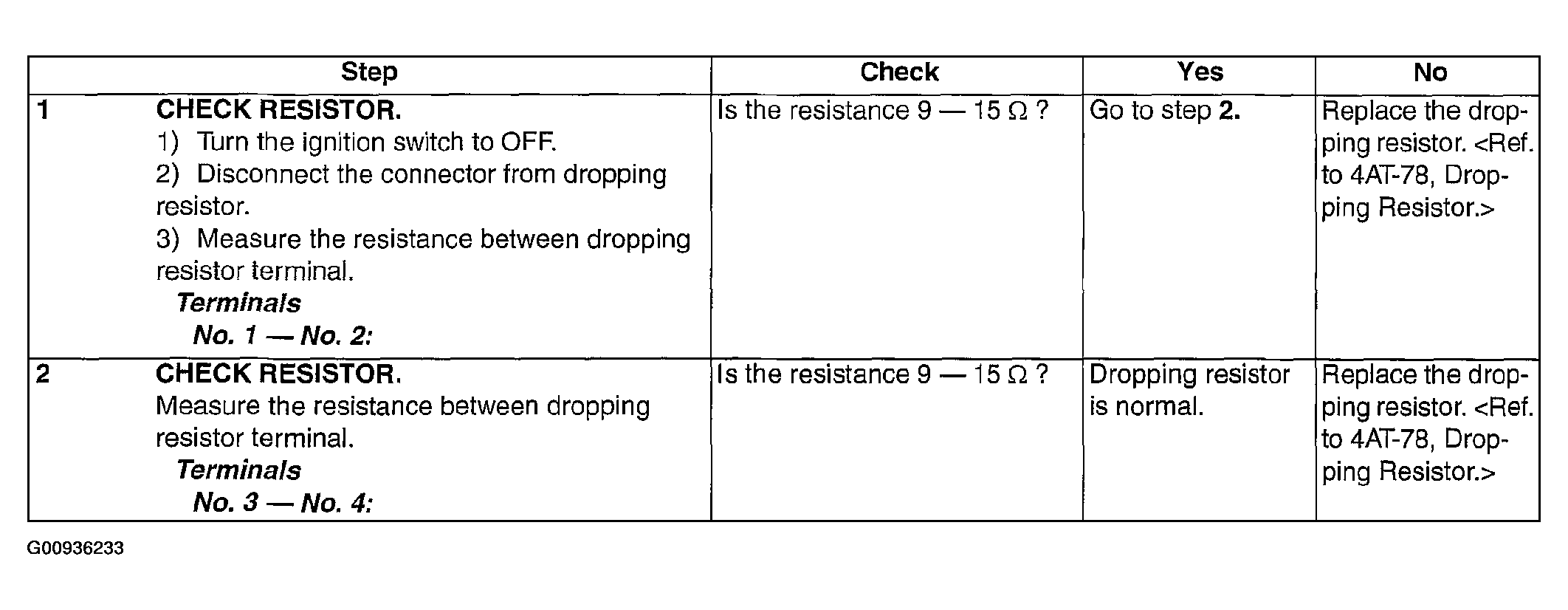

Fig 1: Resistance Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
