Extension Case: Removal

Remove the transmission assembly. < Ref. to REMOVAL . >
Remove rear vehicle speed sensor.
- NON-TURBO MODEL

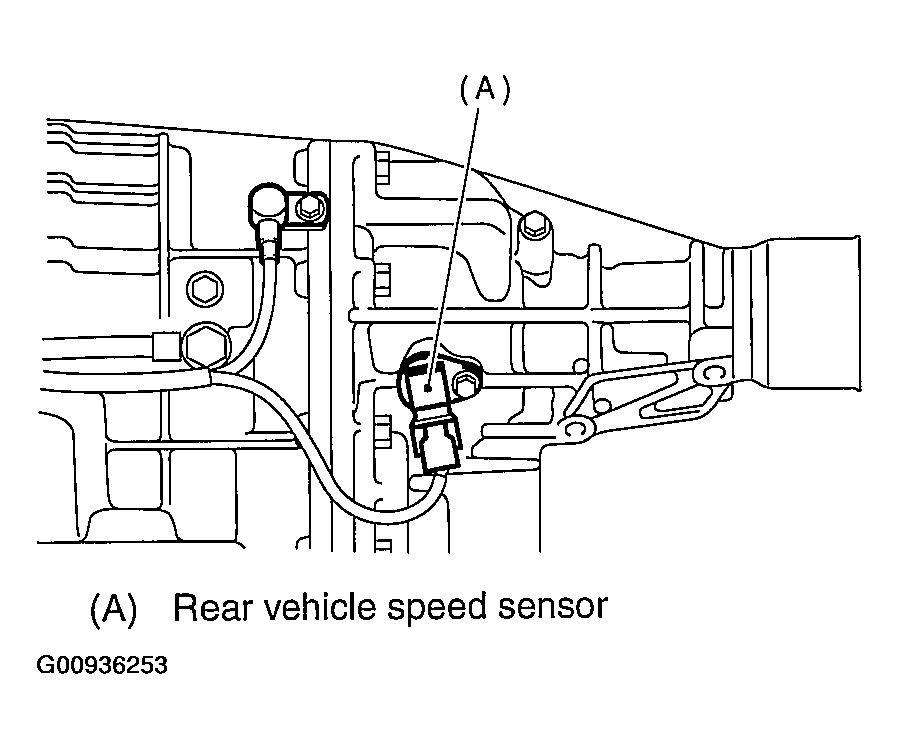

  Fig 1: Identifying Rear Vehicle Speed Sensor (Non-Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
- TURBO MODEL

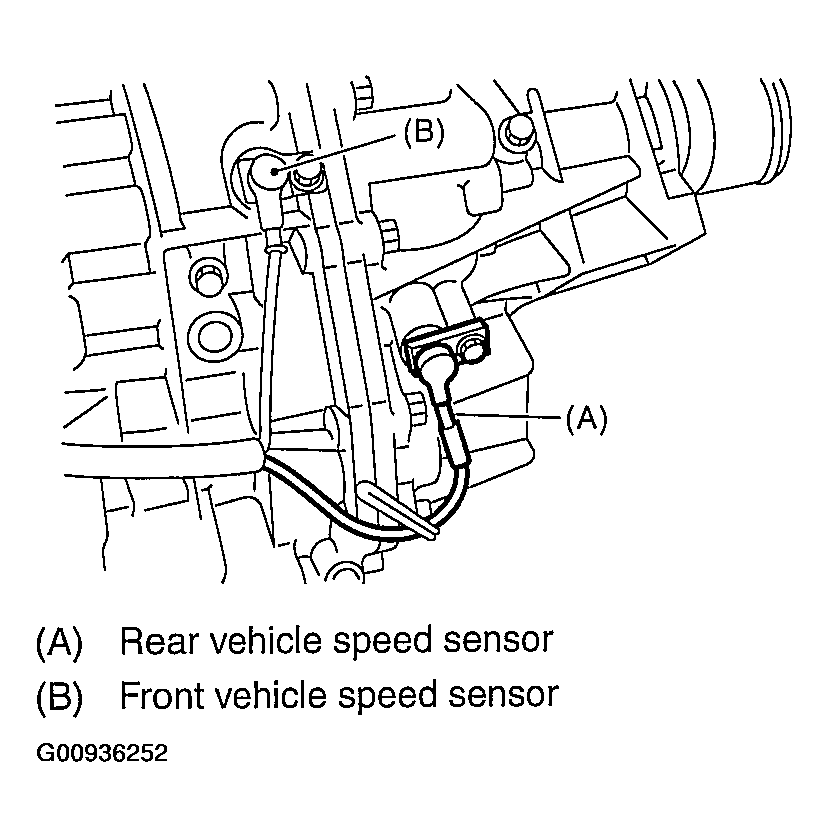

  Fig 2: Identifying Rear Vehicle Speed Sensor (Turbo Model)
  Courtesy of SUBARU OF AMERICA, INC.
Separate transmission case and extension case sections.

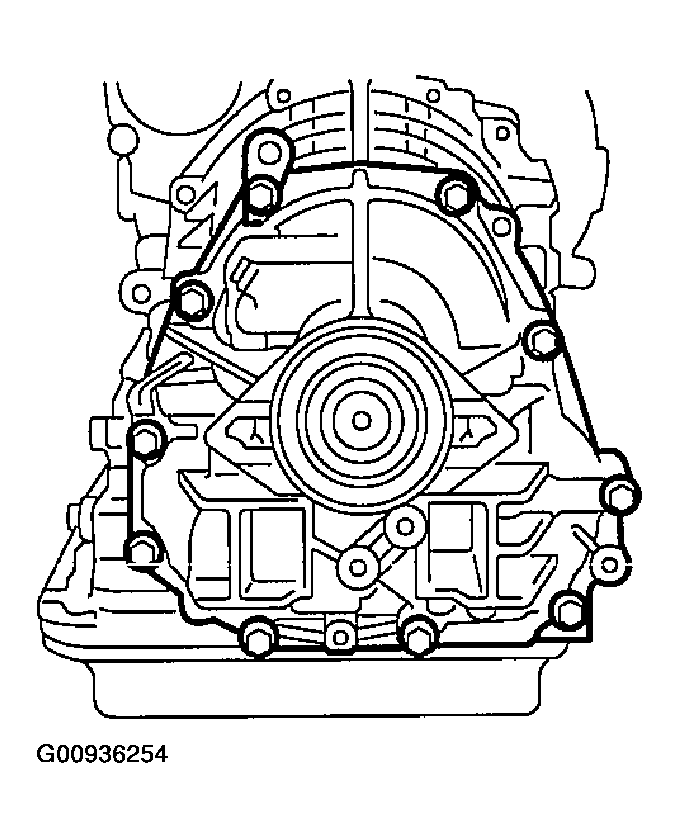

Fig 3: Separating Transmission Case And Extension Case Sections
Courtesy of SUBARU OF AMERICA, INC.
