Automatic Transmission
›
General Description
›
Component
›
Differential Gear
Differential Gear

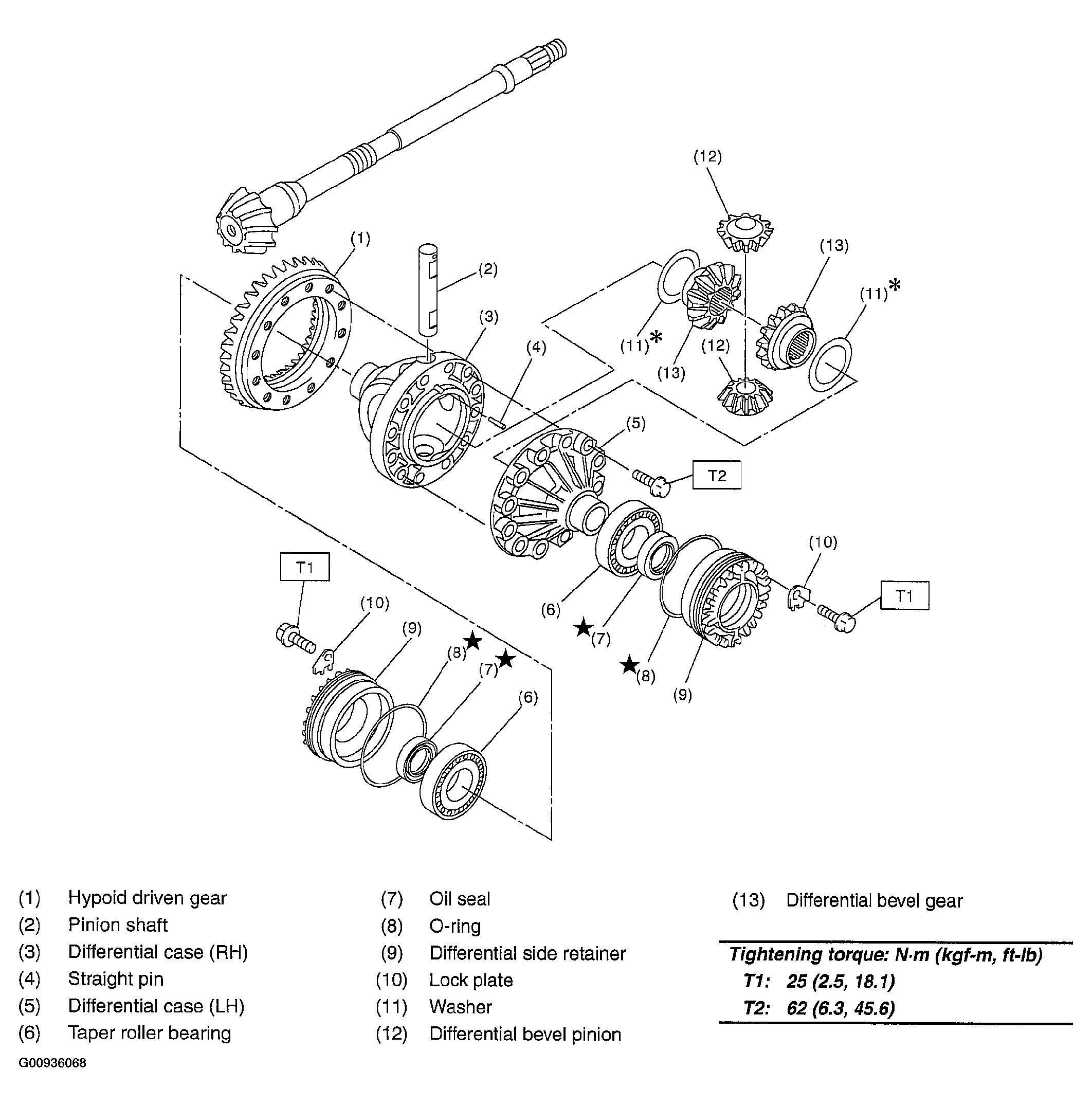

Fig 1: Differential Gear Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
