Automatic Transmission
›
General Description
›
Component
›
Oil Pump
Oil Pump

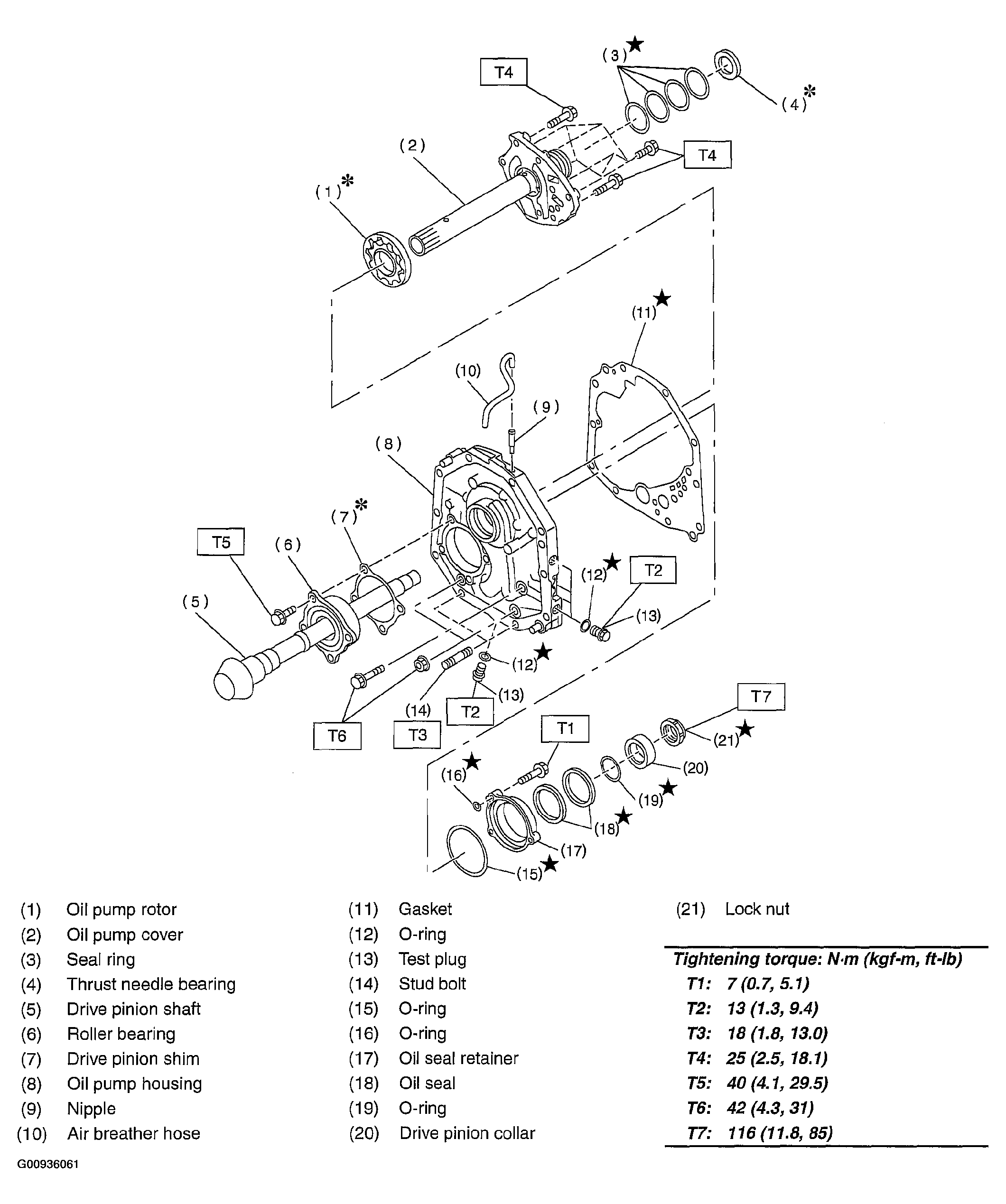

Fig 1: Oil Pump Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
