Transmission Mounting
Transmission Mounting

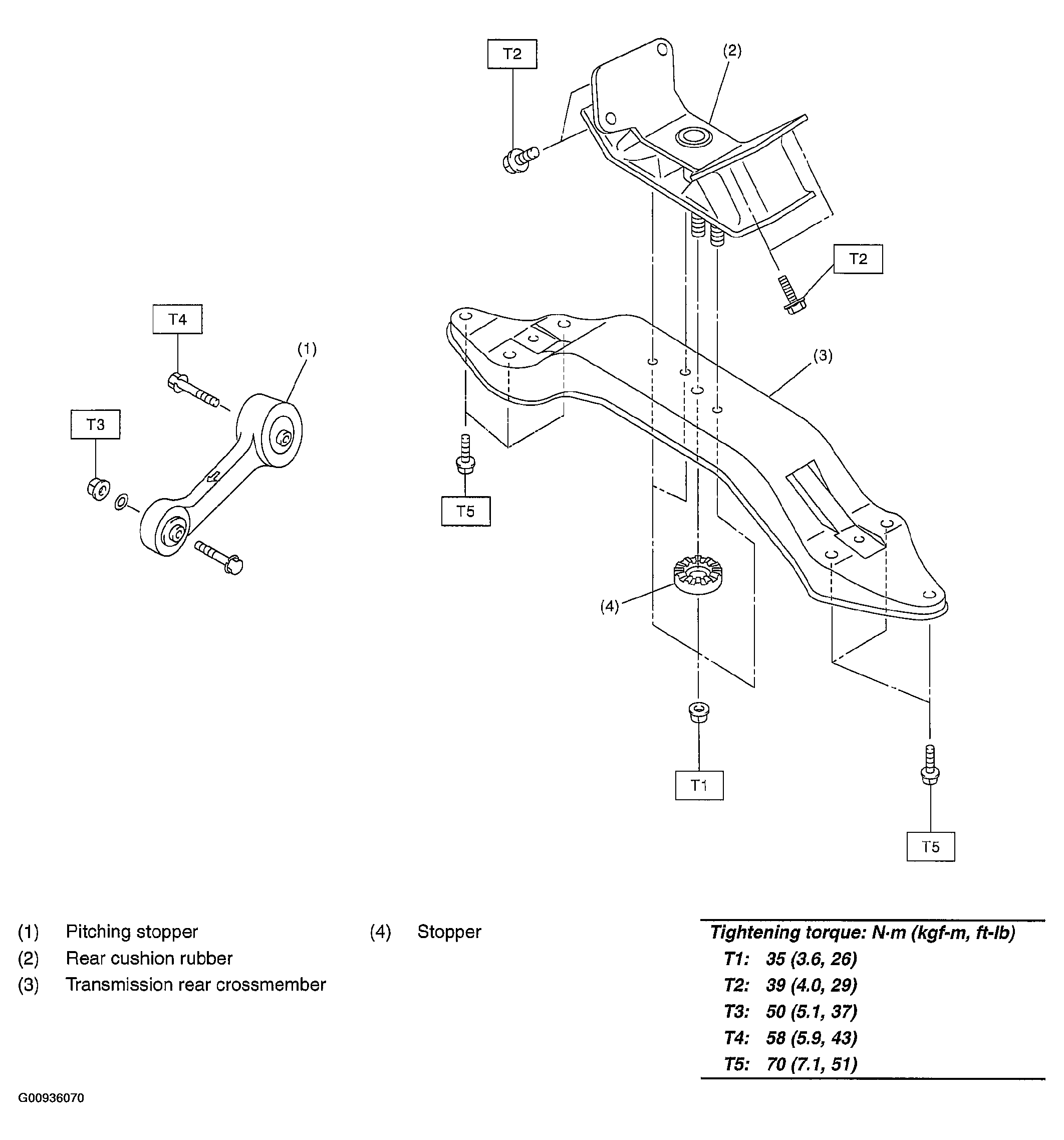

Fig 1: Transmission Mounting Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
