Automatic Transmission
›
General Description
›
Specifications
›
Hydraulic Control And Lubrication
Hydraulic Control And Lubrication

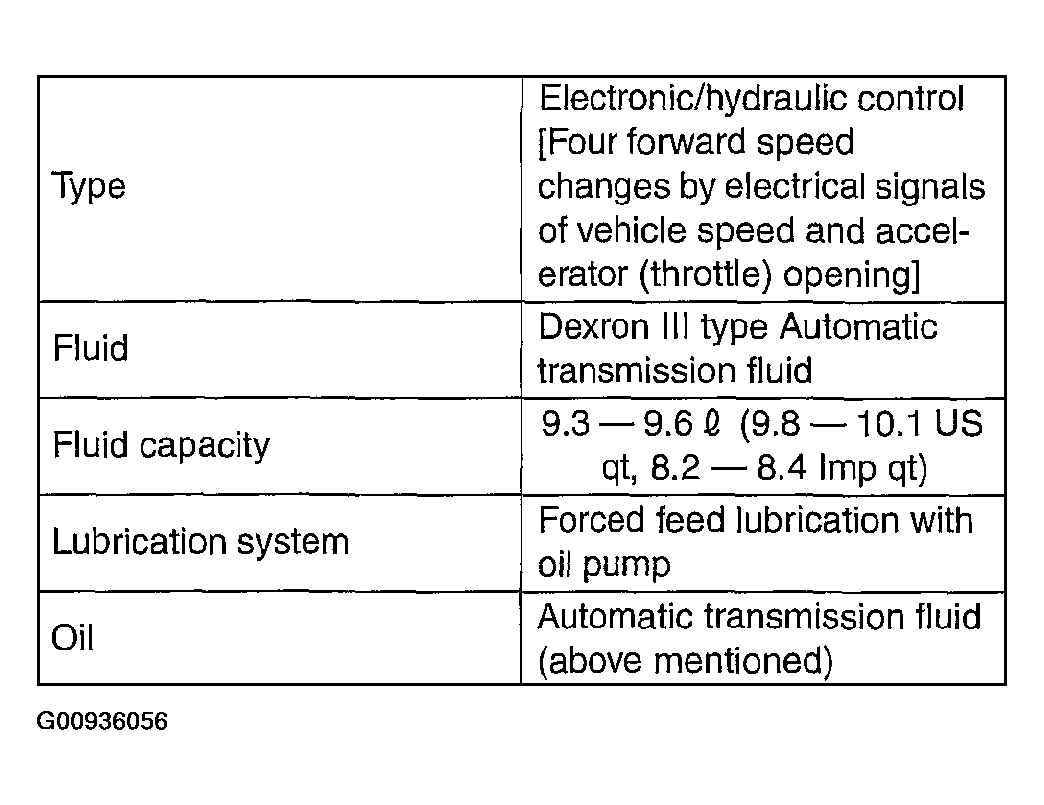

Fig 1: Hydraulic Control And Lubrication Specifications Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
