General Description
›
Specifications
›
Planetary Gear And Plate
Planetary Gear And Plate

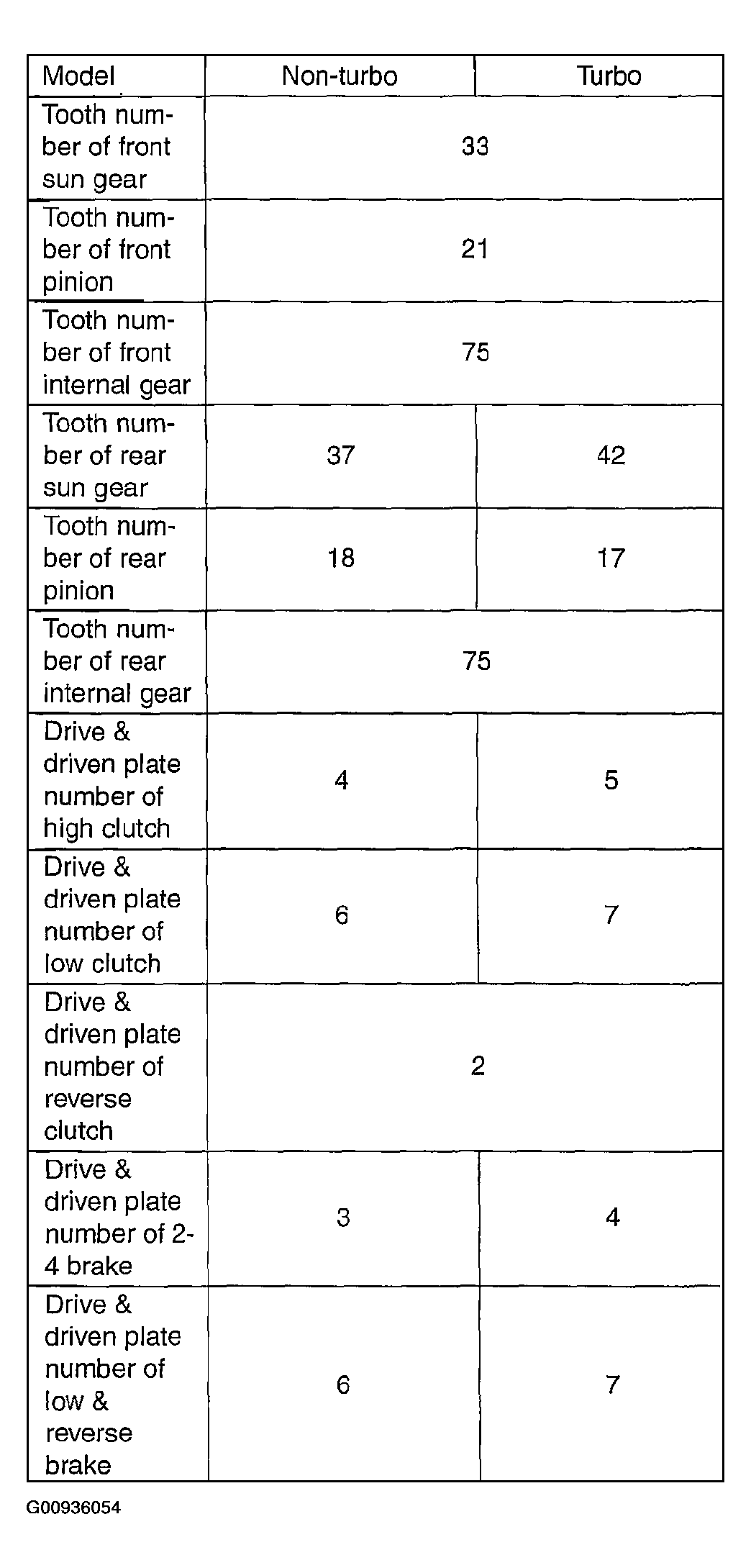

Fig 1: Planetary Gear And Plate Specifications Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
