Parking Pawl: Installation

  1. Install the parking pawl, shaft and return spring.

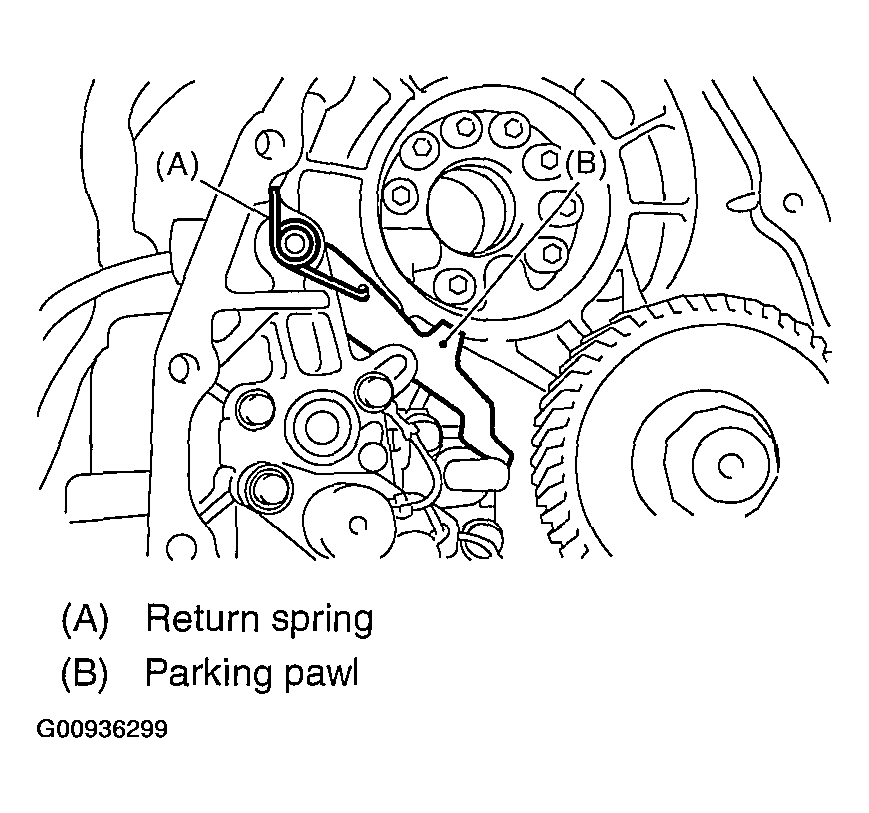

    Fig 1: Identifying Parking Pawl, Shaft And Return Spring
    G00936299Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction drive gear. < Ref. to INSTALLATION . >
  3. Install the rear vehicle speed sensor and extension case. < Ref. to INSTALLATION . >
  4. Install the transmission assembly to the vehicle. < Ref. to INSTALLATION . >
