Transmission Mounting System
›
Removal
›
Pitching Stopper
Pitching Stopper
Disconnect the ground cable from battery.
Remove the air cleaner case. (Non-turbo model)
< Ref. to
REMOVAL
, Air Cleaner Case . >
Remove the intercooler. (Turbo model)
< Ref. to
REMOVAL
, Intercooler . >
Remove the pitching stopper.

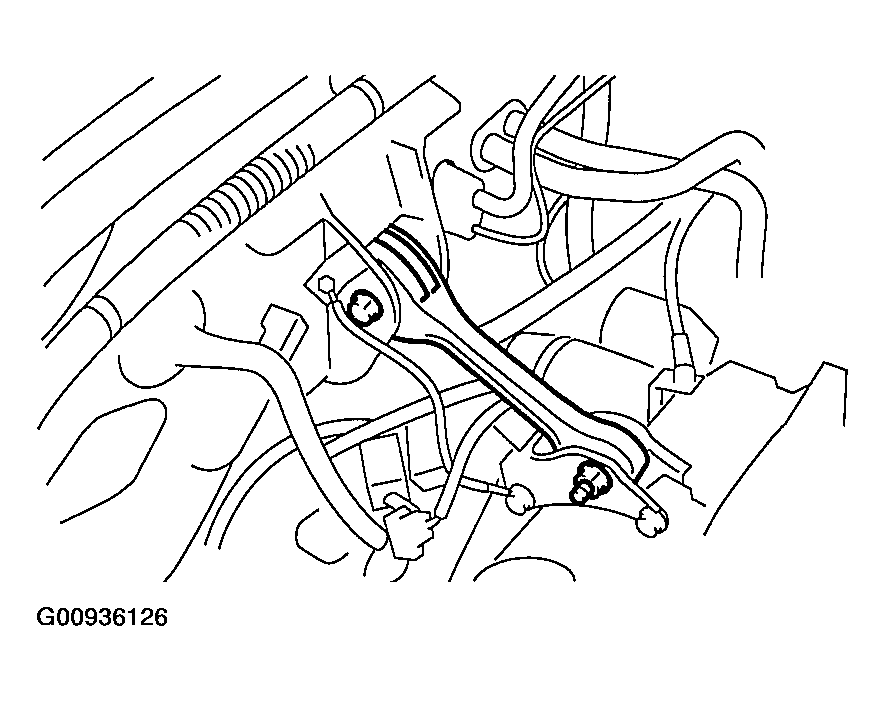

Fig 1: Identifying Pitching Stopper
Courtesy of SUBARU OF AMERICA, INC.
