A/T Shift Lock Solenoid and "P" Range Switch
›
Inspection
A/T Shift Lock Solenoid and "P" Range Switch: Inspection

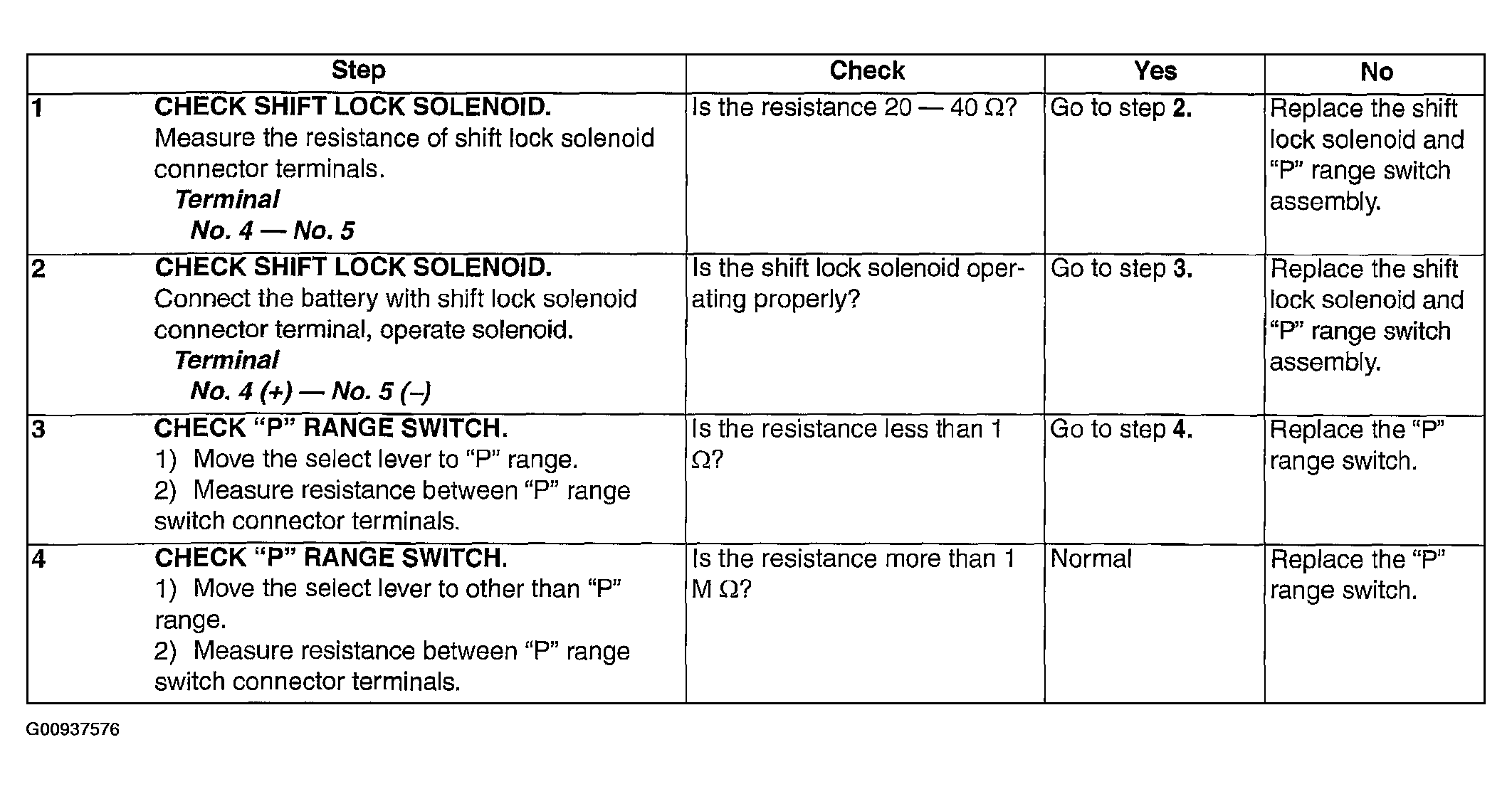

Fig 1: Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
