Transmission Control Systems
›
A/T Control Systems
›
A/T Shift Lock System
›
Electrical Specification
Electrical Specification

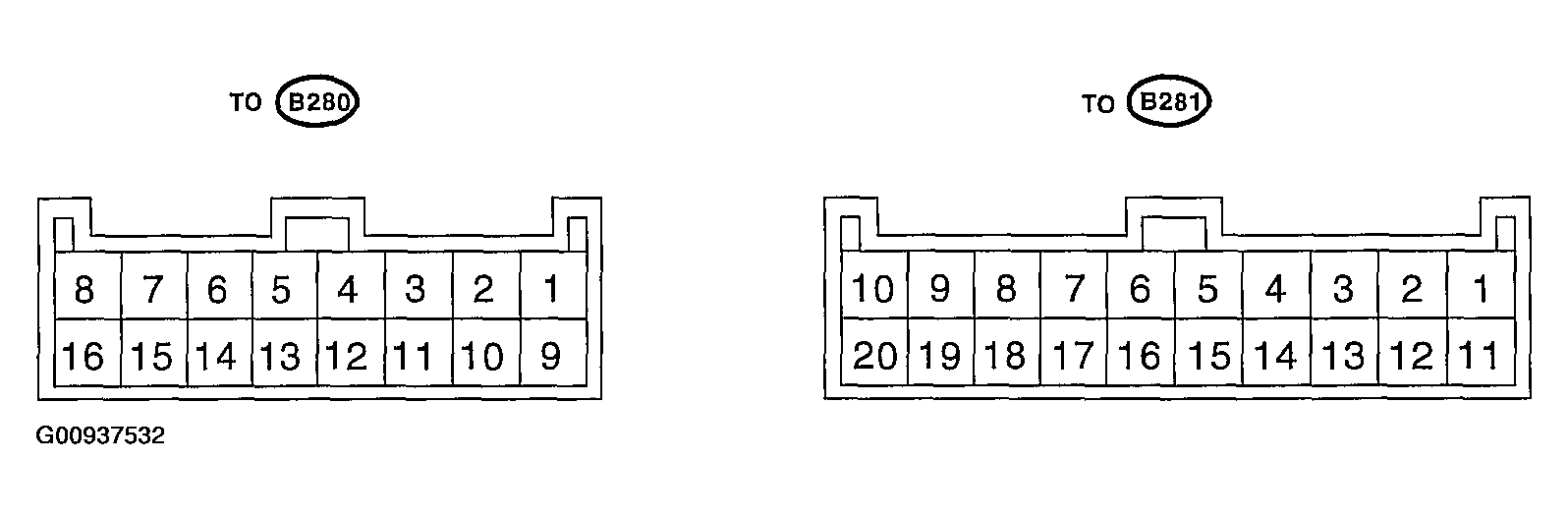

Fig 1: Identifying Electrical A/T Shift Lock System Connectors
Courtesy of SUBARU OF AMERICA, INC.

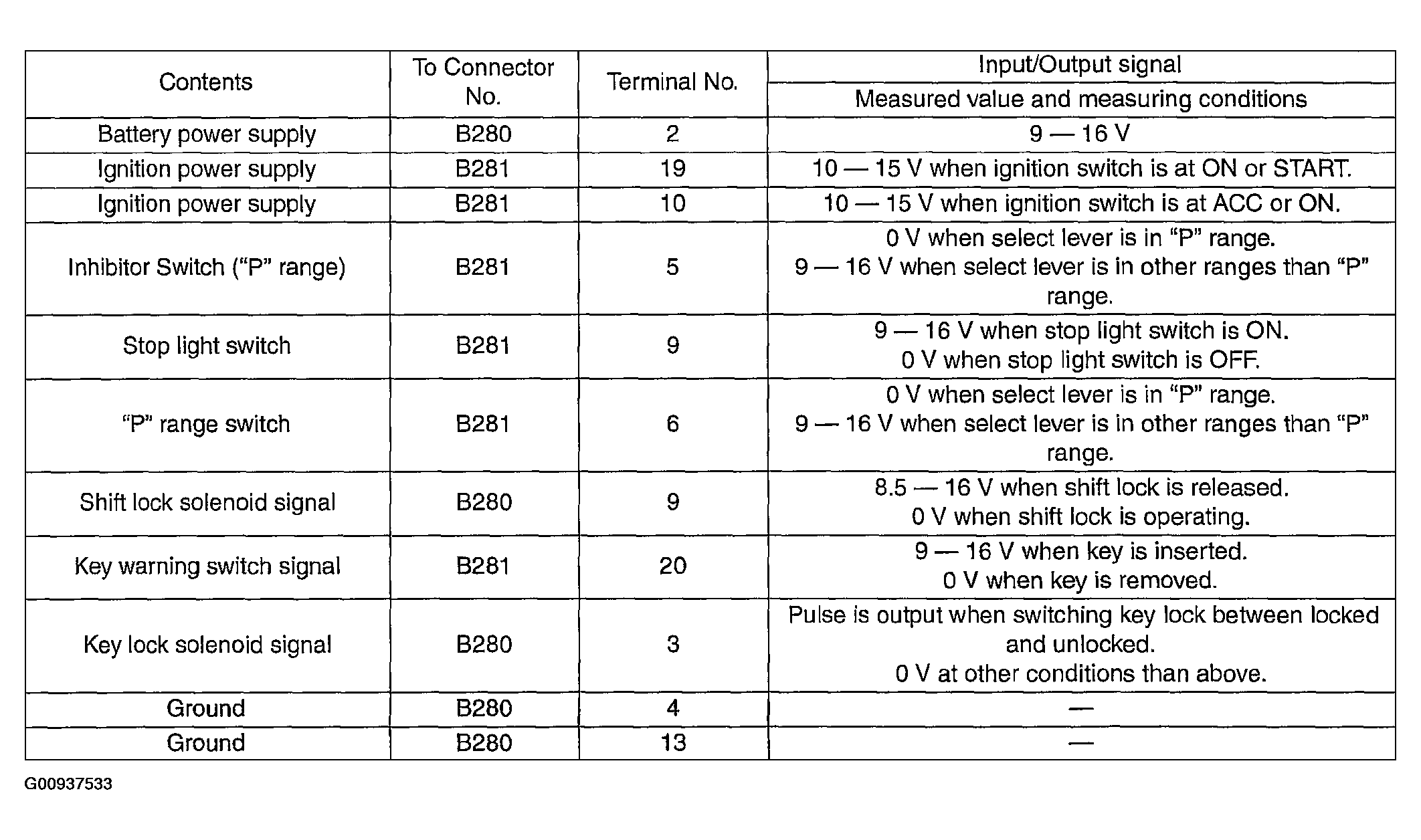

Fig 2: Terminal Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
