Inspection
›
Shift Lock Operation
Shift Lock Operation

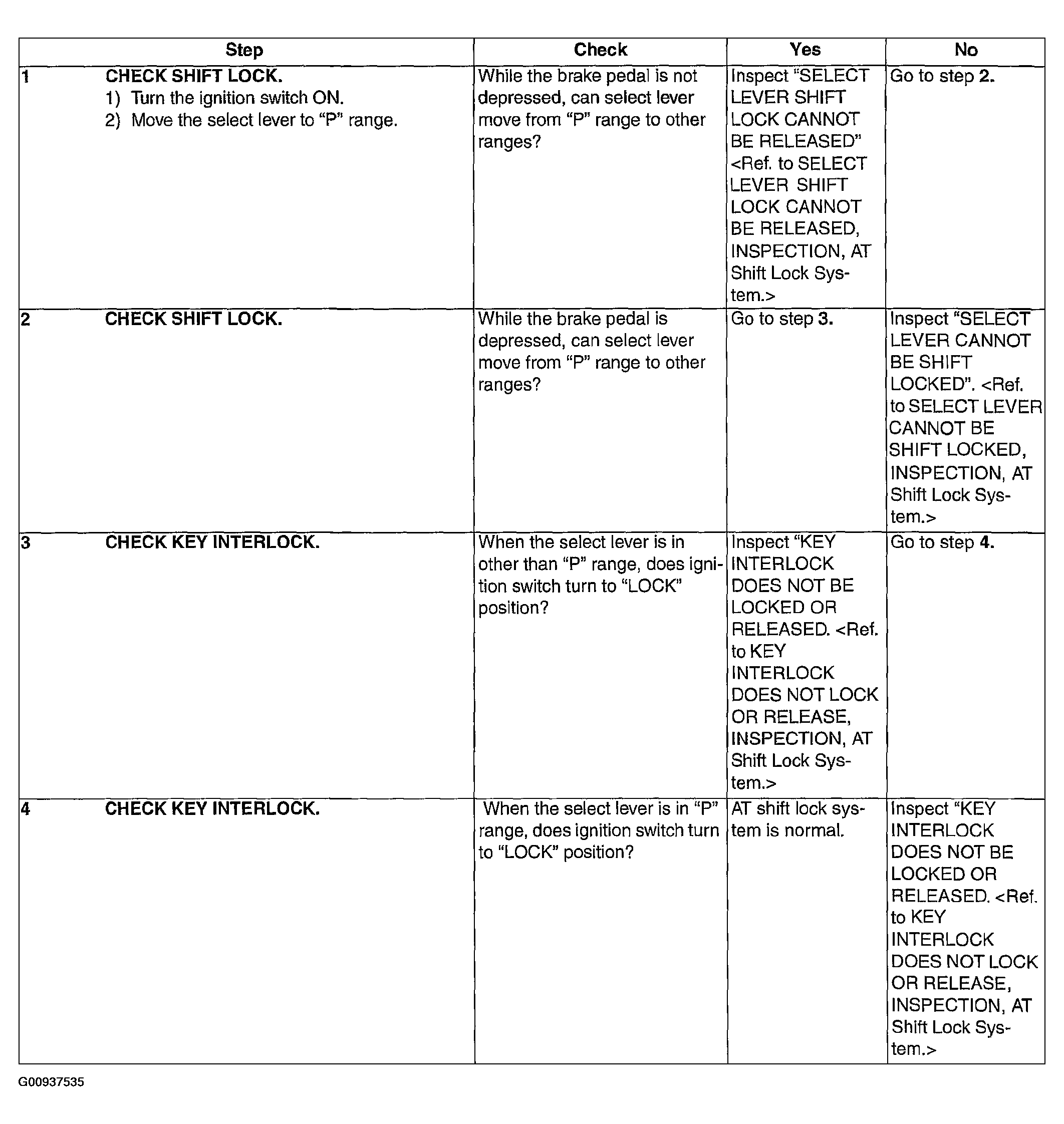

Fig 1: Shift Lock Operation Inspection Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
