FixVault
Home
›
Subaru
›
2004
›
Forester XT, Standard
›
Repair and Diagnosis
›
Accessories & Equipment
›
Cruise Control Systems
›
Cruise Control - Mechanism & Function
›
Cruise Control
›
Schematic
›
Non-Turbo Models
Non-Turbo Models

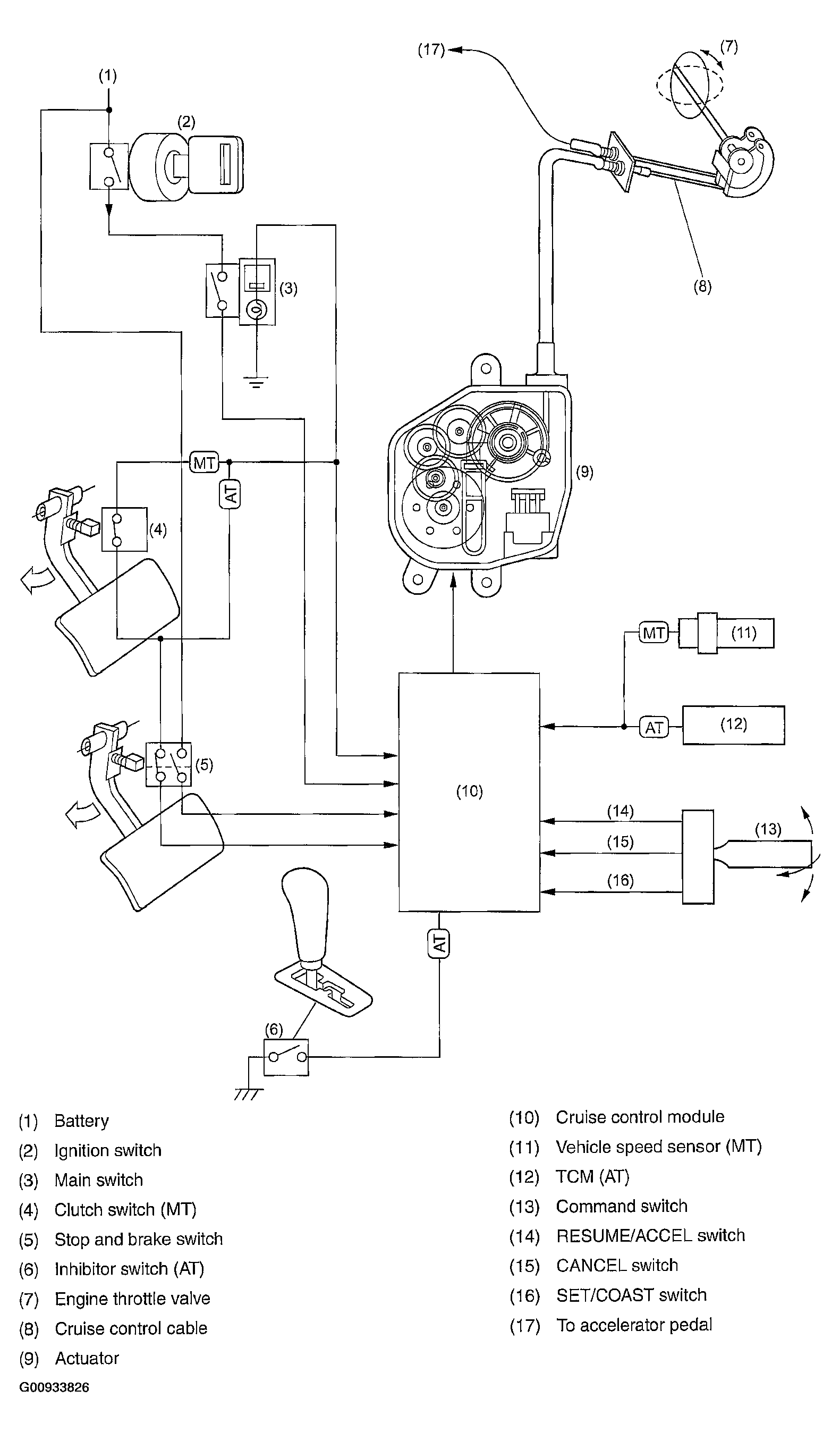

Fig 1: Identifying Schematic Diagram Of Non-Turbo Models
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
