Power Window
›
Schematic Drawings
Schematic Drawings

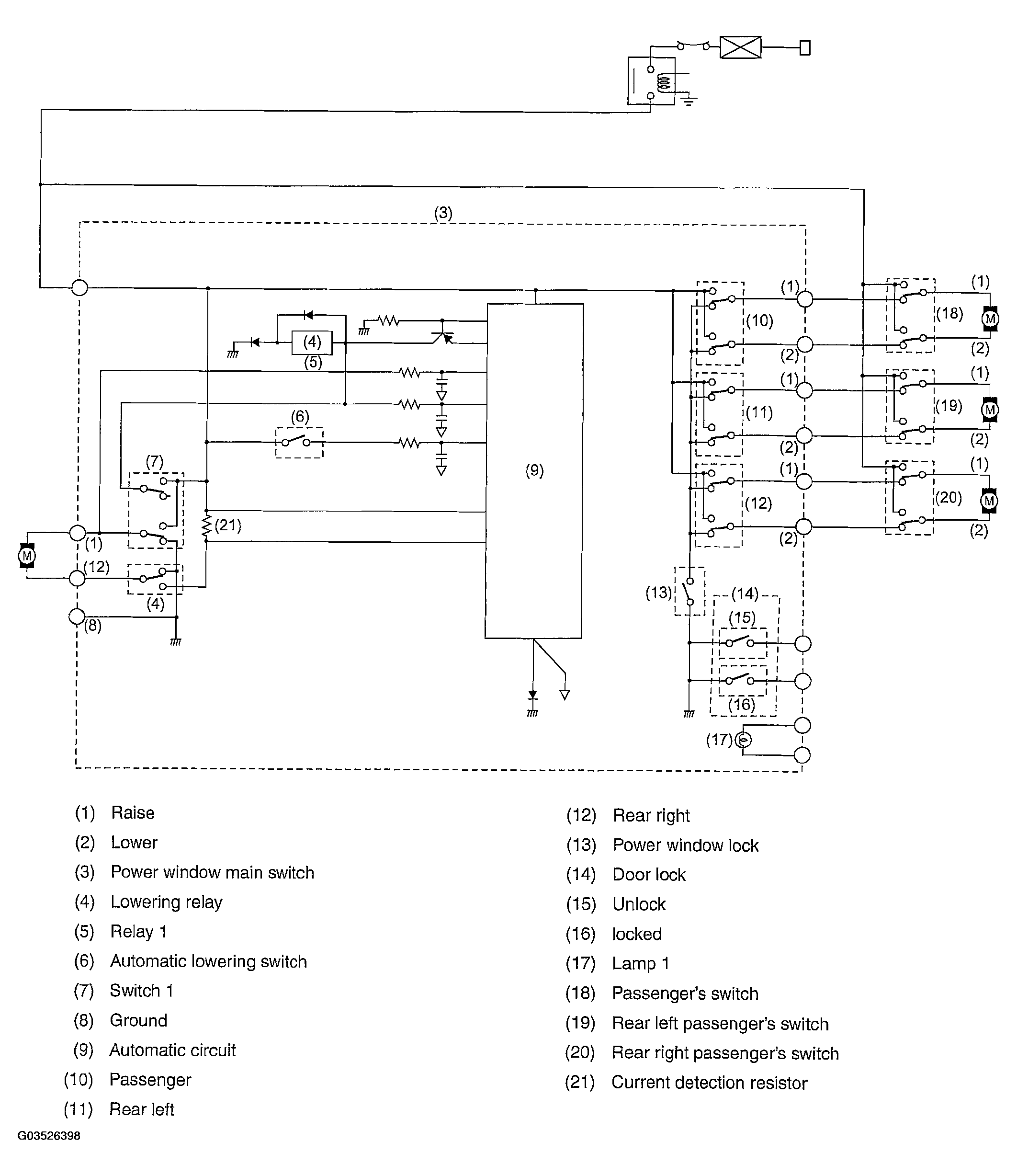

Fig 1: Schematic Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
