With SUBARU Select Monitor

CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM&H/U connector during removal and installation.

NOTE:

To check the harness for broken wires or short circuits, shake it while holding it or the connector.
Check list for interview. < Ref. to CHECK LIST FOR INTERVIEW .>

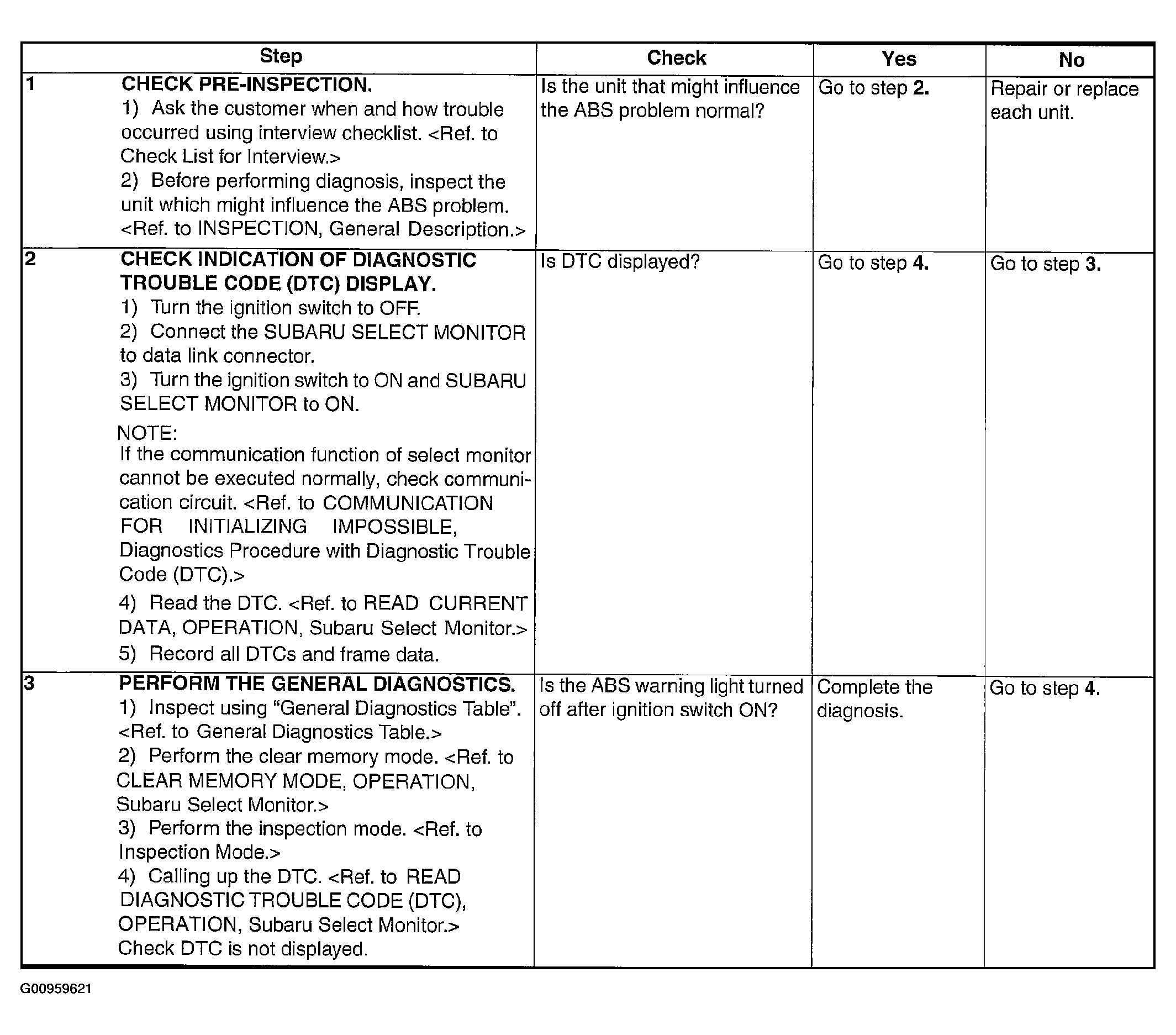

Fig 1: Diagnostic Procedure Chart (With Subaru Select Monitor) (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

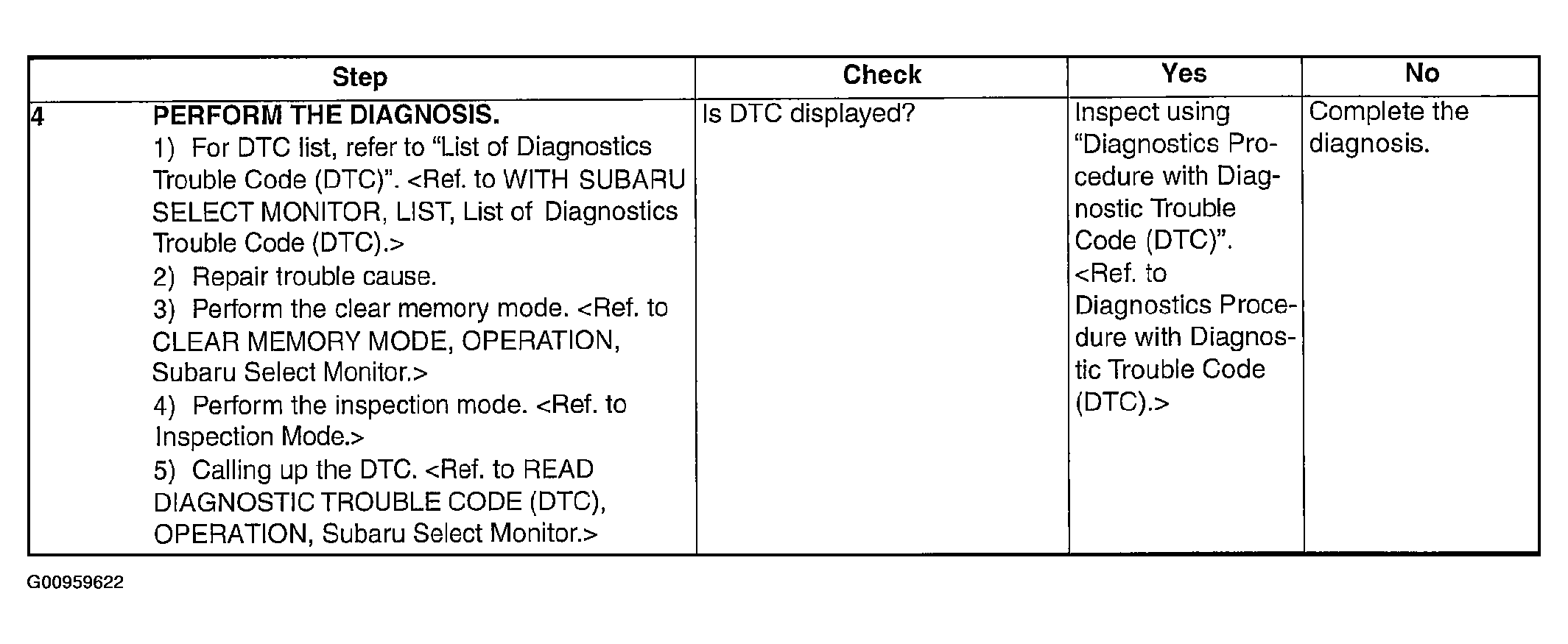

Fig 2: Diagnostic Procedure Chart (With Subaru Select Monitor) (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
