Diagnostics Procedure With Diagnostic Trouble Codes
›
DTC 41: Abs Control Module Malfunction
›
Diagnostic Chart
Diagnostic Chart

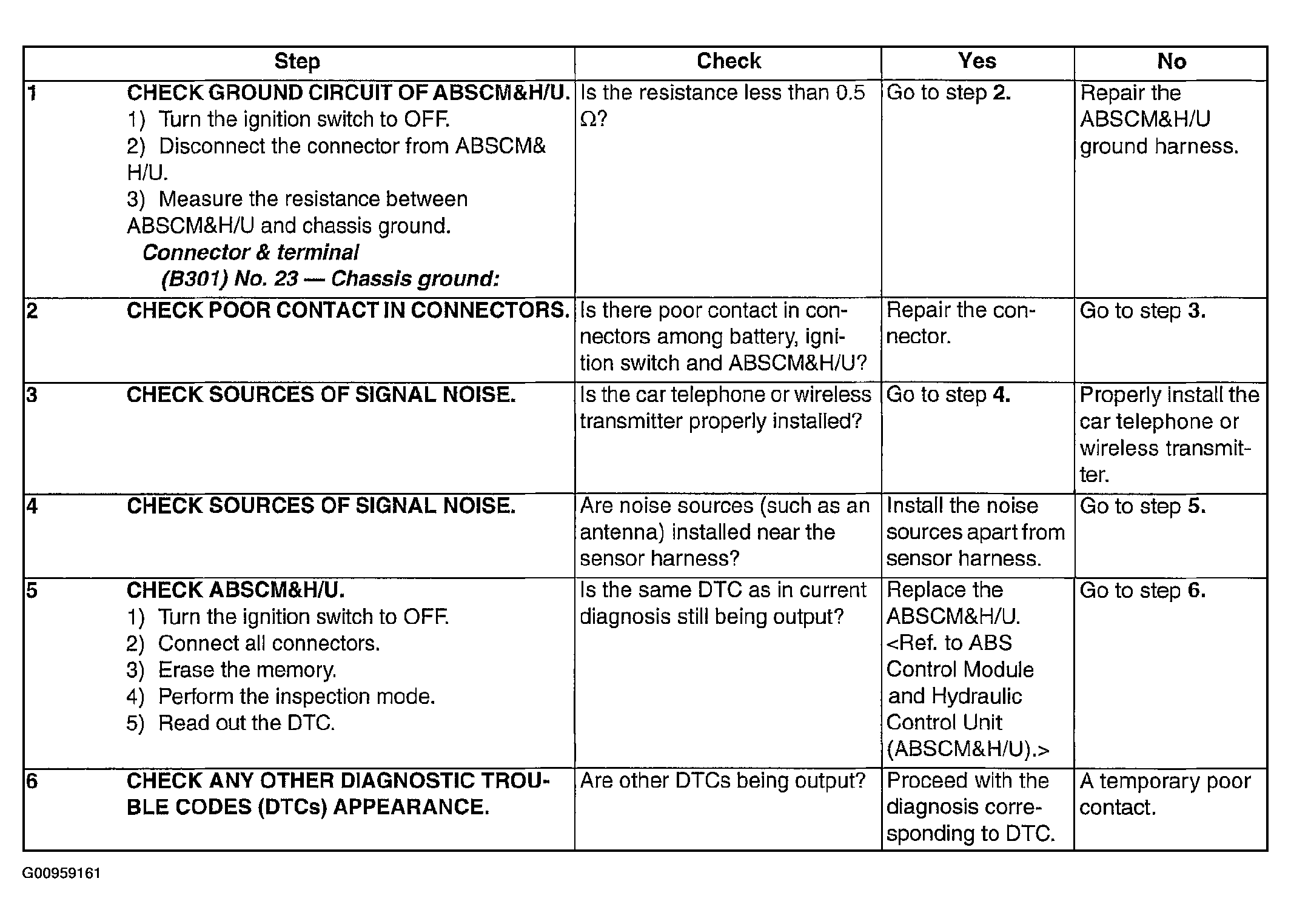

Fig 1: Diagnostics Procedure Chart - DTC 41 ABS Control Module Malfunction
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
