Freeze Frame Data

NOTE:

Data stored at the time of trouble occurrence is shown on display.
Each time trouble occurs, the latest information is stored in the freeze frame data in memory.
Freeze frame data will be memorized maximum to three.
If freeze frame data is not properly stored in memory (due to a drop in ABSCM power supply, etc.), a DTC, preceded by a question mark "?", appears on the select monitor display. This shows it may be an unreliable reading.

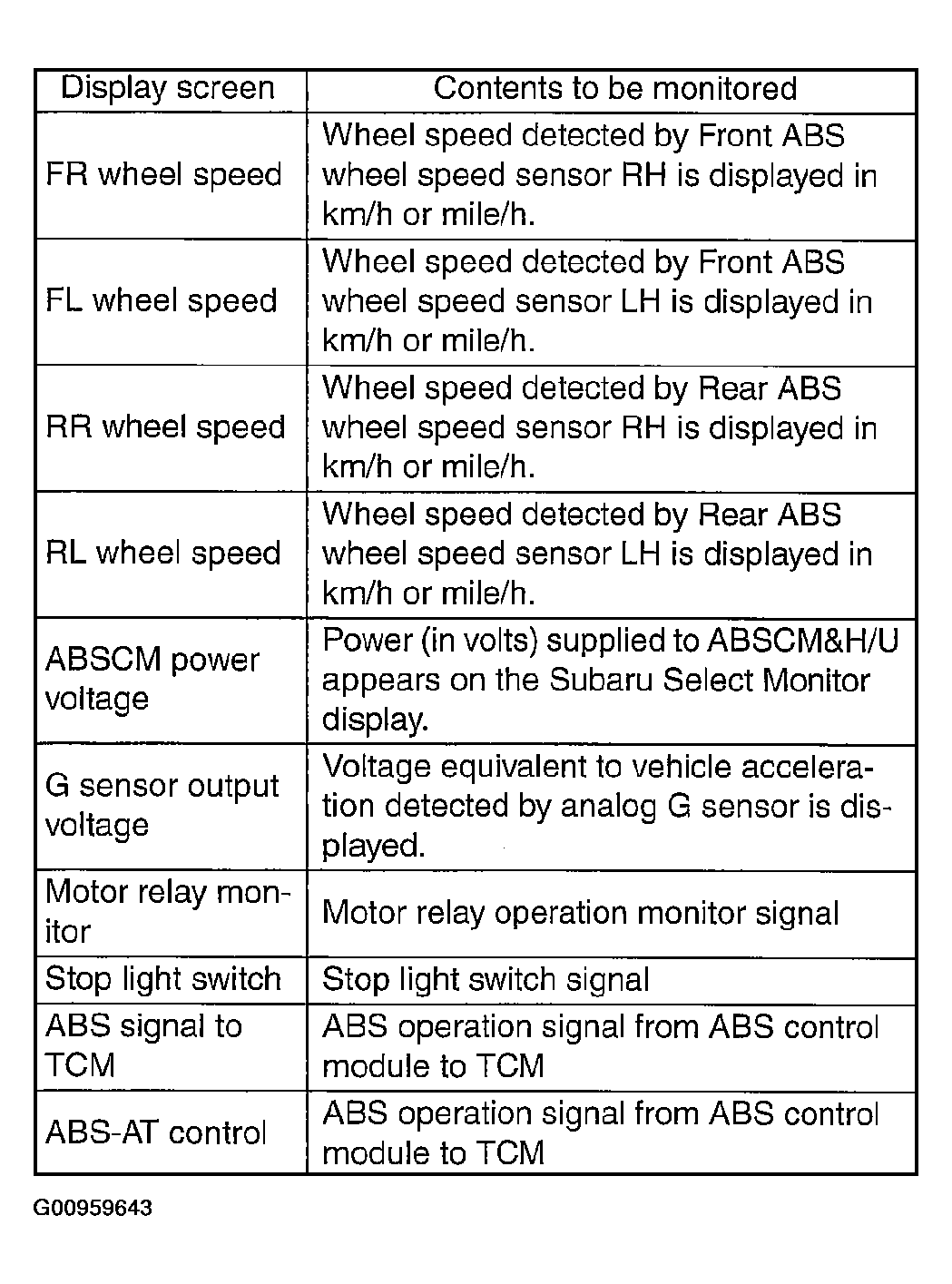

Fig 1: Subaru Select Monitor Display (Freeze Frame Data) (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Subaru Select Monitor Display (Freeze Frame Data) (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
