Under-Dash Fuse/Relay Box
NOTE:

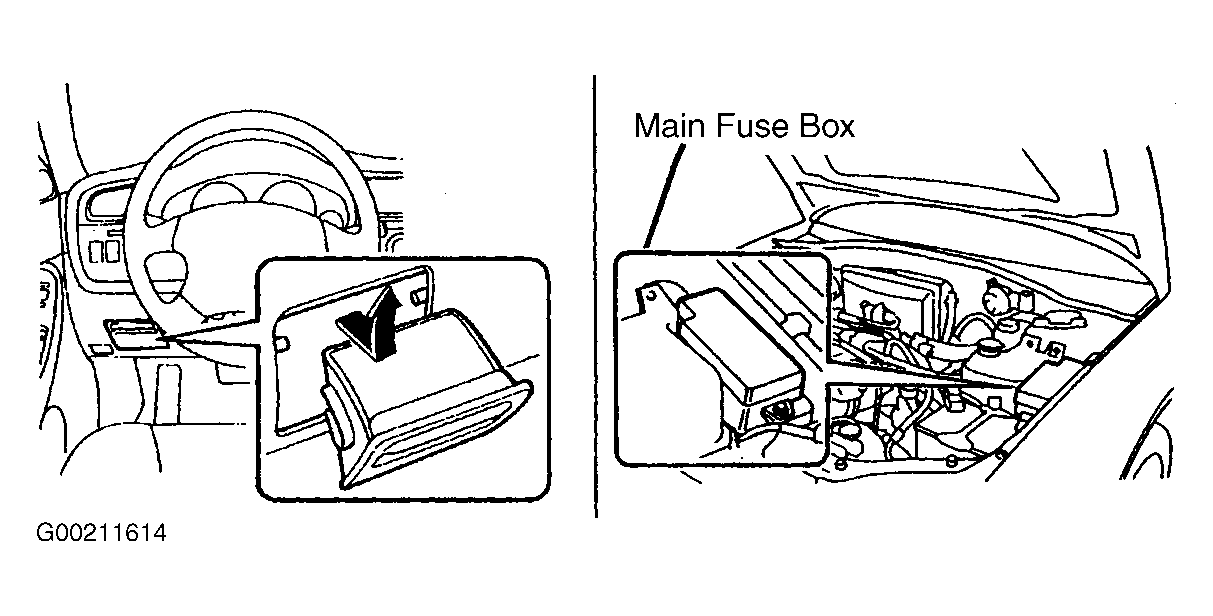

Under-dash fuse/relay box is located under instrument panel behind the coin tray on driver's side. See Fig 1
.

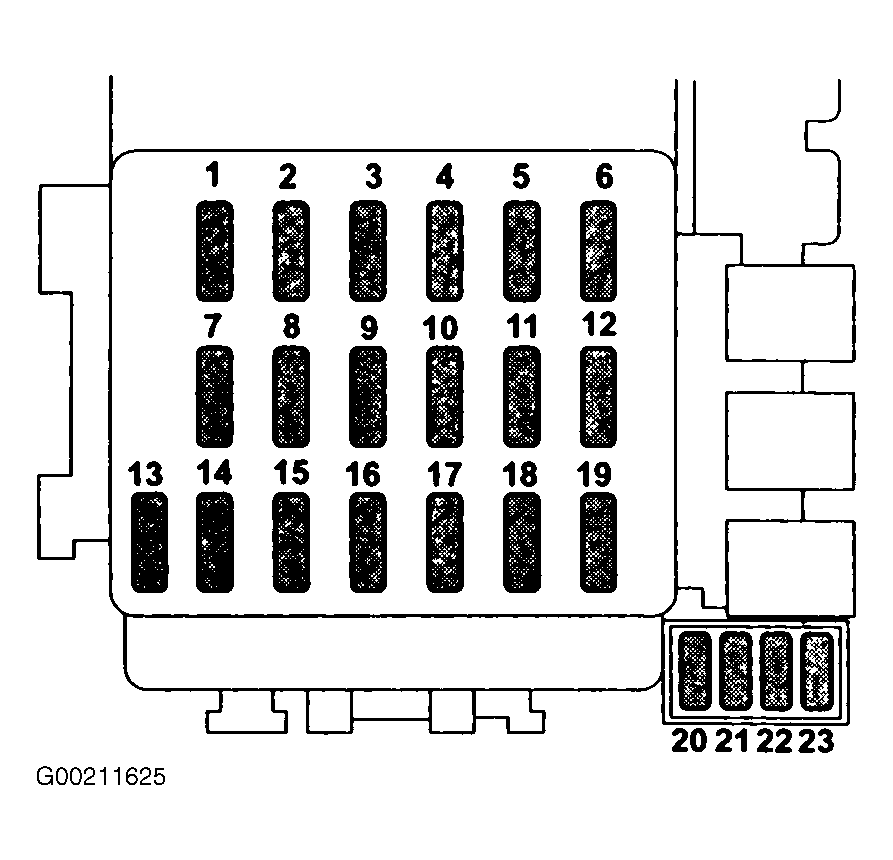

UNDER-DASH FUSE/RELAY BOX LEGEND
| Fuse No. | Fuse Rating | Circuit |
|---|---|---|
| 1 | 15A | Heater Fan |
| 2 | 15A | Heater Fan |
| 3 | 15A | Power Door Lock & Remote Keyless entry |
| 4 | 15A | Cigarette Lighter & Remote Controlled Rear View Mirrors |
| 5 | 10A | Tail Light & Parking Light |
| 6 | 15A | SRS Air Bag |
| 7 | 15A | Fog Light |
| 8 | 30A | ABS |
| 9 | 15A | Radio |
| 10 | N/A | N/A |
| 11 | 15A | Engine Ignition System, SRS Air Bag, & A/T Control System |
| 12 | 10A | Illumination Brightness Control |
| 13 | 20A | Wiper, Deicer |
| 14 | 10A | Meter |
| 15 | 30A | Windshield Wiper & Washer |
| 16 | 20A | Brake Light |
| 17 | 15A | Air Conditioner |
| 18 | 15A | Backup Light & Cruise Control |
| 19 | 15A | Power Outlet (cargo) |
| 20 | 10A | Rear Window Wiper & Washer |
| 21 | N/A | N/A |
| 22 | 15A | Seat Heater |
| 23 | N/A | N/A |
