Subaru
›
2004
›
Forester XT, Standard
›
Repair and Diagnosis
›
Engine Mechanical
›
Lubrication System
›
Lubrication (H4SO)
›
General Description
›
Component
›
Turbo Model
Turbo Model

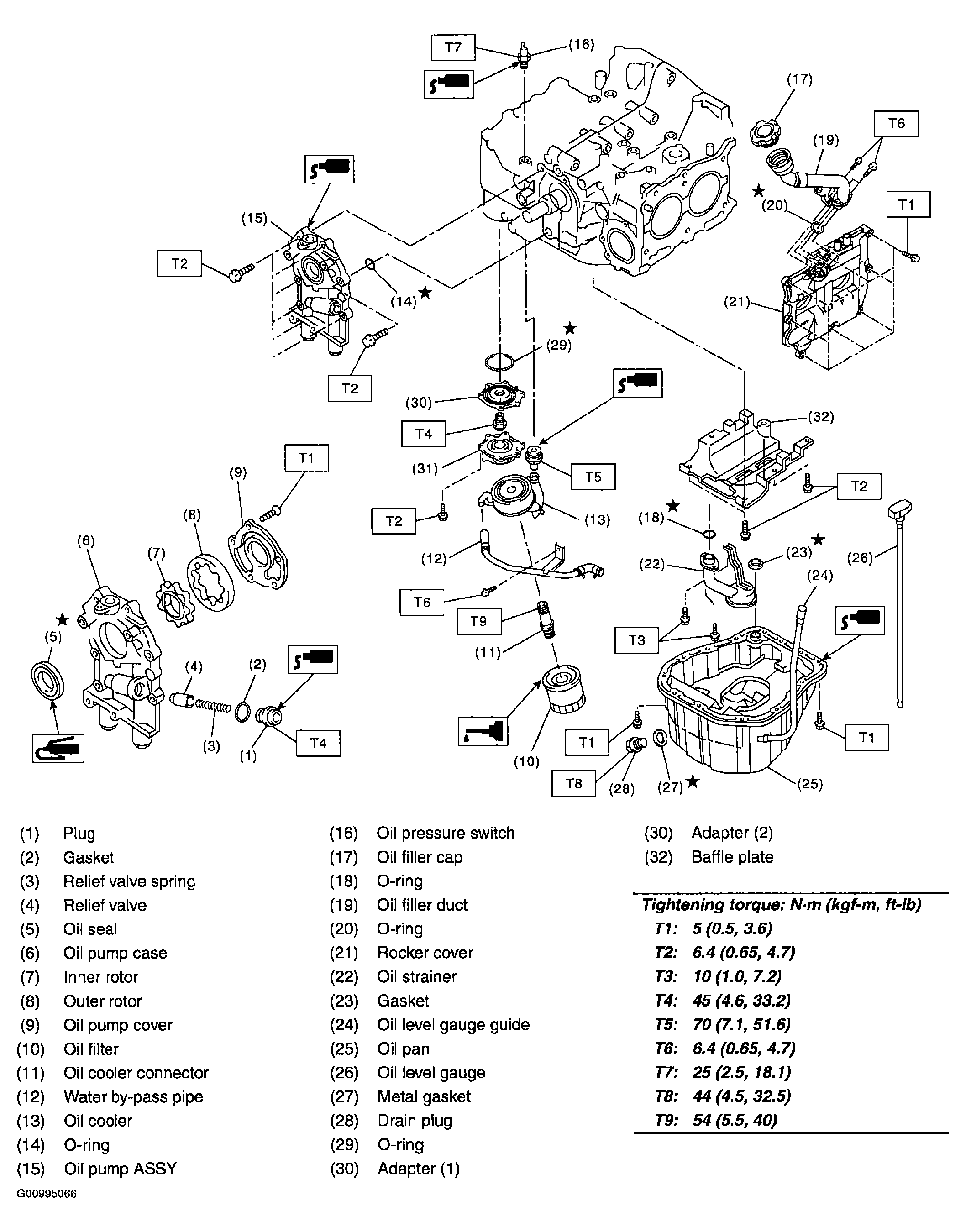

Fig 1: Turbo Model Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
