Propeller Shaft
WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

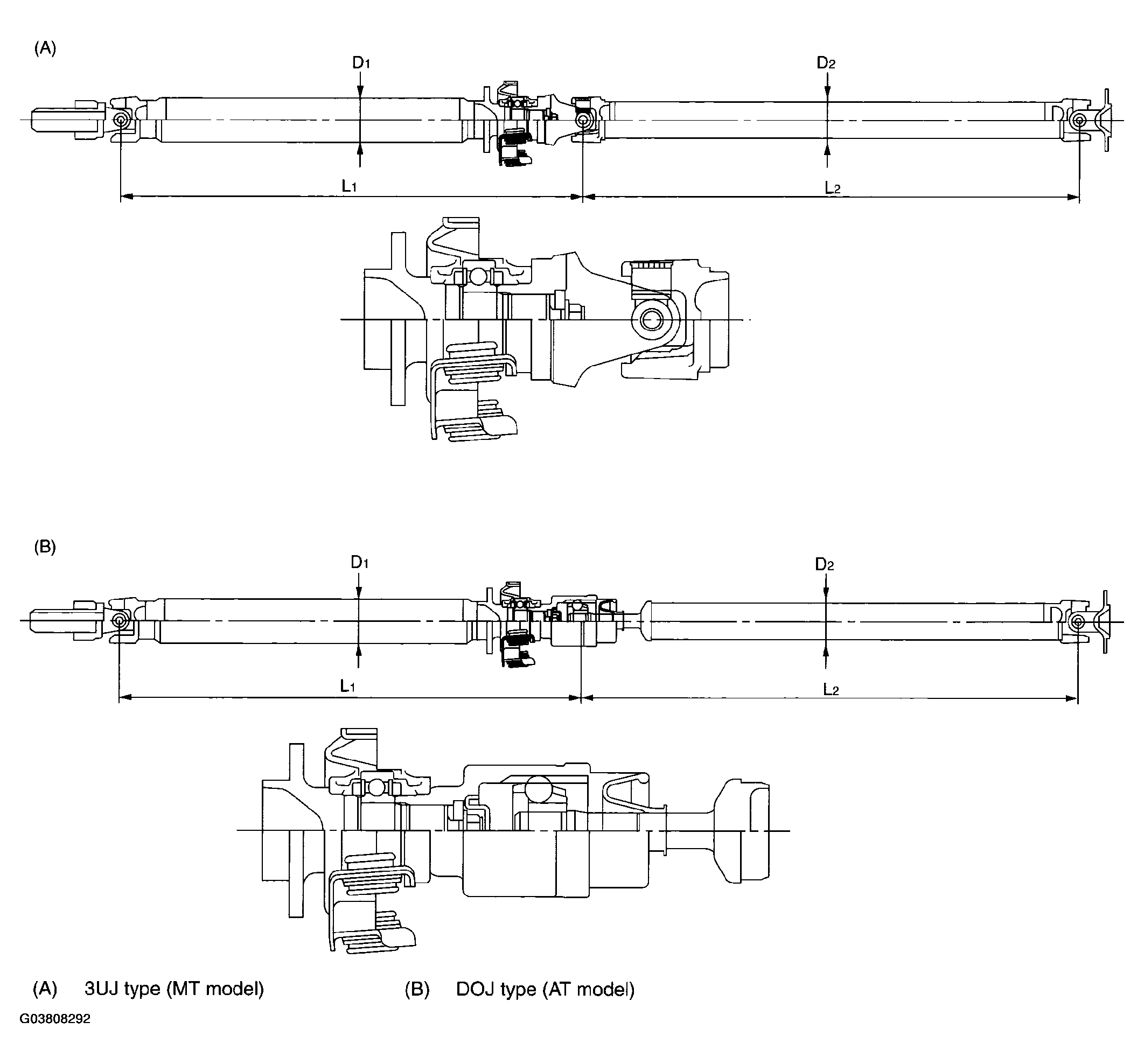

PROPELLER SHAFT SPECIFICATIONS
| Model |
AT |
MT |
| Propeller shaft type |
DOJ |
3UJ |
| Front propeller shaft Joint-to-joint length: L1 |
mm (in) |
580 (22.83) |
644 (25.35) |
| Rear propeller shaft Joint-to-joint length: L2 |
mm (in) |
712 (28.03) |
707 (27.83) |
| Outside diameter of tube: |
mm (in) |
D1 |
63.5 (2.500) |
| D2 |
57.0 (2.244) |
Courtesy of SUBARU OF AMERICA, INC.
