Airbag Control Module: Removal

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Do not disassemble the airbag control module.
  • If the airbag control module is deformed or if water damage is suspected, replace the airbag control module with a new genuine part.
  • Do not drop the airbag control module.
  • After removal, keep the airbag control module on a dry, clean surface away from moisture, heat, and dust.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground cable from battery, and wait for at least 20 seconds before starting work.
  3. Remove the console cover. < Ref. to REMOVAL , Console Box. >
  4. Remove the center console panel. < Ref. to REMOVAL , Instrument Panel Assembly. >
  5. Disconnect the connector from airbag control module.
  6. Remove the four bolts.

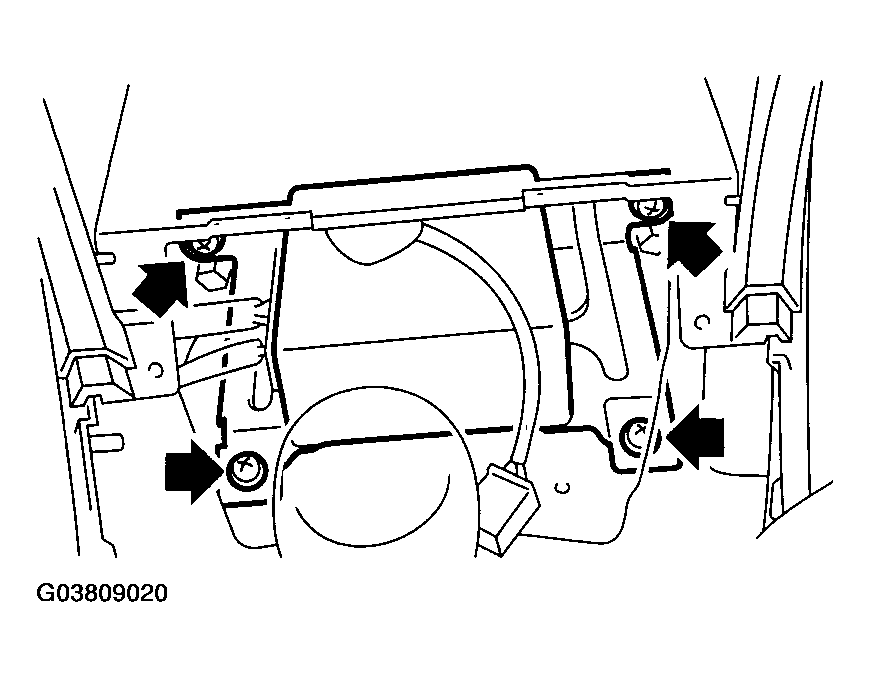

    Fig 1: Removing Four Bolts
    G03809020Courtesy of SUBARU OF AMERICA, INC.
