Front Sub Sensor: Removal

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to OFF.
Disconnect the ground cable from battery, and wait for at least 20 seconds before starting work.
Remove the front grille and front grille side. < Ref. to REMOVAL , Front Grille. >
Disconnect the connector from front sub sensor.

Fig 1: Disconnecting Connector From Front Sub Sensor
Courtesy of SUBARU OF AMERICA, INC.
Loosen the bolt, and then detach the front sub sensor.

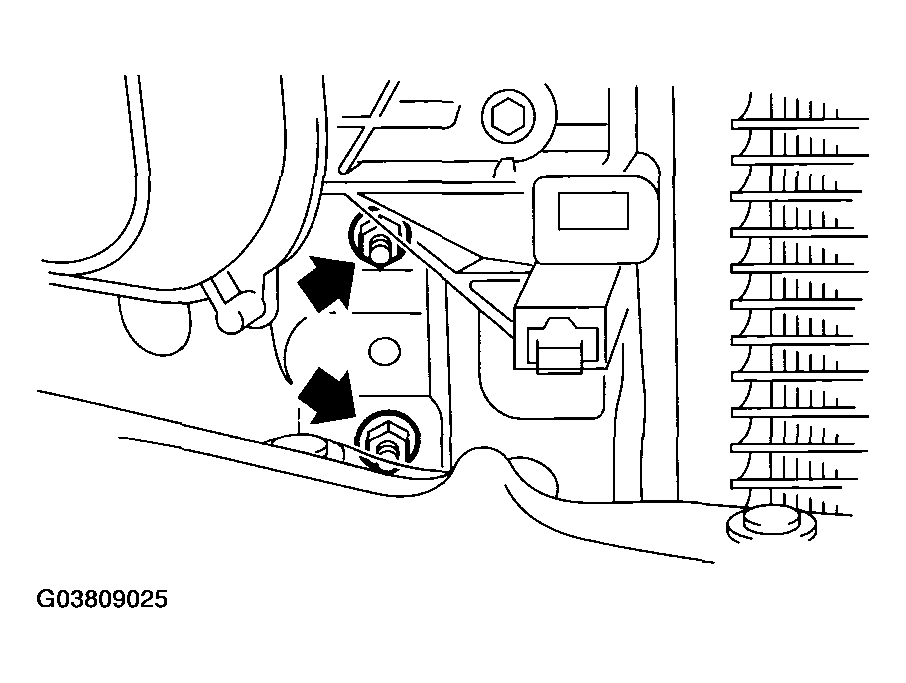

Fig 2: Loosening Bolt, And Detaching Front Sub Sensor
Courtesy of SUBARU OF AMERICA, INC.
